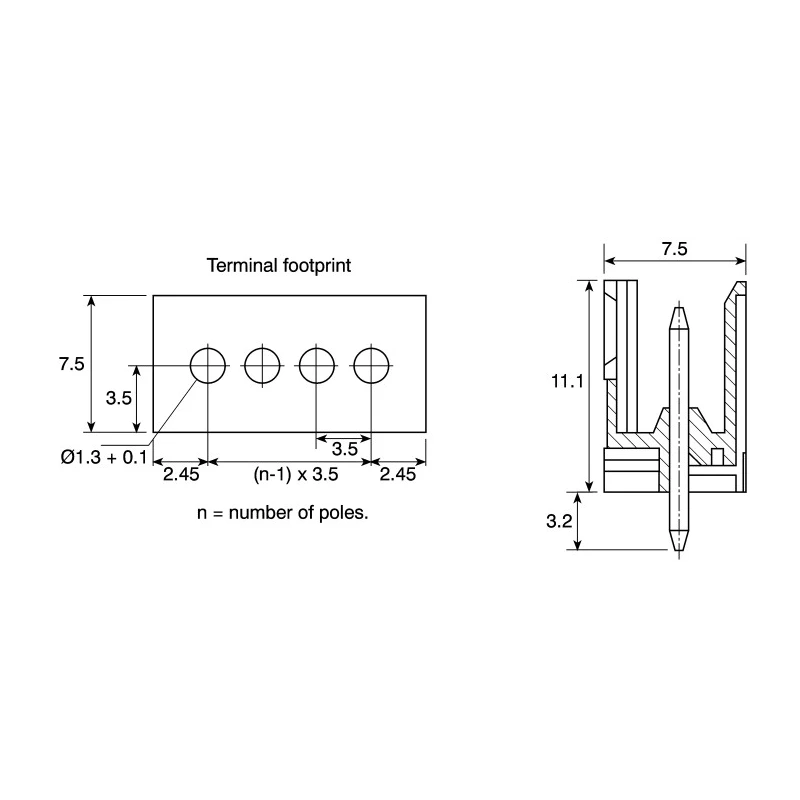

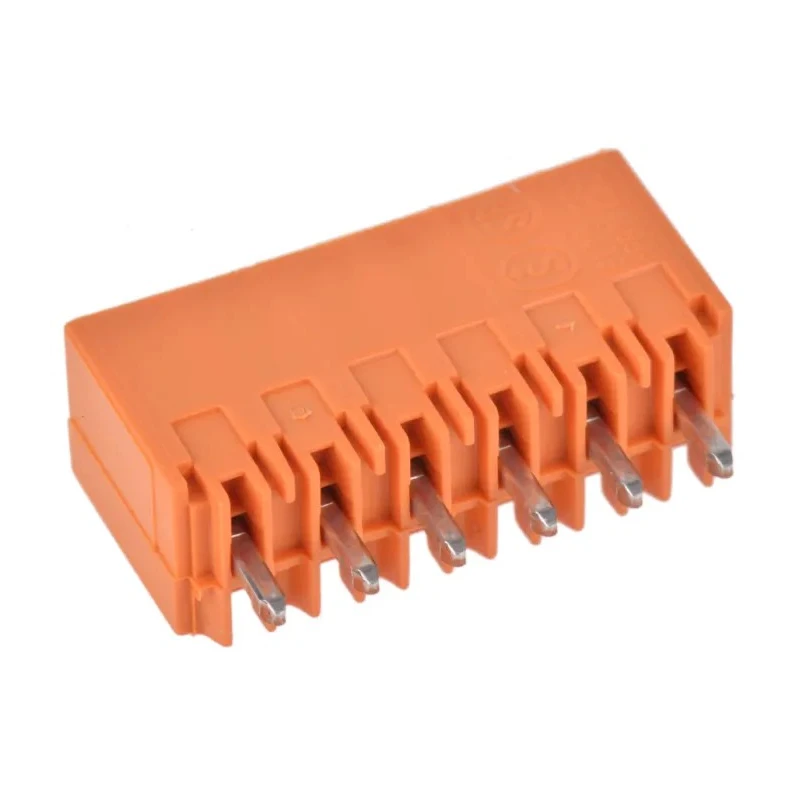

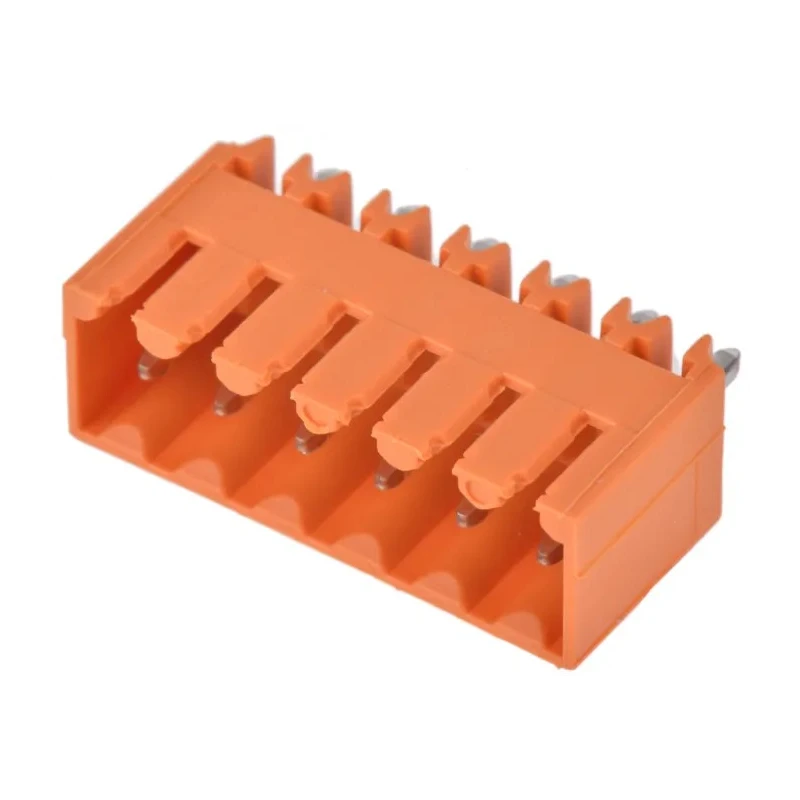

Weidmüller OMNIMATE SL Series 6-Contact Pluggable Terminal Block, 3.5 mm Pitch, 1 Row, 320V, 17A, Polybutylene 1604510000
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 320V |
| Brand | Weidmüller |
| Colour | Orange |
| Orientation | Straight |
| Current | 17A |
| Length | 3.2mm |
| Depth | 7.5mm |
| Width | 22.4mm |
| Housing Material | Polybutylene Terephthalate |
| Series | OMNIMATE SL |
| Number of Rows | 1 |
| Pitch | 3.5mm |
| Number of Contacts | 6 |
| Connector Gender | Male |
| Minimum Wire Size AWG | 28AWG |
| Maximum Wire Size AWG | 16AWG |
| Wire Connection Method | Solder |
Key Features
- Constructed with durable polybutylene terephthalate housing for reliability.
- Designed with straight male connector orientation for solder wire connection.
- Supports wire sizes from 28 AWG to 16 AWG.
- Compact dimensions with width 22.4 mm, depth 7.5 mm, and length 3.2 mm.
- Orange color coding for easy identification in assemblies.
- Flammability rating UL94 V-0 ensuring safety compliance.
- Manufactured in Germany assuring high quality standards.
- Part of the OMNIMATE SL series optimized for PCB applications.
Product Description
Weidmüller 1604510000 OMNIMATE SL Series Pluggable Terminal Block is a precision-engineered component offering 6 contacts with a 3.5 mm pitch arranged in a single row, rated for a maximum voltage of 320V and current of 17A. Its use of polybutylene terephthalate housing provides excellent durability and electrical insulation, ensuring reliable performance in demanding industrial and electronic applications.
This terminal block features a male connector with a straight orientation, designed specifically for solder wire connection, compatible with wire sizes ranging from 28 AWG to 16 AWG. The compact dimensions - 22.4 mm width, 7.5 mm depth, and 3.2 mm length - facilitate efficient PCB integration without occupying excessive space.
The terminal block’s bright orange color enhances visual identification within assemblies, helping technicians and engineers during installation and maintenance.
Certified with UL94 V-0 flammability standard, this component ensures fire safety in electronic enclosures. Manufactured in Germany, it meets stringent quality and manufacturing standards suitable for industrial, automation, telecommunications, and electronics manufacturing sectors.
Typical industrial applications include power and signal distribution in control cabinets, instrumentation, and embedded system designs. This product is part of the OMNIMATE SL series, known for its cost-effective, space-saving design compatible with vertical or horizontal headers that can be soldered directly onto PCBs. Polarizing pins prevent incorrect mating, enhancing system reliability in high-density electronics assemblies.
Constructed with durable polybutylene terephthalate housing for reliability. Designed with straight male connector orientation for solder wire connection. Supports wire sizes from 28 AWG to 16 AWG. Compact dimensions with width 22.4 mm, depth 7.5 mm, and length 3.2 mm.
Orange color coding for easy identification in assemblies. Flammability rating UL94 V-0 ensuring safety compliance. Manufactured in Germany assuring high quality standards. Part of the OMNIMATE SL series optimized for PCB applications.
Explore more high-quality Weidmüller Pluggable Terminal Blocks and related connectors at EnvMart to meet your electronic and electrical component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating of this terminal block is 320V.
This model has a current rating of 17A.
It supports wire sizes ranging from 28 AWG to 16 AWG.
The dimensions are 22.4 mm in width, 7.5 mm in depth, and 3.2 mm in length.
The housing is constructed from polybutylene terephthalate.
The connector orientation is straight, designed for solder wire connection.
This terminal block features 6 contacts.
The terminal block is orange in color, which aids in visual identification.
It is manufactured in Germany, ensuring high quality standards.
It has a flammability rating of UL94 V-0, ensuring safety compliance.
This terminal block is part of the OMNIMATE SL series, optimized for PCB applications.
Typical applications include power and signal distribution in control cabinets and instrumentation.
