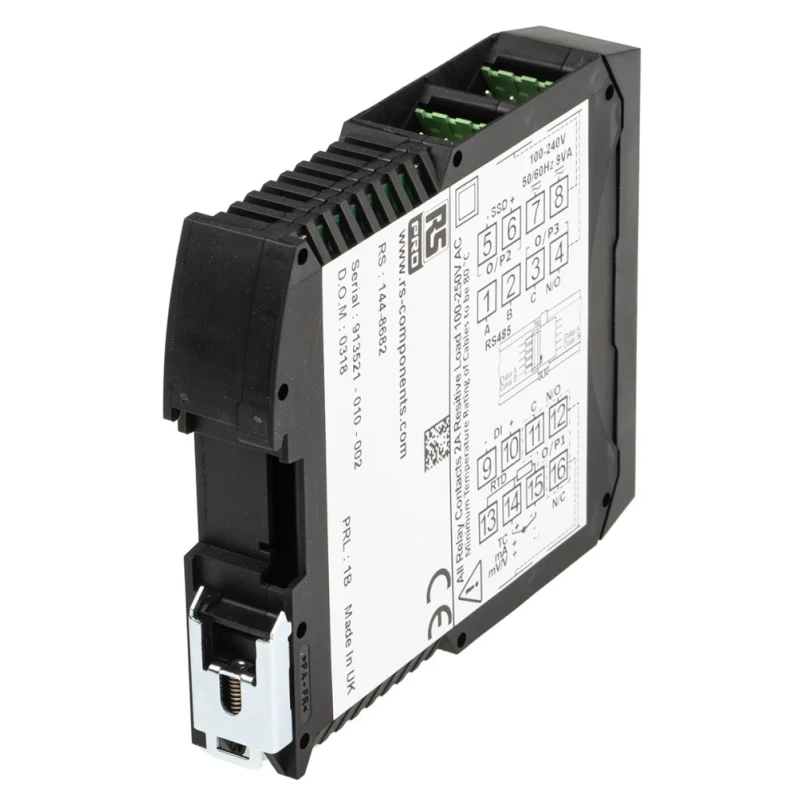

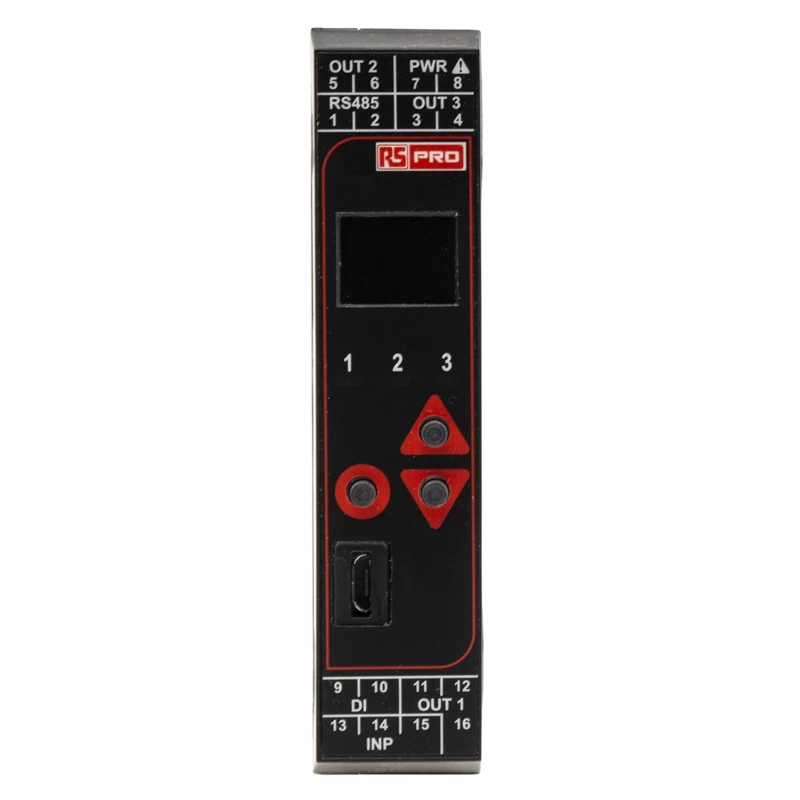

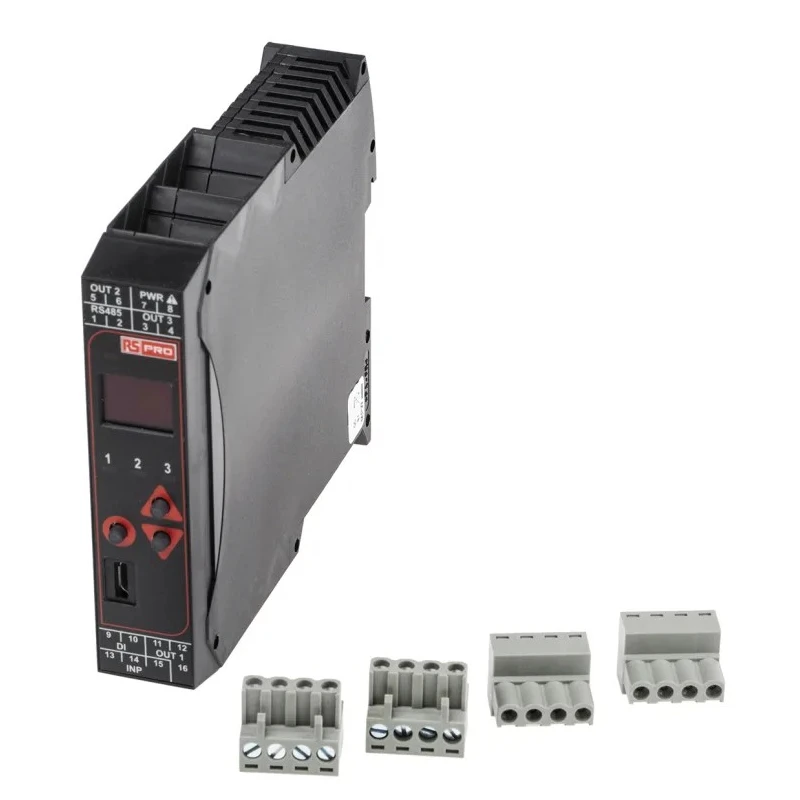

RS PRO DIN Rail PID Temperature Controller 1 Input, 3 Output Relay 24V AC OLED Display 123mm x 22.5mm 144-8682

Free Delivery in India | Lowest Global Shipping Charges

RS PRO DIN Rail PID Temperature Controller 1 Input, 3 Output Relay 24V AC OLED Display 123mm x 22.5mm 144-8682

Name: RS PRO DIN Rail PID Temperature Controller 1 Input, 3 Output Relay 24V AC OLED Display 123mm x 22.5mm 144-8682
Brand: RS PRO
SKU: 146893
Price: 522.42 USD
Availability: InStock



Category Temperature Controllers Brand RS PRO Condition New

Specifications

Country of Origin	United Kingdom
Display Type	OLED
Brand	RS PRO
Length	123mm
Model	144-8682
IP Rating	IP20
Width	22.5mm
Mount Type	DIN Rail
Number of inputs	1
Output type	Relay
Series	RS PRO
Input Type	DC Current, DC Voltage, RTD, Thermocouple
Maximum Operating Temperature	55°C
Control Type	PID Controller
Minimum Operating Temperature	0°C
Maximum Current	2A
Number of outputs	3
Terminal type	Screw
Maximum Voltage	250V
Standards/Approvals	CE, EN61010-1, EN61326, UL61010-1
Maximum Supply Voltage	24V ac
Digital Comms	RS485 Modbus RTU
Panel Depth	123mm

Key Features

Equipped with a user-friendly OLED display for clear and easy reading of parameters.
Operates at a supply voltage of 24V AC suitable for industrial environments.
Supports input types including DC current, DC voltage, RTD, and thermocouple sensors.
Features three relay outputs configurable as changeover relay, relay, or solid-state relay (SSR).
Mounts easily on a DIN rail with screw-type terminals for secure wiring.
Operating temperature range of 0°C to 55°C for versatile installation conditions.
Compact dimensions of 123mm length by 22.5mm width with a panel depth of 123mm.
Includes RS485 Modbus RTU digital communication for integration into automation systems.

Product Description

RS PRO 144-8682 DIN Rail PID Temperature Controller is designed for precise industrial temperature regulation with one input and three outputs. This controller supports multiple sensor inputs such as DC current, DC voltage, RTD, and thermocouples, enabling flexible use in varied process controls.

The device uses a PID control algorithm providing accurate and stable temperature control, ideal for automation applications. The clear OLED display facilitates easy monitoring and setting adjustments, ensuring operational transparency for engineers and technicians.

Installation is simplified by its DIN rail mounting and screw terminal type connections.

Operating safely within a temperature range of 0°C to 55°C, the unit is robust for most indoor industrial environments. Its IP20 rating provides protection against solid intrusion while maintaining ventilation.

Equipped with three configurable relay outputs supporting changeover relay, relay, and SSR types for versatile load control. Includes RS485 Modbus RTU communication protocol for easy integration into industrial control networks.

Compact form factor measuring 123mm length, 22.5mm width, and 123mm panel depth, saving panel space. Complies with international safety standards CE, EN61010-1, EN61326, and UL61010-1 assuring quality and reliability. Designed and manufactured in the United Kingdom, reflecting adherence to stringent quality processes.

This PID temperature controller is widely used in industrial automation, manufacturing, HVAC systems, and laboratory applications where precise temperature control is required. Explore the extensive range of Temperature Controllers and automation components available at EnvMart for optimized industrial process control.
