Schurter 12.5A Time Delay Ceramic Cartridge Fuse 6.3 x 32 mm 500V AC SHT 6.3x32 8020.5022.G

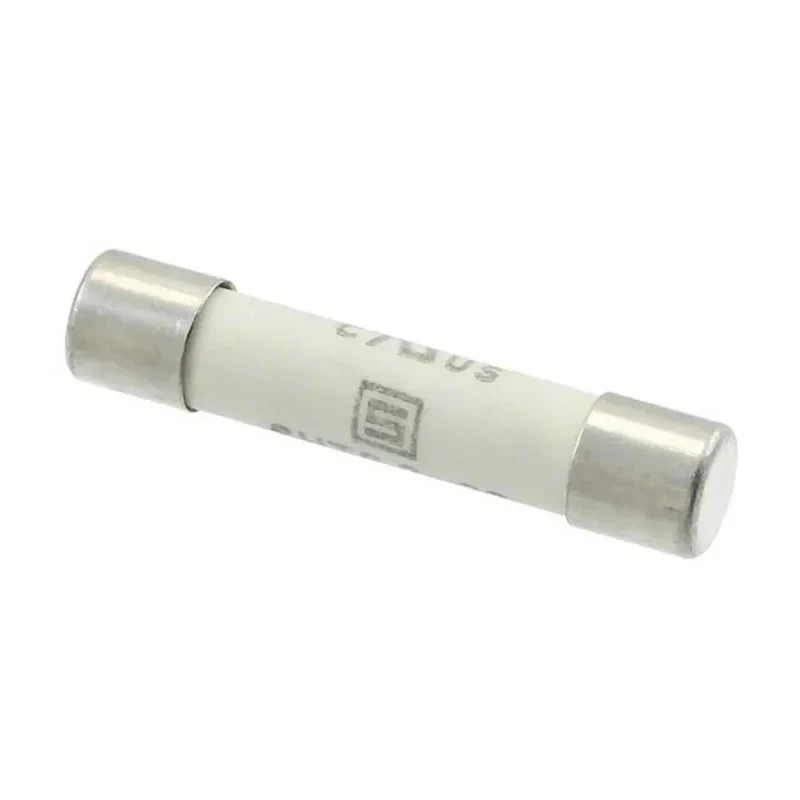

Name: Schurter 12.5A Time Delay Ceramic Cartridge Fuse 6.3 x 32 mm 500V AC SHT 6.3x32 8020.5022.G
Brand: Schurter
SKU: 146407
Price: 768.84 USD
Availability: InStock



Category Cartridge Fuse Brand Schurter Condition New

Specifications

Country of Origin	China
Voltage	500V ac
Diameter	6.3mm
Brand	Schurter
Body Material	Ceramic
Model	8020.5022.G
Overall Length	32mm
Current Rating	12.5A
Series	SHT 6.3x32
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS, UKCA, CE, cURus, UL
Fuse Characteristics	Time Delay
Fuse Size	6.3 x 32 mm
UL File Number	E41599
Approval Reference Type	SHT 6.3x32

Key Features

Rated for 500V AC voltage operation.
Fuse size of 6.3 x 32 mm suitable for standard cartridge fuse holders.
Ceramic body material allows high breaking capacity and thermal resistance.
Operating temperature range from -40°C to 85°C ensures performance in diverse environments.
Complies with multiple international standards including RoHS, UKCA, CE, cURus, and UL certifications.
Applicable in 3-phase systems, DC applications, photovoltaics, frequency converters, and power electronics.
Part of SHT 6.3x32 series with a diameter of 6.3 mm and overall length of 32 mm.
High breaking capacity up to 1500A provides robust safety for electrical installations.

Product Description

Schurter 8020.5022.G is a 12.5A time delay ceramic cartridge fuse with a standard 6.3 x 32 mm size designed for primary circuit protection in industrial and commercial electrical applications.

This fuse features a ceramic body that enhances durability and safety, supporting high breaking capacities up to 1500 amps at voltages up to 500V AC and 400V DC. The fuse operates effectively within a temperature range of -40°C to 85°C, making it suitable for harsh environmental conditions.

It meets stringent standards including RoHS, UKCA, CE, cURus, and UL certifications, confirming its compliance and safety for use in global markets.

Common uses include protection in 3-phase electrical systems, DC circuits, photovoltaic installations, frequency converters, and power electronic devices, ensuring reliable operation and circuit safety.

Rated for 12.5A current and time delay operation to handle transient surges. Compact 6.3 x 32 mm fuse size fits industry-standard holders. Ceramic construction provides excellent thermal and mechanical resistance. High breaking capacity rated up to 1500 amps for robust circuit interruption.

Wide operating temperature range from -40°C minimum to 85°C maximum. Conforms to international safety and environmental standards. Designed for a broad range of industrial and renewable energy applications. Part of the Schurter SHT 6.3x32 series, compliant with UL File Number E41599.

This ceramic cartridge fuse optimizes circuit protection for industrial, electrical control, HVAC, laboratory setups, and renewable energy sectors. Its proven durability and reliability help safeguard sensitive equipment and maintain system integrity.

EnvMart offers the Schurter 12.5A T Ceramic Cartridge Fuse 8020.5022.G for professional users demanding high-quality and standards-compliant protective components.
