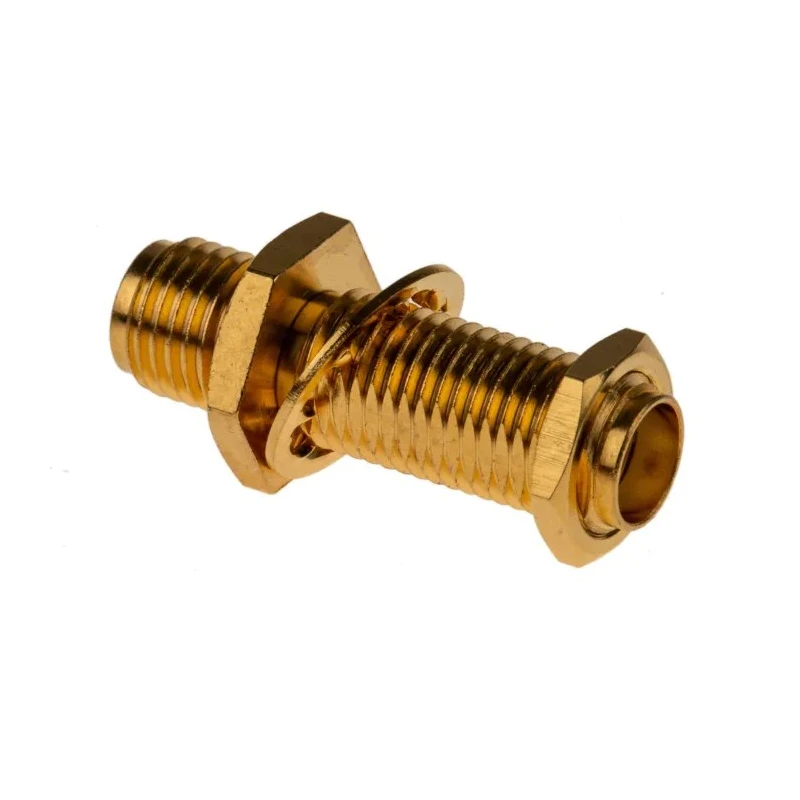

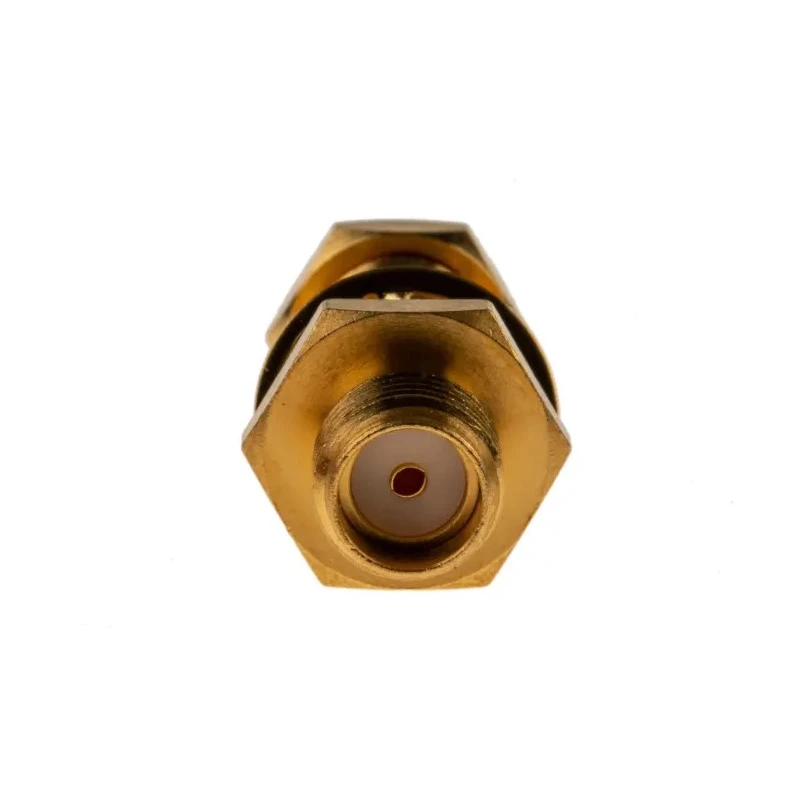

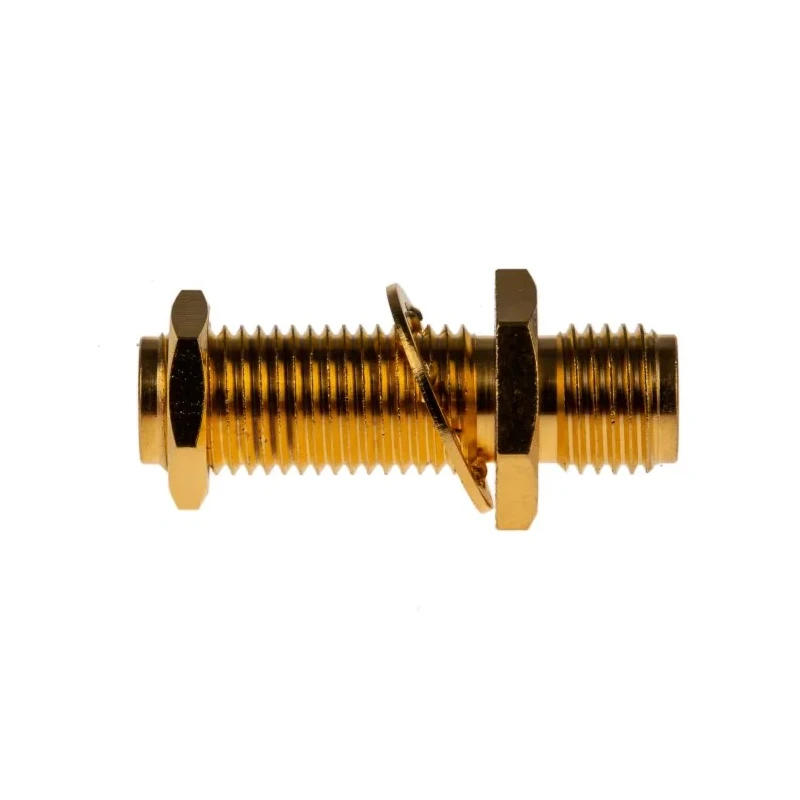

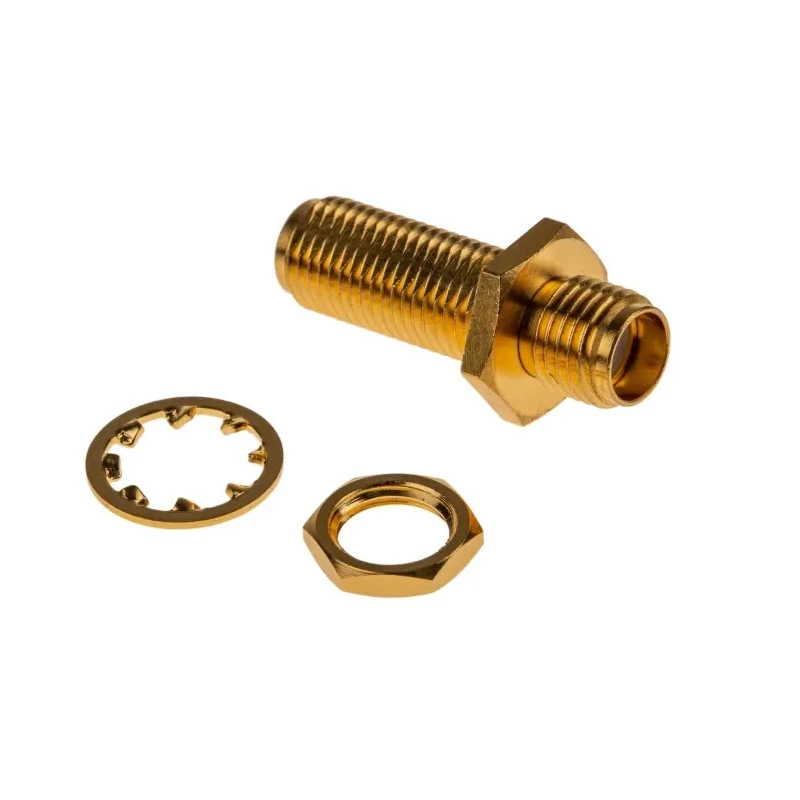

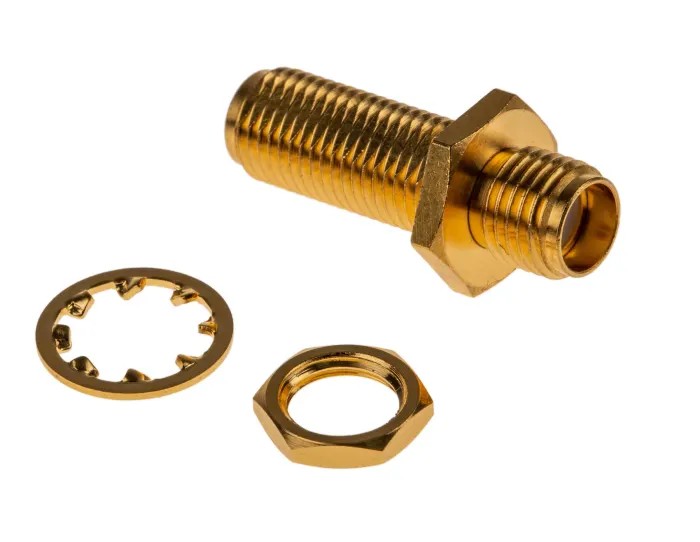

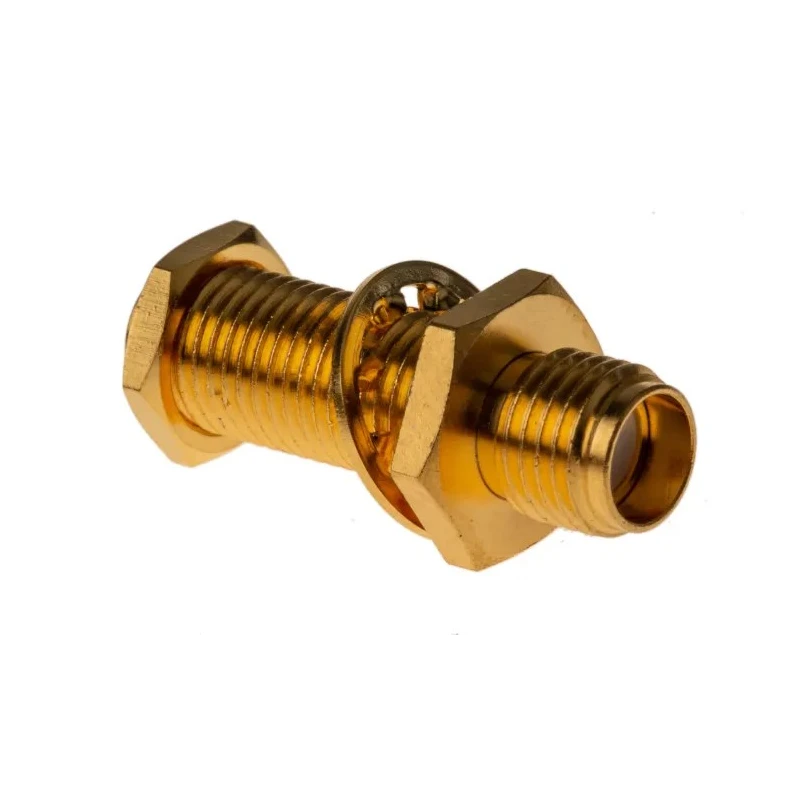

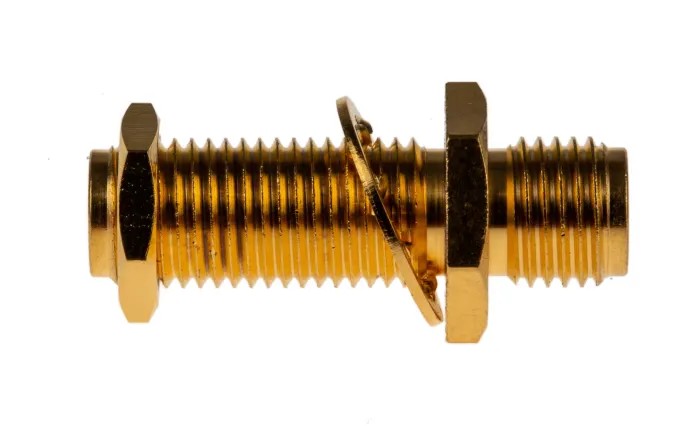

Amphenol RF SMA Series Coaxial Connector Panel Mount Female SMA, 50 Ω, Straight Body Solder 132170
Specifications
| Country of Origin | India |
|---|---|
| Size | Miniature |
| Brand | Amphenol RF |
| Orientation | Straight |
| Model | 132170 |
| Mount Type | Panel Mount |
| Operating Frequency | 18GHz |
| Contact Material | Beryllium Copper |
| Series | SMA |
| Termination Type | Solder |
| Maximum Operating Temperature | 165°C |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | SMA |
| Body Plating | Gold |
Key Features
- Operates reliably up to 18 GHz frequency for broadband applications.
- Features a miniature size ideal for compact electronic assemblies.
- Gold-plated body and contacts ensure high corrosion resistance and conductivity.
- Constructed with beryllium copper contact material for durability and low signal loss.
- Supports panel mount with bulkhead design for secure mounting.
- Operates between -65°C and 165°C to suit demanding environments.
- Solder termination type provides secure and stable cable connection.
- Maintains normal polarity and female connector gender for compatibility.
Product Description
Amphenol RF 132170 SMA Series Coaxial Connector is a high-performance panel mount female SMA coaxial connector designed for demanding industrial and electronic applications. It offers a constant 50 ohm impedance and supports frequencies up to 18 GHz, providing excellent broadband performance with low reflection and minimal VSWR (Voltage Standing Wave Ratio).
The connector features a miniature, straight body design suitable for compact installations with panel bulkhead mount requirements. Its gold-plated body and contacts ensure excellent corrosion resistance and electrical conductivity, while the beryllium copper contact material delivers superior durability and performance over extended usage.
Engineered for reliability, this SMA connector operates across a broad temperature range from -65°C to 165°C, making it applicable in temperature-sensitive and industrial environments. The solder termination provides a robust and stable electrical connection.
Key characteristics include normal polarity female connector gender, mature design principles, and adherence to quality assurance standards, establishing it as a preferred choice for RF coaxial applications. It is widely used in telecommunications, test and measurement equipment, aerospace, and other industrial fields requiring reliable, high-frequency connectivity.
Operates reliably up to 18 GHz frequency for broadband applications. Features a miniature size ideal for compact electronic assemblies. Gold-plated body and contacts ensure high corrosion resistance and conductivity. Constructed with beryllium copper contact material for durability and low signal loss.
Supports panel mount with bulkhead design for secure mounting. Operates between -65°C and 165°C to suit demanding environments. Solder termination type provides secure and stable cable connection. Maintains normal polarity and female connector gender for compatibility.
This Amphenol RF SMA Series coaxial connector is suitable for industrial, telecommunications, laboratory, and aerospace applications where consistent high-frequency signal integrity is critical. Browse more Coaxial Connectors and RF components in the Electronics & Electricals category on EnvMart for complementary products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This SMA connector operates reliably up to 18 GHz, making it suitable for broadband applications.
The connector has a constant impedance of 50 ohms, which is standard for RF applications.
It operates effectively between -65°C and 165°C, accommodating demanding environmental conditions.
This model features a solder termination type, providing a secure and stable cable connection.
The connector is constructed with beryllium copper for the contacts and has a gold-plated body and contacts for enhanced corrosion resistance and conductivity.
It has a straight body orientation, which is ideal for compact installations.
It supports panel mount with a bulkhead design, ensuring secure mounting in various applications.
This model maintains a female connector gender, which is compatible with standard RF applications.
The connector is classified as miniature, making it suitable for compact electronic assemblies.
It is widely used in telecommunications, test and measurement equipment, aerospace, and other industrial fields requiring reliable, high-frequency connectivity.
The gold plating on the body and contacts ensures high corrosion resistance and excellent electrical conductivity.
The Amphenol RF SMA Series connector is manufactured in India.
