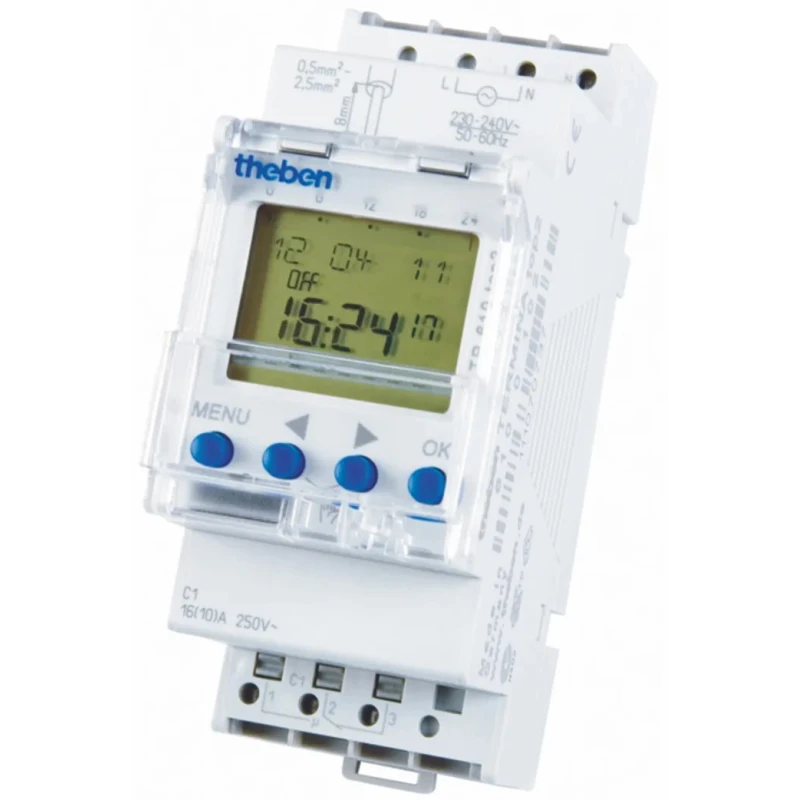

Theben Digital DIN Rail Time Switch 1 Channel 120V AC with SPDT Contact Configuration TR610

Theben TR610 digital DIN Rail Time Switch is a highly reliable timer designed for industrial and commercial automation requiring accurate weekly scheduling. Operating at 120V AC, it features one channel with Single Pole Double Throw (SPDT) contact configuration for diverse switching needs. The timer offers extensive programming options with 56 memory spaces and 2 insertable switching programs, which can be copied and stored via an OBELISK top2 memory card interface.

This device includes user-friendly text-oriented guidance on its display, enabling presetting date and time and operation without mains power, thanks to a 10-year lithium battery backup. The DuoFix spring terminal technology allows secure connection of two conductors per terminal, ensuring stable installation.

Additional functions include permanent switching ON/OFF, switching preselection, and zero-cross switching to extend relay life and handle high lamp loads. The built-in operating hour counter with reset functionality assists in monitoring maintenance intervals efficiently. The TR610 also features holiday program settings and pin code security to restrict unauthorized changes.

Automatic summer/winter time changeover is included with multiple regional date rules preprogrammed, alongside options for custom data rule settings or changeover around specific dates. The compact dimensions of 90.1mm height and 69.2mm depth enable mounting on standard DIN rails, making it suitable for electrical cabinets in industrial, manufacturing, HVAC, and commercial environments.

Constructed to comply with EN 60 730-1, VDE, and RoHS standards, this Time Switch ensures quality and safety for professional applications. Theben’s TR610 series supports programmable, energy-saving automation for lighting, heating, ventilation, and process control systems. Its German origin underlines its engineering precision and durability.

Provides weekly programming with 56 memory spaces for flexible time management. Operates fully without mains connection using a 10-year lithium battery power reserve. Features an SPDT contact configuration for versatile switching applications.

Includes a text-oriented display with preset date and time for ease of use. DuoFix spring terminals support wiring of two conductors each for secure installation. Automatic summer/winter time changeover with option to deactivate.

Integrated operating hour counter aids in maintenance scheduling and service monitoring. Supports holiday program and PIN coding for enhanced control and security. Compact dimensions of 90.1mm height and 69.2mm depth fit standard DIN rails.

Explore Theben digital timers and other automation components on EnvMart for robust and precise industrial control solutions.
