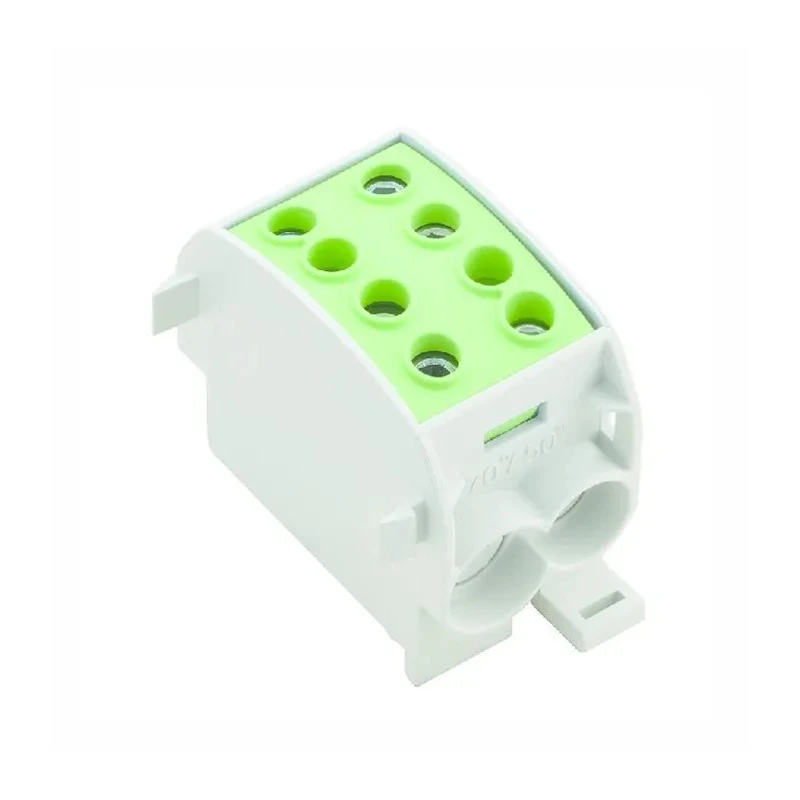

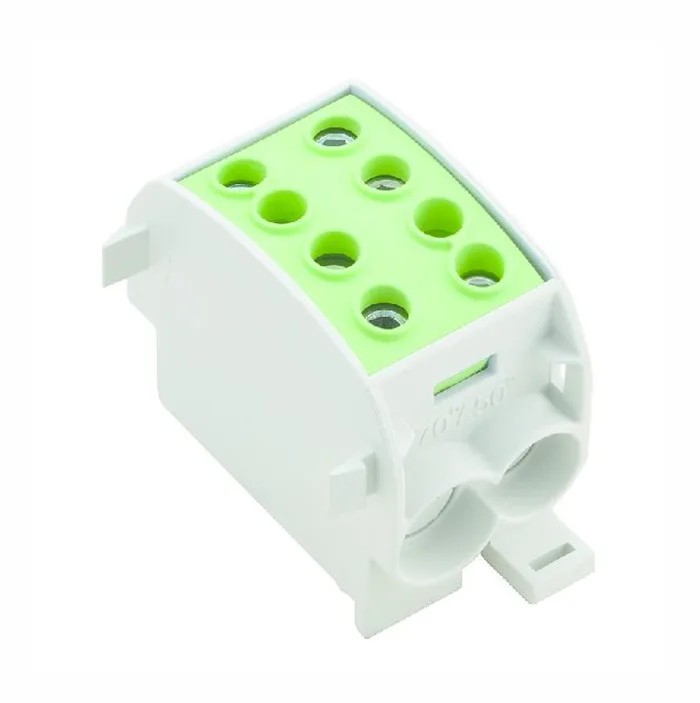

Weidmüller Distribution Block 2 Way, 1 kV AC, 1 kV DC, 300 A, Green 1561790000
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 1, 1kV ac |
| Brand | Weidmüller |
| Colour | Green |
| Current | 300A |
| Height | 63mm |
| Length | 32.9mm |
| Number Of Ways | 2 |
| Width | 53.1mm |
| Housing Material | Wemid |
| Series | W |
| Maximum Operating Temperature | 130°C |
| Minimum Operating Temperature | -50°C |
| Termination Type - Line Side | Screw |
| Wire Size - Line Side | 8 AWG |
Key Features
- Constructed with Wemid housing material for reliability and safety.
- Suitable for wire size up to 8 AWG on the line side.
- Screw termination type on both line and load sides ensures secure connections.
- Operates reliably in temperatures ranging from -50°C to 130°C.
- Designed for mounting on Top Hat DIN Rail (BS5584/EN 50022) with touch-proof terminals.
- Current bars made of 10 mm electrolytic copper to support currents exceeding nominal rating.
- Self-extinguishing to UL94V-0 standards, free from cadmium and halogen materials.
Product Description
Weidmüller 1561790000 distribution block is a 2-way electrical component designed to safely distribute power with a voltage rating of 1 kV AC and 1 kV DC and a current capacity of 300 A. Its green Wemid housing offers increased safety and performance for industrial electrical installations.
The block supports wire sizes up to 8 AWG on the line side and uses screw connection terminations on both line and load sides, providing secure and reliable electrical contacts. It operates efficiently across a wide temperature range from -50°C up to 130°C, suitable for harsh industrial environments.
This distribution block is compact with dimensions of 63 mm in height, 32.9 mm in length, and 53.1 mm in width, making it suitable for mounting on standard Top Hat DIN rails according to BS5584:1978 and EN 50022 standards. The terminals are touch-proof per BS 3042 for operator safety.
The W series Distribution Blocks feature current bars made of 10 mm electrolytic copper, enabling current loading beyond nominal values to ensure performance under demanding electrical loads. The housing material is constructed from nylon 6.6 (Wemid) with a continuous temperature rating of 120°C and short-term capability of up to 180°C. It meets UL94V-0 fire safety standards and is free of environmentally harmful cadmium and halogen components.
Durable Wemid nylon 6.6 housing ensuring safety and performance. Suitable for 2-way power distribution applications. High current capacity of 300 A with robust electrolytic copper bars. Compliant with international standards for DIN rail mounting and operator protection.
Operates reliably in industrial environments with wide temperature tolerance. Green color coding helps in easy identification and system organization. Ideal for use in electrical power distribution, industrial control panels, and automation systems.
This product is made in Germany, reflecting high quality and manufacturing standards.
EnvMart offers this Weidmüller distribution block among other electrical components suitable for industrial, laboratory, manufacturing, and construction applications. Browse our wide selection of power connectors and terminal blocks for a complete solution to your electrical assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The distribution block has a voltage rating of 1 kV AC and 1 kV DC.
It has a current capacity of 300 A, allowing it to handle substantial electrical loads.
This unit supports wire sizes up to 8 AWG on the line side.
The distribution block uses screw termination types on both the line and load sides, ensuring secure connections.
It measures 63 mm in height, 32.9 mm in length, and 53.1 mm in width.
It operates reliably in temperatures ranging from -50°C to 130°C.
The housing is constructed from Wemid, a type of nylon 6.6, which provides reliability and safety.
Yes, it is designed for mounting on Top Hat DIN Rail according to BS5584/EN 50022 standards.
It meets UL94V-0 fire safety standards and is free from cadmium and halogen materials.
This product is made in Germany, reflecting high quality and manufacturing standards.
It is suitable for electrical power distribution, industrial control panels, and automation systems.
This model belongs to the W series of distribution blocks.
