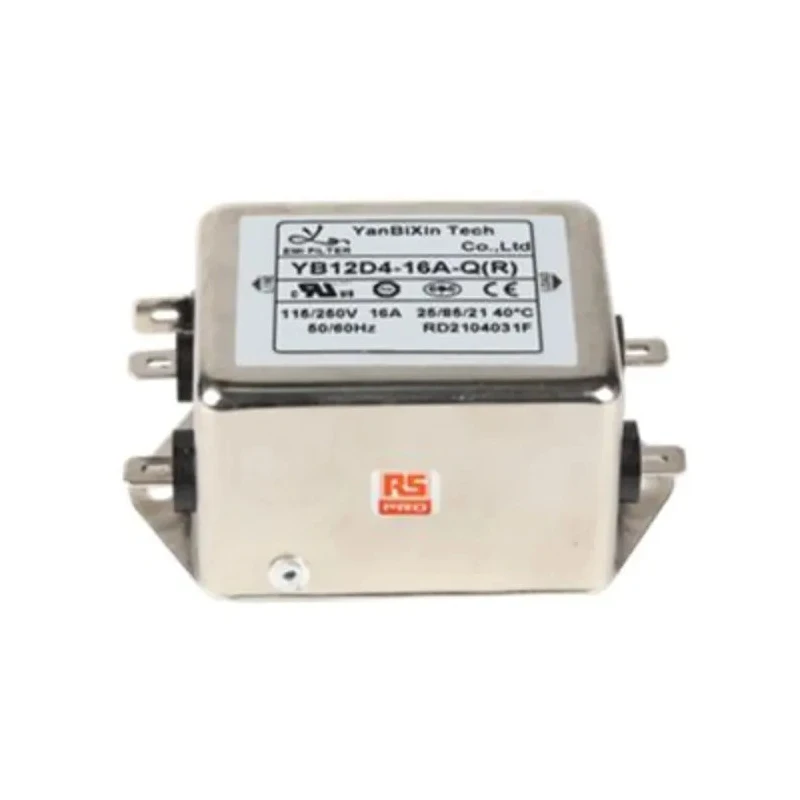

RS PRO 16 A 250V AC 50Hz 60Hz Chassis Mount Power Line Filter Fast-On 1 Phase 237-8689
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Height | 38mm |
| Length | 85mm |
| Model | 237-8689 |
| Depth | 51mm |
| Mount Type | Chassis Mount |
| Operating Frequency | 50, 60Hz |
| Maximum Operating Temperature | 85°C |
| Number Of Stages | 1 |
| Resistance | 1mΩ |
| Capacitance | 0.1μF |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 16A |
| Number of Phases | 1 |
| Leakage Current | 800μA |
| Maximum Voltage | 250V ac |
| Inductance | 21.2mH |
| Standards/Approvals | UL1283 |
| Termination Style | Fast-On |
Key Features
- This chassis mount filter effectively reduces external radio frequency interference to protect electrical devices.
- It features a Fast-On termination style for easy and secure connection.
- The filter operates reliably from a minimum temperature of -25°C to a maximum of 85°C.
- It has an inductance of 21.2 mH and capacitance of 0.1 μF for efficient filtering.
- The compact design measures 85 mm in length, 51 mm in depth, and 38 mm in height.
- The filter complies with UL1283 safety standards and offers a leakage current of 800 μA.
- Resistance is low at 1 mΩ to ensure minimal power loss during operation.
- This product is manufactured in China and designed for one-phase power lines with a single filter stage.
Product Description
RS PRO 237-8689 is a chassis mount power line filter designed for 16 A maximum current and 250 V AC operation across 50 Hz and 60 Hz frequencies. It features a Fast-On termination style suitable for fast and reliable connections in one-phase electrical systems.
This filter effectively reduces conducted radio frequency interference (RFI) between connected equipment and the power line, protecting sensitive electronics from damage and performance issues caused by electromagnetic interference. It also guards against transient voltage spikes resulting from power disturbances such as outages, short circuits, or lightning strikes, thus prolonging device life.
The compact and robust design measures 85 mm length, 51 mm depth, and 38 mm height, making it an ideal fit for small to medium-sized machines and household equipment requiring EMI suppression.
Technical specifications include an inductance of 21.2 mH, capacitance of 0.1 μF, leakage current of 800 μA, and resistance of 1 mΩ. It supports operation within temperatures ranging from -25°C to 85°C. The filter stage count is one, designed for single-phase power lines.
The product complies with UL1283 standards, ensuring safety and performance reliability. It is manufactured in China and represents a high-quality choice for industrial, laboratory, medical, HVAC, manufacturing, and commercial applications where electromagnetic compatibility (EMC) is critical.
This chassis mount power line filter reduces external electromagnetic interference effectively. Designed for 16 A current and 250 V AC voltage operation. Compact size supports installation in limited spaces. Fast-On termination enables quick connection.
Operating temperature range from -25°C to 85°C ensures versatility. Compliance with UL1283 standard assures safety and quality. Leakage current kept low at 800 μA for efficient performance. Suitable for sensitive medical and industrial electronic equipment protection.
Explore the full range of Power Line Filters on EnvMart for trusted quality and performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this power line filter is 16 A.
This model operates at a maximum voltage of 250 V AC.
It operates at frequencies of 50 Hz and 60 Hz.
The dimensions of this chassis mount filter are 85 mm in length, 51 mm in depth, and 38 mm in height.
It features a Fast-On termination style for easy and secure connections.
The inductance value of this filter is 21.2 mH.
The capacitance of this model is 0.1 μF.
This filter operates within a temperature range of -25°C to 85°C.
The leakage current rating is 800 μA.
This filter complies with UL1283 safety standards.
The resistance of this filter is 1 mΩ.
This power line filter has one stage designed for single-phase power lines.
