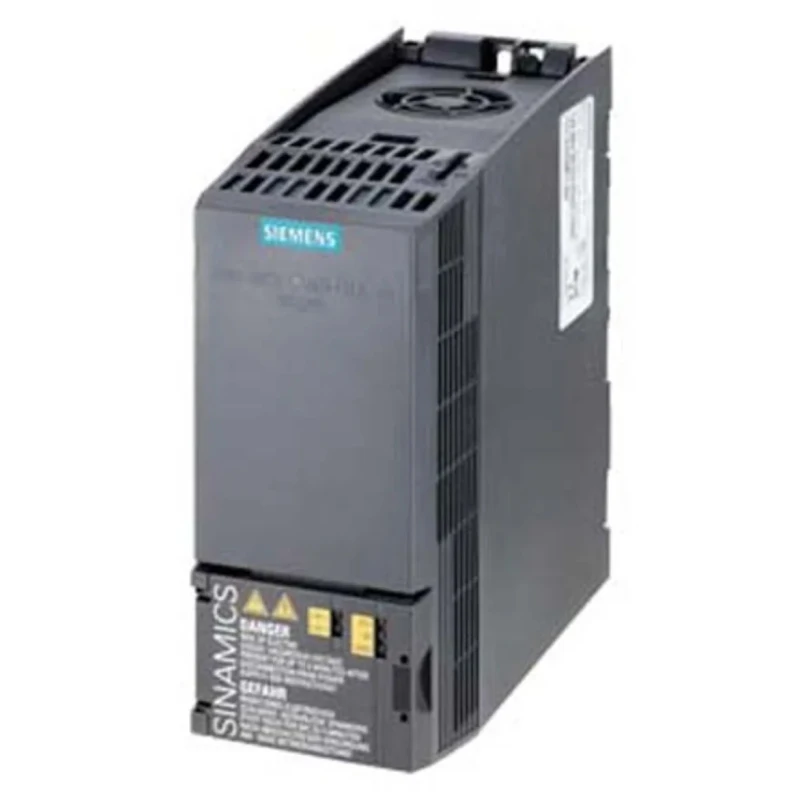

Siemens SINAMICS G120C Series Inverter Drive 550 W 3 Phase 400V AC Vector Control 6SL3210-1KE12-3AB2
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Siemens |
| Model | 6SL3210-1KE12-3AB2 |
| IP Rating | IP20 |
| Drive Type | Vector Control |
| Mount Type | Wall |
| Overall Length | 73mm |
| Series | SINAMICS G120C |
| Overall Width | 155mm |
| Power Rating | 550W |
| Maximum Operating Temperature | 40°C |
| Minimum Operating Temperature | -10°C |
| Interfaces | USB connection |
| Number of Phases | 3 |
| Maximum Output Current | 2.9A |
| Standards/Approvals | CE, C-Tick (RCM), cUL, EMC Directive 2004/108/EC, Low Voltage Directive 2006/95/EC, UL |
| Overall Depth | 173mm |
| Minimum Supply Voltage | 400V ac |
| Better World Claim | Saves Energy |
| Compatible Motor Type | Asynchronous Motor |
Key Features
- Compact SINAMICS G120C series suitable for diverse automation applications.
- Maximum output current of 2.9 A for asynchronous motor compatibility.
- Wall mount type with IP20 protection rating ensures robust installation.
- Wide operating temperature range from -10°C to 40°C for industrial environments.
- Equipped with USB connection for easy programming and parameter setting.
- Energy-efficient sensorless vector control with integrated energy saving computer.
- Supports optimized commissioning with BOP-2 or IOP operator panels.
- High power density and low envelope dimensions allow installation in small control cabinets.
Product Description
Siemens 6SL3210-1KE12-3AB2 SINAMICS G120C Series Inverter Drive is a compact and high-performance device designed for industrial automation and control applications. It delivers 550 W of output power with a 3 phase 400V AC supply and supports vector control drive type suitable for asynchronous motors. The device features a rugged wall mount design with robust IP20 protection rating, ensuring reliable operation in demanding environments.
The inverter drive is optimized for energy efficiency, featuring sensorless vector control and an integrated energy-saving computer that reduces power consumption. It supports fast and simple commissioning with comprehensive parameter sets and allows the use of BOP-2 or IOP operator panels for enhanced user interface and programming convenience. Integrated USB connectivity facilitates software parameter assignment and device configuration.
The compact design features a side-by-side installation capability with overall dimensions of 73 mm length, 155 mm width, and 173 mm depth, making it suitable for small control cabinets close to machines. The range supports an operating temperature from -10°C to 40°C and complies with international standards including CE, UL, cUL, EMC Directive 2004/108/EC, Low Voltage Directive 2006/95/EC, and C-Tick (RCM).
Typical industrial applications for the SINAMICS G120C inverter drive include manufacturing automation, HVAC systems, water treatment plants, and general machinery requiring precise motor control. As a Better World product, it promotes energy savings and sustainability in industrial processes without compromising performance.
Compact design with high power density for space-constrained installations. Integrated USB for easy software updates and parameter configuration. Energy-saving sensorless vector control technology. Supports asynchronous motors with maximum output current of 2.9 A.
Wall mount with IP20 rating suitable for indoor industrial environments. Wide operating temperature range from -10°C to 40°C for consistent performance. Compliant with multiple international safety and EMC standards. Facilitates fast commissioning via optimized parameter sets and operator panels.
Manufactured in the United Kingdom ensuring high quality and reliability standards. Explore the Siemens Inverter Drive products category for more advanced drives and accessories at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The power rating of this inverter drive is 550 W.
The maximum output current is 2.9 A, making it compatible with asynchronous motors.
This model utilizes vector control technology for precise motor control.
It operates within a temperature range of -10°C to 40°C.
The overall dimensions are 73 mm in length, 155 mm in width, and 173 mm in depth.
This inverter drive is designed for wall mounting.
It has an IP20 protection rating, suitable for indoor industrial environments.
It features a USB connection for easy programming and parameter setting.
It complies with CE, UL, cUL, EMC Directive 2004/108/EC, Low Voltage Directive 2006/95/EC, and C-Tick (RCM).
Typical applications include manufacturing automation, HVAC systems, and water treatment plants.
The SINAMICS G120C inverter drive is manufactured in the United Kingdom.
The minimum supply voltage is 400 V AC.
