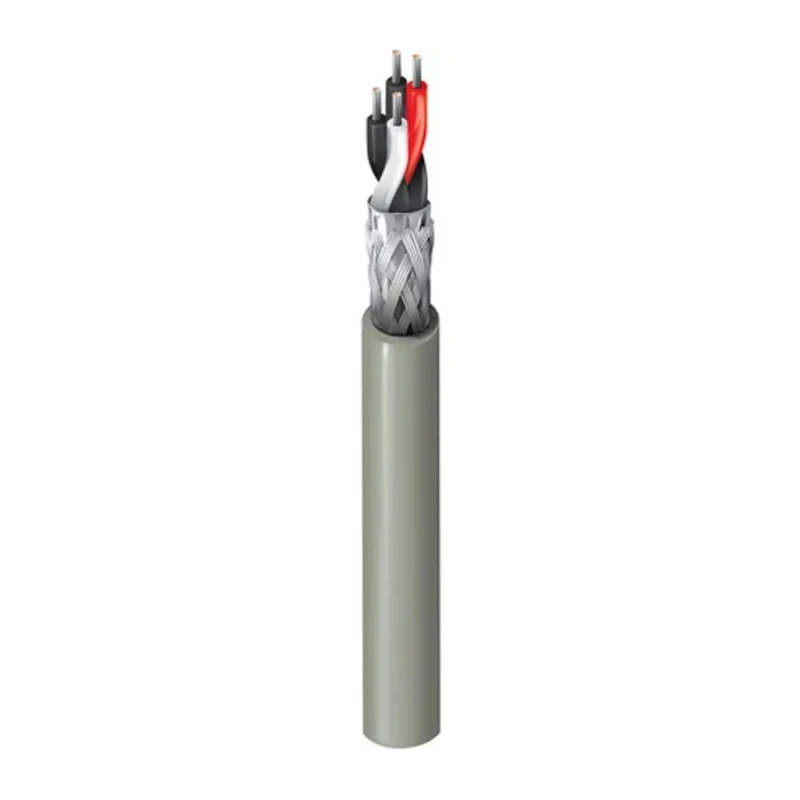

Belden 9842 Series Data Cable 2 Pairs 4 Cores 0.25 mm² 1000 ft Chrome Sheath Polyvinyl Chloride 9842 0601000

Free Delivery in India | Lowest Global Shipping Charges

Belden 9842 Series Data Cable 2 Pairs 4 Cores 0.25 mm² 1000 ft Chrome Sheath Polyvinyl Chloride 9842 0601000

Name: Belden 9842 Series Data Cable 2 Pairs 4 Cores 0.25 mm² 1000 ft Chrome Sheath Polyvinyl Chloride 9842 0601000
Brand: BELDEN
SKU: 145398
Price: 3960.74 USD
Availability: InStock



Category Data Cable Brand BELDEN Condition New

Specifications

Country of Origin	India
Voltage	300V
Brand	Belden
CROSS SECTIONAL AREA	0.25mm²
Cable Length	1000ft
Series	9842
Outside diameter	8.64mm
Maximum Operating Temperature	80°C
Number Of Cores	4
Conductor Material	Tinned Copper
Minimum Operating Temperature	-30°C
Jacket Material	Polyvinyl Chloride
Standards/Approvals	CEC, UL, APAC
Jacket Colour	Chrome
Fire Behaviour	IEC 60332-1-2
Conductor Type	Stranded
Number of Strands	7
Core Strands	7 x 32AWG
Size of Strands	32AWG
Number of Pairs	2

Key Features

The cable features a robust polyvinyl chloride jacket with a chrome color finish to resist abrasion.
It includes tinned copper stranded conductors that ensure optimal electrical flow and corrosion resistance.
The Beldfoil shielding with aluminium foil and polyester film minimizes electrostatic interference.
The cable has an outside diameter of 8.64 mm and operates at voltages up to 300 V.
Its temperature range supports operation between -30°C and 80°C, ideal for various indoor environments.
The 7 x 32 AWG strand size provides flexibility and durability for installation.
Certified with CEC, UL, and APAC standards and compliant with IEC 60332-1-2 fire behavior requirements.
Designed to reduce crosstalk and provide clean signal transmission over long distances.

Product Description

Belden 9842 0601000 Data Cable 2 Pairs 4 Cores 0.25 mm² 1000 ft, with a polyvinyl chloride (PVC) chrome sheath jacket, is engineered for robust RS-485 communication networks requiring high signal integrity and durability.

This data cable employs tinned copper stranded conductors consisting of 7 strands of 32 AWG wire, providing excellent flexibility and corrosion resistance. The cable's Beldfoil shielding combines aluminium foil with a polyester film, effectively guarding against electrostatic disturbances while enhancing mechanical strength.

The cable measures 8.64 mm in outside diameter and operates reliably within a temperature range of -30°C to 80°C. Rated for 300 V operation voltage, it meets recognized certifications including CEC, UL, and APAC, and complies with IEC 60332-1-2 standards concerning fire behavior.

Its construction features two twisted pairs (four cores) designed to transmit signals in opposite directions, significantly reducing crosstalk and ensuring clear data transmission over extensive distances. The cable's superior flexibility allows easy routing and installation without performance degradation.

Applications for this cable include telecommunications infrastructure, avionics systems, medical facilities, and industrial automation setups. The cable is suitable for humid indoor environments due to its corrosion-resistant materials.

The cable's jacket is abrasion-resistant PVC with a chrome finish. Tinned copper stranded conductors support optimal current flow and corrosion resistance. Beldfoil shielding reduces electrostatic interference and enhances durability.

Operating voltage rating of 300 V and temperature range from -30°C to 80°C ensures versatility. Conforms to CEC, UL, APAC certifications and IEC 60332-1-2 fire behavior standard. Physical size includes an 8.64 mm outside diameter for easy handling.

Two twisted pairs (four cores) allow effective noise cancellation and reliable data communication. Suitable for use in telecommunications, medical centers, avionics, and industrial automation environments.

Set your installations up for dependable and clear communication with Belden's 9842 Series Data Cable. Browse more specialized cables and accessories at EnvMart to complete your project needs.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The maximum operating temperature for this data cable is 80°C.

This model is rated for operation at voltages up to 300V.

The cable features tinned copper stranded conductors and a polyvinyl chloride (PVC) jacket.

The outside diameter of this cable is 8.64 mm.

This model has 4 cores, organized into 2 twisted pairs.

It is certified with CEC, UL, and APAC standards and complies with IEC 60332-1-2 fire behavior requirements.

The cable is 1000 feet long.

This data cable employs Beldfoil shielding, which combines aluminium foil and polyester film to minimize electrostatic interference.

The minimum operating temperature for this model is -30°C.

Each conductor consists of 7 strands of 32 AWG wire.

This cable is suitable for telecommunications infrastructure, avionics systems, medical facilities, and industrial automation setups.

The twisted pairs are designed to transmit signals in opposite directions, significantly reducing crosstalk and ensuring clear data transmission over long distances.
