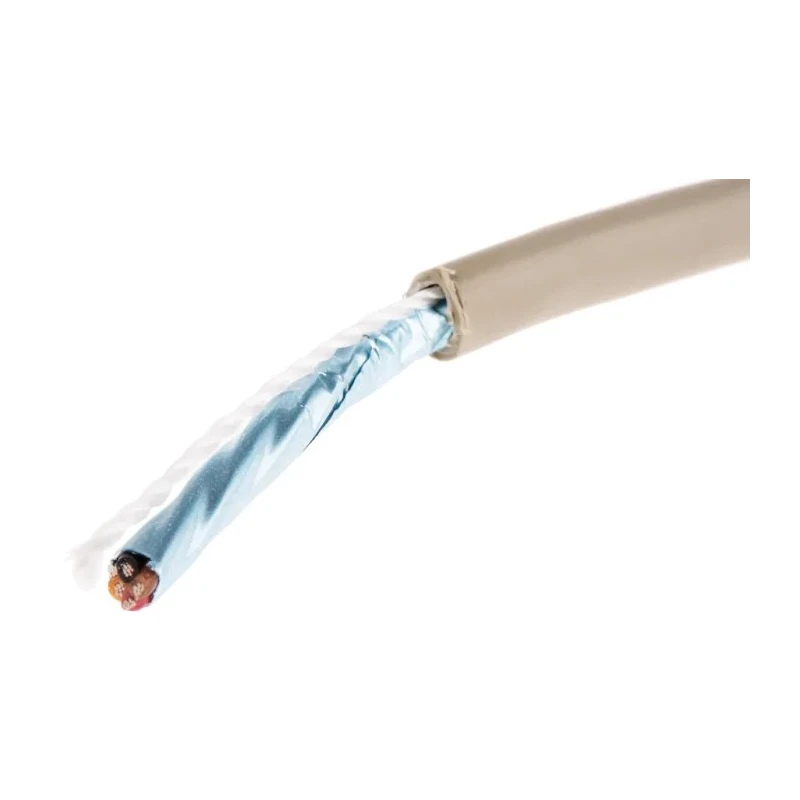

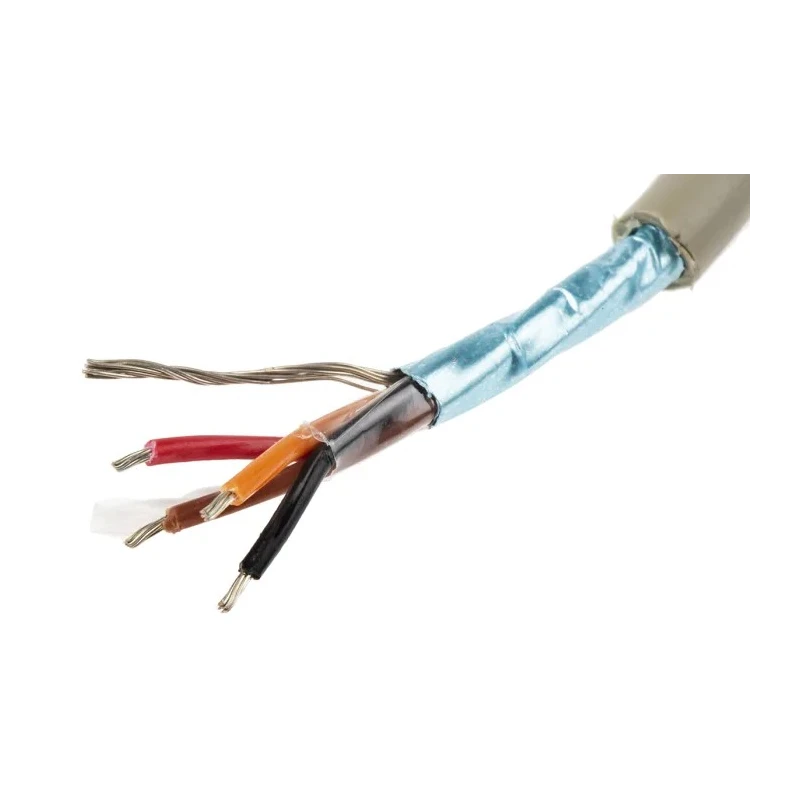

Alpha Wire Pro-Tekt Series Data Cable, 4 Core, 100 m, Grey Polyvinyl Chloride Sheath, 300V B953042 GE033
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| Model | B953042 GE033 |
| Cable Length | 100m |
| Series | Pro-Tekt |
| Outside diameter | 4.52mm |
| Maximum Operating Temperature | 80°C |
| Number Of Cores | 4 |
| Conductor Material | Copper |
| Insulation Thickness | 0.010 (0.25 mm) |
| Nominal Diameter | 0.178 inch (4.52 mm) |
| Minimum Operating Temperature | -30°C |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | CE, CSA Certified, UL |
| Jacket Colour | Grey |
| Fire Behaviour | Flame Retardant |
| Conductor Type | Stranded |
| Number of Strands | 7 |
| Core Strands | 7 x 0.20mm |
| Size of Strands | 0.20mm |
| Conductors | 4, Black, Brown, Red, Orange |
| Jacket Thickness | 0.032 inch (0.81 mm) |
| Stranding | 7/32 |
Key Features
- The cable offers stranded copper conductors for enhanced flexibility and durability.
- It features a flame retardant polyvinyl chloride (PVC) jacket for safety.
- The cable operates effectively between -30°C to +80°C temperature range.
- Manufactured under CE, CSA Certified, and UL standards ensuring high quality.
- The nominal outside diameter is 4.52 mm with a jacket thickness of 0.81 mm.
- Conductors are color-coded black, brown, red, and orange for easy identification.
- Nominal conductor size is 24 AWG (0.23 mm²) with 7 strands per core.
- The cable is flame retardant and suitable for industrial and automation environments.
Product Description
Alpha Wire B953042 GE033 Pro-Tekt Series Data Cable is a high-performance 4-core cable sheathed in premium-grade grey polyvinyl chloride (PVC). Designed for 300 V applications, it features stranded copper conductors coded black, brown, red, and orange, offering excellent flexibility and durability for industrial, automation, and electrical power environments.
The cable's nominal outside diameter is 4.52 mm with a jacket thickness of 0.81 mm, ensuring robust protection. The PVC jacket is flame retardant, UV and oil resistant, enabling safe usage in demanding conditions. Its operating temperature ranges from -30°C to +80°C, making it suitable for varied environmental conditions.
Pro-Tekt cables comply with CE, CSA Certified, and UL standards, assuring reliability and quality. The stranded conductors consist of 7 strands of 0.20 mm diameter copper wire per core, with insulation thickness of 0.25 mm, and stranding of 7/32 configuration. This design improves cable flexibility and mechanical strength.
The cable is ideal for use in industrial automation, medical devices, aerospace, petrochemical sectors, and commercial electronics, providing excellent data transmission with flame retardancy and mechanical resilience. The color-coded conductors facilitate ease of wiring installation and maintenance.
The cable features stranded conductors for flexibility. Flame retardant PVC sheath provides enhanced safety. Supports temperatures from -30°C to 80°C. Complies with CE, CSA, and UL approvals. Nominal diameter 4.52 mm enables compact installations.
Color-coded conductors ease identification. Seven strands per conductor optimize flexibility. Robust cable suitable for industrial automation and commercial equipment. Designed for 300 V electrical environments.
Choose Alpha Wire Pro-Tekt Series Data Cable for reliable, flexible, and safe data cabling solutions in a variety of professional and industrial applications. Explore more Data Cables and electrical components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 80°C.
The nominal outside diameter of this cable is 4.52 mm.
It features stranded copper conductors, which enhance flexibility and durability.
This cable is rated for 300V applications.
The conductors are color-coded black, brown, red, and orange for easy identification.
The minimum operating temperature is -30°C.
The jacket is made of flame retardant polyvinyl chloride (PVC).
This model has 4 cores.
It complies with CE, CSA Certified, and UL standards.
The insulation thickness for the conductors is 0.25 mm.
Each conductor consists of 7 strands of 0.20 mm diameter copper wire.
The jacket thickness is 0.81 mm.
