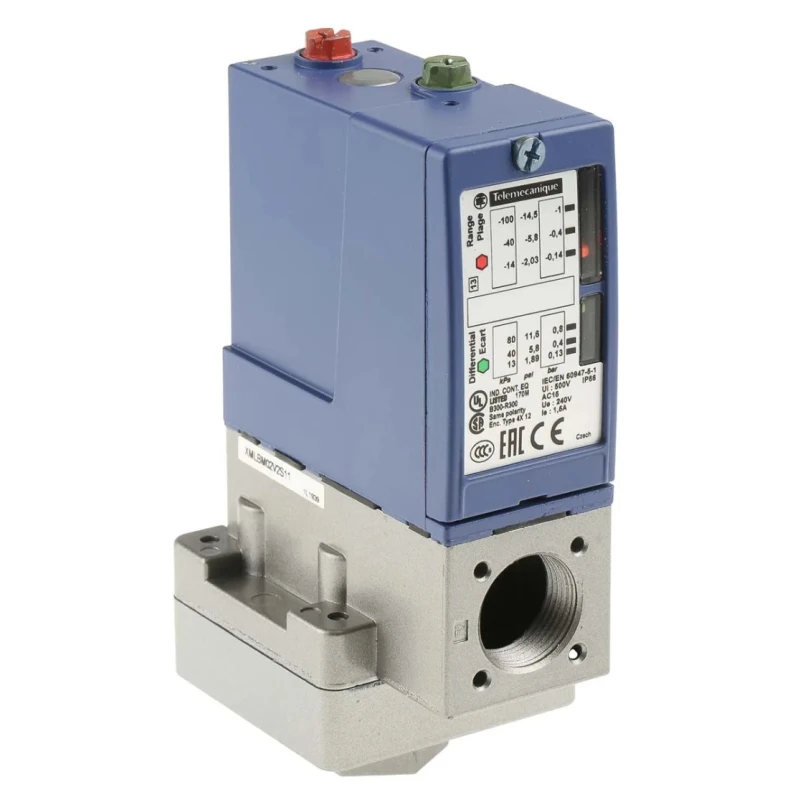

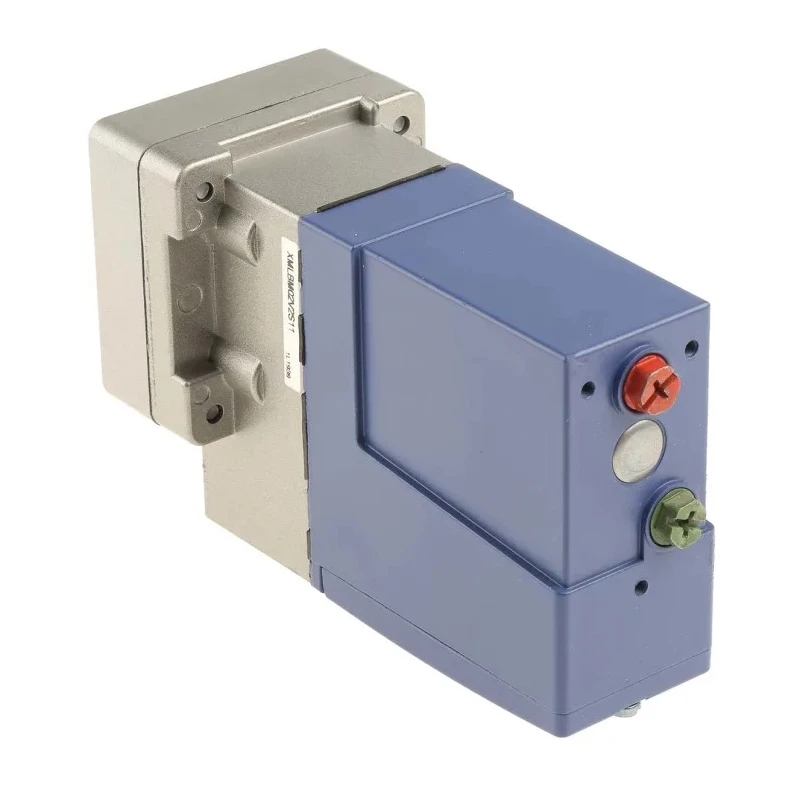

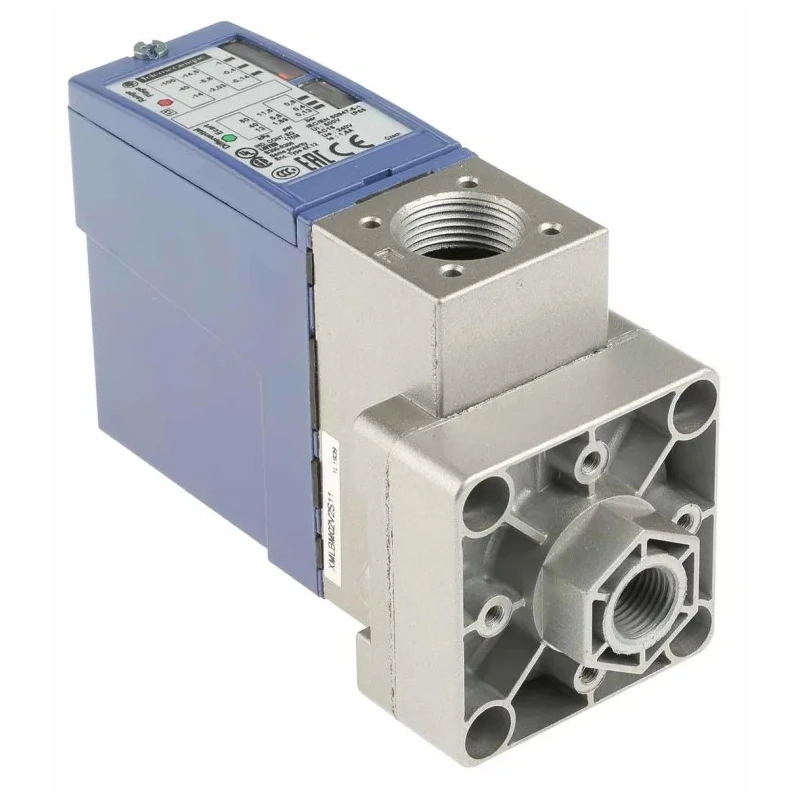

Telemecanique Sensors XMLB Series Differential Pressure Sensor with Relay Output, Measuring Range -0.87 bar to XMLBM02V2S11

Telemecanique Sensors XMLBM02V2S11 is a high-precision differential pressure sensor with relay output suitable for diverse industrial and automation applications. It measures pressures from -0.87 bar minimum up to -0.01 bar maximum, ensuring accurate readings within a 2% tolerance.

The sensor is engineered to measure various media including air, fresh water, hydraulic fluid, and sea water, providing versatility across HVAC, manufacturing, water treatment, and hydraulic systems.

Constructed with a robust zinc alloy housing, this sensor ensures durability and is rated IP66 for dust and water resistance, supporting operation in harsh environments. It features a screw clamp terminal for reliable electrical connection.

This model includes 1 Normally Open (NO) and 1 Normally Closed (NC) snap acting relay contacts, allowing it to effectively control pressure circuits. The adjustable differential and external pressure setting window allow precise threshold settings enabling versatile control scenarios.

Designed to operate within a temperature range from -25°C to +70°C, the device maintains performance under varied ambient conditions. It is compliant with CE, UL 508, EN/IEC 60947-5-1, and CSA C22.2 No 14 standards, conforming to recognized industrial safety and performance criteria.

The sensor supports a minimum supply voltage of 120 V and a maximum supply voltage of 250 V DC, making it suitable for a broad range of industrial electrical environments. Capable of sensing differential pressure in air, fresh water, hydraulic fluid, and sea water.

Features zinc alloy housing with IP66 protection ensuring robust durability. Equipped with 1 NO & 1 NC snap acting relay contacts for control circuits. Operates efficiently within temperature range of -25 to 70°C. Offers adjustable differential and external pressure setting for precise detection.

Terminal type is screw clamp facilitating easy wiring connections. Meets industry standards including CE, UL 508, EN/IEC 60947-5-1, and CSA C22.2 No 14. Supports supply voltage between 120V minimum and 250V DC maximum. Designed for industrial, automation, and control gear applications.

Enclosure rated IP65 with plug-in connector and IP66 with terminal connections for environmental protection.

This Pressure Sensor is ideal for industrial, manufacturing, laboratory, HVAC, water treatment, and hydraulic system applications, providing precise pressure measurement and reliable relay output control. It supports demanding environments thanks to its robust construction and protection ratings.
