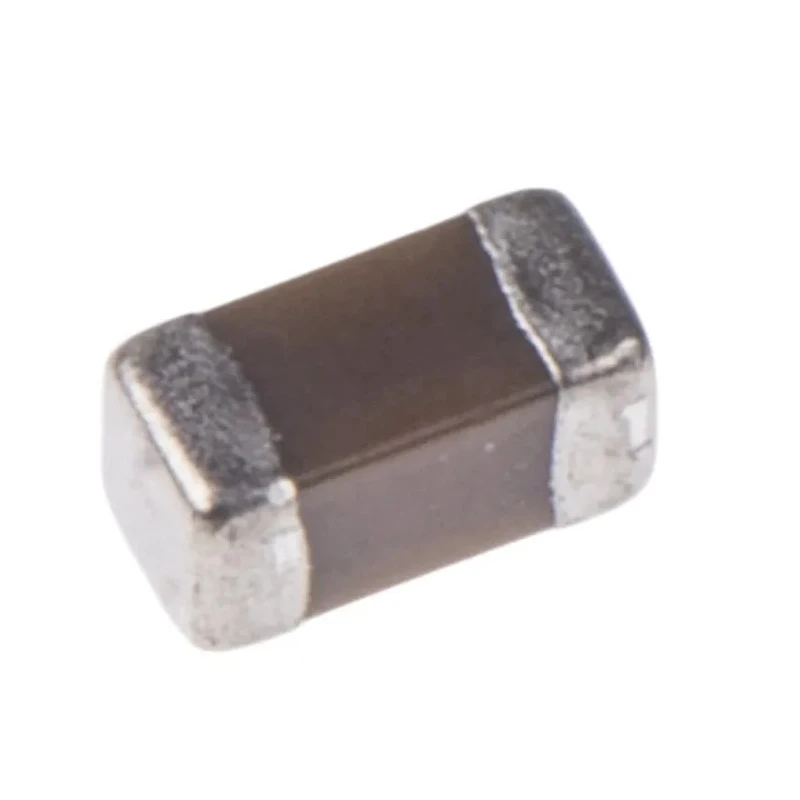

KEMET 220 nF Multilayer Ceramic Capacitor X7R Dielectric 10V dc ±10 % Tolerance Surface Mount 0603 Package C0603C224K8RACTU
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 10V dc |
| Brand | KEMET |
| Height | 0.8mm |
| Length | 1.6mm |
| Model | C0603C224K8RACTU |
| Packaging | Tape & Reel |
| Width | 0.8mm |
| Mount Type | Surface |
| Construction | Stacked |
| Series | C |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Tolerance | ±10 % |
| Capacitance | 220nF |
| Minimum Operating Temperature | -55°C |
| Package/Case | 0603 |
| Dielectric | X7R |
| Suppression Class | Class I |
Key Features
- Constructed with stacked multilayer ceramic technology for reliable performance.
- Operating temperature range from -55°C to 125°C supporting automotive and industrial use.
- Features Class I suppression and solder termination type for robust mounting.
- Compliant with standards including J-STD-020, IPC-7351, EIA 624, EIA 556, and EIA 481.
- Offers high ripple current capability with low equivalent series resistance and inductance.
- Non-polar device minimizes installation risks on PCBs.
- Matte tin-plated termination ensures excellent solderability and durability.
- Comes in tape and reel packaging ideal for automated machine insertion.
Product Description
KEMET C0603C224K8RACTU is a 220 nF multilayer ceramic capacitor designed with the X7R dielectric, rated for 10V dc and featuring ±10 % capacitance tolerance. It is supplied in a 0603 surface mount package, making it suitable for compact electronic assemblies.
This capacitor is constructed using stacked multilayer technology, providing high reliability and performance stability over a wide temperature range from -55°C up to 125°C. Its Class I suppression classification ensures temperature stability suitable for automotive and industrial environments.
The device features a solder termination finish with 100% pure matte tin plating that guarantees excellent solderability and long-term durability in harsh operational conditions. It also complies with industry standards J-STD-020, IPC-7351, EIA 624, EIA 556, and EIA 481, confirming its quality and reliability.
With a compact footprint of 1.6mm length, 0.8mm width, and 0.8mm height, this capacitor is ideal for densely packed PCBs. It has a robust design that supports high ripple currents with extremely low equivalent series resistance (ESR) and inductance (ESL), maximizing performance in high-frequency circuits.
Stacked multilayer ceramic construction for stability and reliability. Wide operating temperature range from -55°C to +125°C. Non-polar design minimizes installation concerns. Matte tin-plated solder terminations for excellent solder joint integrity.
Complies with numerous industrial standards ensuring quality. Tape and reel packaging for efficient automated assembly processes. Compact 0603 package size suitable for space-constrained designs. Application includes critical timing, tuning, and filtering circuits.
Supports transient voltage suppression and energy storage tasks.
This Multilayer Ceramic Capacitor is widely used in automotive circuits, critical timing applications, pulse circuits, and any designs requiring stable capacitance and reliability. It is suitable for harsh environments including in-cabin and under-hood automotive electronics.
Explore more electronic components and passive device solutions at EnvMart for your manufacturing and design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance value of this model is 220 nF.
It operates within a temperature range of -55°C to 125°C.
This capacitor uses an X7R dielectric.
The voltage rating is 10V dc.
The dimensions are 1.6mm in length, 0.8mm in width, and 0.8mm in height.
It features a solder termination type with matte tin plating.
This model is supplied in tape and reel packaging, suitable for automated machine insertion.
The tolerance of this capacitor is ±10%.
It is suitable for automotive circuits, critical timing applications, and pulse circuits requiring stable capacitance.
It complies with standards including J-STD-020, IPC-7351, EIA 624, EIA 556, and EIA 481.
The capacitor is constructed using stacked multilayer technology.
The suppression class is Class I, ensuring temperature stability for various applications.
