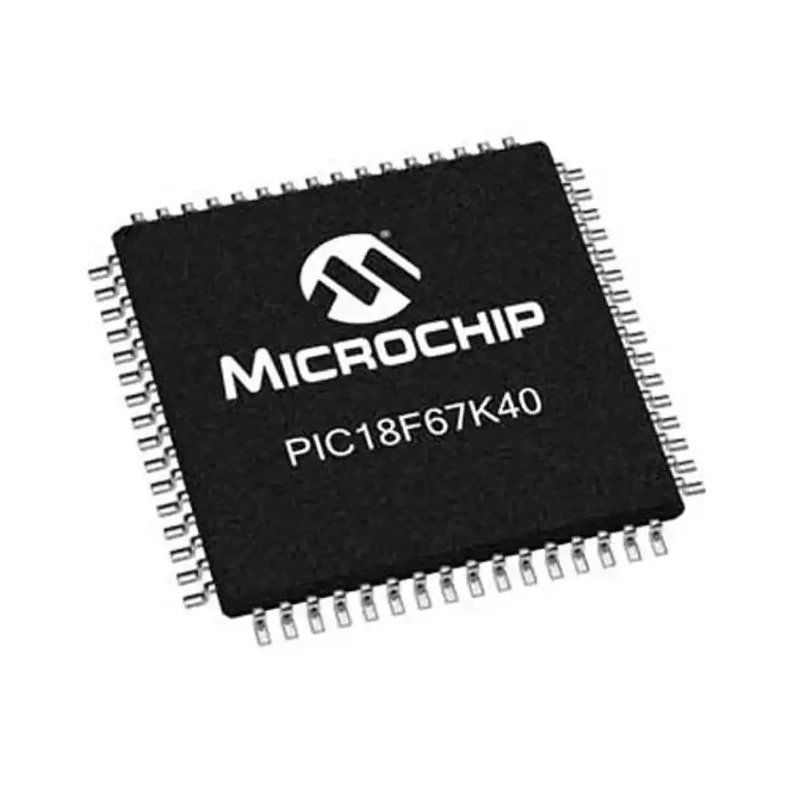

Microchip 8 bit PIC18 Microcontroller 128kB Flash 3.56kB RAM 64 MHz 64-Pin TQFP PIC18F67K40-I/PT

The Microchip PIC18F67K40-I/PT is an advanced 8-bit PIC18 microcontroller featuring 128kB Flash memory and a 3.56kB RAM, running at a maximum clock frequency of 64 MHz. Packaged in a 64-pin TQFP surface mount form factor, this microcontroller combines eXtreme Low Power (XLP) technology with a rich set of integrated peripherals, making it suitable for a wide array of low-power and general-purpose applications in industrial, automotive, and consumer electronics.

This device operates over a voltage range of 2.3 V to 5.5 V, ensuring versatility in power supply options. It incorporates 59 programmable I/O pins, along with 1 x 5 Bit DAC, 47 x 10 Bit ADC channels, and 3 analogue comparators, facilitating sophisticated signal processing capabilities. The hardware capacitive voltage divider (CVD) feature enables responsive mTouch button and slider interfaces.

Communication interfaces are comprehensive, including 2 I²C/SPI ports and 5 Enhanced Universal Synchronous Asynchronous Receiver Transmitters (EUSART) with LIN support, enabling robust connectivity options. The microcontroller supports in-circuit debugging and serial programming (ICSP) through dedicated pins, streamlining firmware development workflows.

Designed with a RISC instruction set architecture, it provides efficient instruction execution with 83 instructions and 31 stack levels. Its operating temperature range from -40°C to +85°C makes it suitable for demanding environments.

The device complies with RoHS environmental standards and delivers a maximum power dissipation of 800mW, ensuring reliable operation within industrial limits. Applications include embedded systems, automation, motor control, sensor interfacing, and more.

64-pin TQFP package with surface mount technology ensures compact form factor. Supports operating voltage range from 2.3 V to 5.5 V for flexible power supply options. Equipped with 59 programmable I/O pins suitable for varied interfacing requirements.

Features 1 x 5 Bit DAC, 47 x 10 Bit ADCs, and 3 analogue comparators for accurate signal processing. Includes hardware capacitive voltage divider for mTouch buttons and sliders applications. Offers multiple communication protocols including 2 x I²C/SPI and 5 x EUSART with LIN support.

Designed with low power consumption technology ideal for battery-powered and low power applications. Operating temperature ranges from -40°C to 85°C ensuring robustness in industrial environments. In-Circuit Debug and Serial Programming features facilitate efficient development and debugging.

Complies with RoHS standards ensuring environmental safety. Explore the Microchip Microcontroller series at EnvMart for versatile embedded development solutions.
