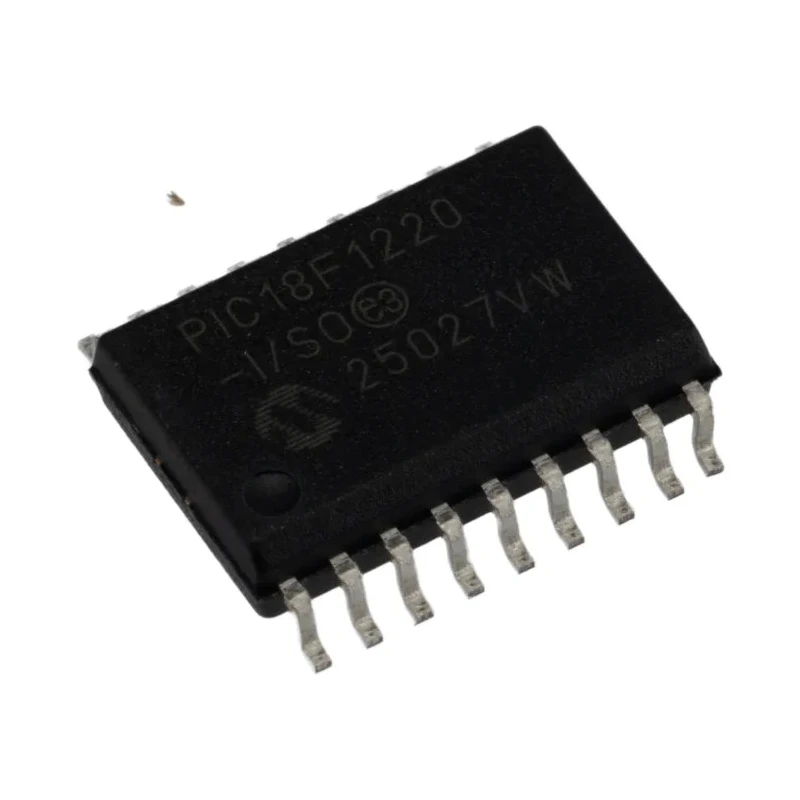

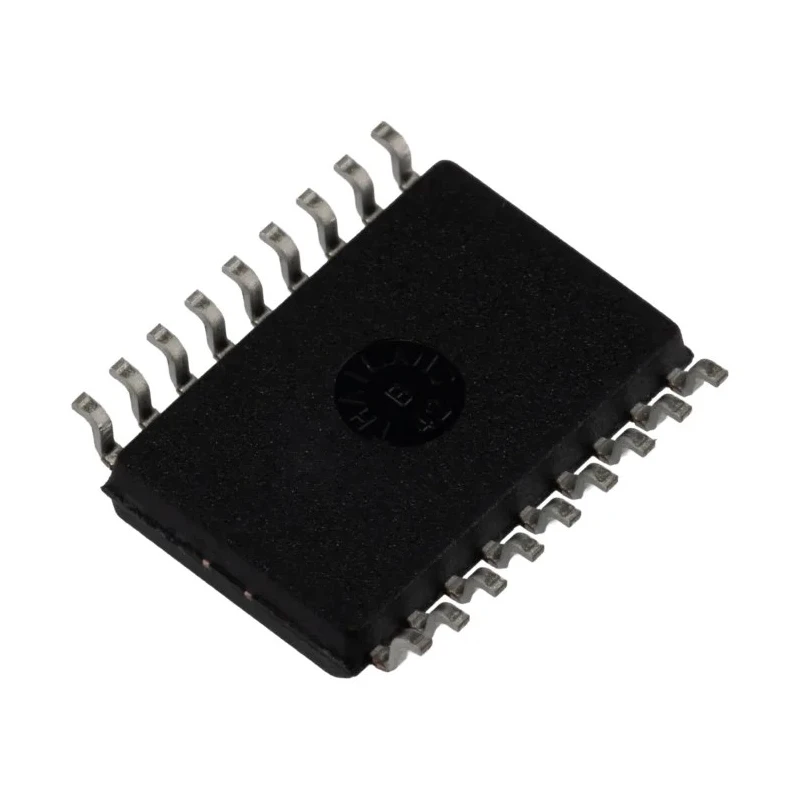

Microchip 8 Bit PIC18F Microcontroller 40 MHz 4 kB Flash 256 B RAM 18-Pin SOIC PIC18F1220-I/SO
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 2.35mm |
| Length | 11.55mm |
| Model | PIC18F1220-I/SO |
| Width | 7.5mm |
| Mount Type | Surface |
| Series | PIC18F |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Ram size | 256bit |
| Interface Type | RS232 |
| Standards/Approvals | RoHS |
| Pin Count | 18 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 1W |
| Minimum Supply Voltage | 2V |
| Device Core | PIC |
| Program Memory Size | 4, 256kB |
| Maximum Clock Frequency | 40MHz |
| Number of Programmable I/Os | 16 |
| Number of Timers | 4 |
| Instruction Set Architecture | RISC |
| ADCs | 7 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- High-performance 8 bit PIC microcontroller architecture optimized for versatile embedded applications.
- Operates with a maximum clock frequency of 40 MHz ensuring fast processing.
- 4 kB program memory and 256 B RAM support moderate code and data requirements.
- Features 16 programmable input/output pins for flexible interfacing.
- Supports RS232 interface for serial communication.
- Operating temperature ranges from -40°C to 85°C providing robust reliability.
- Compact SOIC package with dimensions 11.55 mm length, 7.5 mm width, and 2.35 mm height.
- Low power consumption with maximum power dissipation of 1 W.
Product Description
Microchip PIC18F1220-I/SO is a high-quality 8 bit PIC microcontroller designed for embedded system applications that require efficient processing and memory management. Featuring a maximum operating frequency of 40 MHz, it provides excellent performance for a variety of control and interface tasks.
This microcontroller integrates a 4 kB flash program memory and 256 B of RAM, making it suitable for mid-level complexity embedded applications. The device includes 16 programmable input/output I/O pins, enabling flexible connectivity to peripheral devices.
Encased in a compact 18-pin SOIC surface-mount package measuring 11.55 mm in length, 7.5 mm in width, and 2.35 mm in height, it fits well in space-constrained circuits. The microcontroller supports serial RS232 communication interface, 7 channels of 10-bit ADC for analog signal conversion, and has 4 timers for time-based operations.
Designed for a broad temperature range from -40°C to 85°C, the PIC18F1220-I/SO is reliable in tough industrial, automotive, and consumer environments. It meets RoHS compliance standards to ensure the product is environmentally safe and free of hazardous substances.
High-performance embedded microcontroller with robust processing speed. 4 kB flash memory and 256 B RAM suitable for diverse applications. 16 programmable I/O pins allow peripheral interfacing. RS232 compatible for serial communication protocols.
Operating ambient temperature from -40°C to 85°C. Compact 18-pin SOIC package suitable for surface mounting. 7 channels of 10-bit ADC for analog input processing. Low power consumption with a max power dissipation of 1 watt.
Complies with RoHS environmental standards. Versatile for Industrial, Automotive, Consumer Electronics, and Embedded systems.
This microcontroller is ideal for applications in industrial control systems, automotive electronics, consumer devices, and embedded development projects. Its balance of memory size, speed, and peripheral support provides engineers with a flexible and reliable solution for a wide range of use cases.
Explore more Microchip Microcontrollers and advanced electronic components within EnvMart for your next design and development needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 40 MHz, ensuring fast processing capabilities for embedded applications.
It features a program memory size of 4 kB, which supports moderate code requirements for various applications.
This microcontroller includes 16 programmable input/output pins, providing flexibility for interfacing with peripheral devices.
The operating temperature range is from -40°C to 85°C, making it suitable for use in diverse environments.
It supports an RS232 interface for serial communication, allowing for easy integration with other devices.
The dimensions of this microcontroller are 11.55 mm in length, 7.5 mm in width, and 2.35 mm in height.
It features 7 channels of 10-bit ADC for analog signal conversion, enhancing its capability for processing analog inputs.
The maximum power dissipation is 1 watt, which contributes to its low power consumption profile.
The minimum supply voltage is 2V and the maximum supply voltage is 5.5V, allowing for a range of power supply options.
It comes in an 18-pin SOIC surface-mount package, suitable for space-constrained applications.
The PIC18F1220-I/SO complies with RoHS standards, ensuring it is environmentally safe and free from hazardous substances.
It utilizes a RISC instruction set architecture, which enhances its performance and efficiency for embedded applications.
