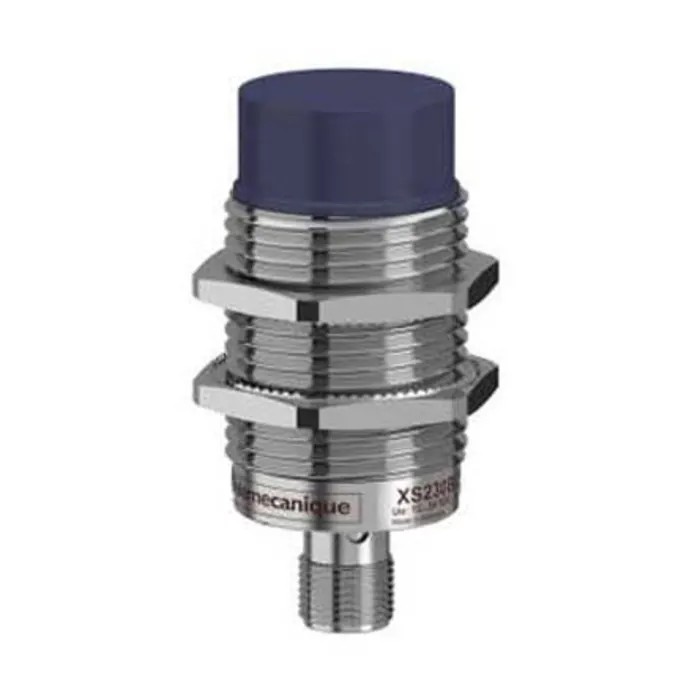

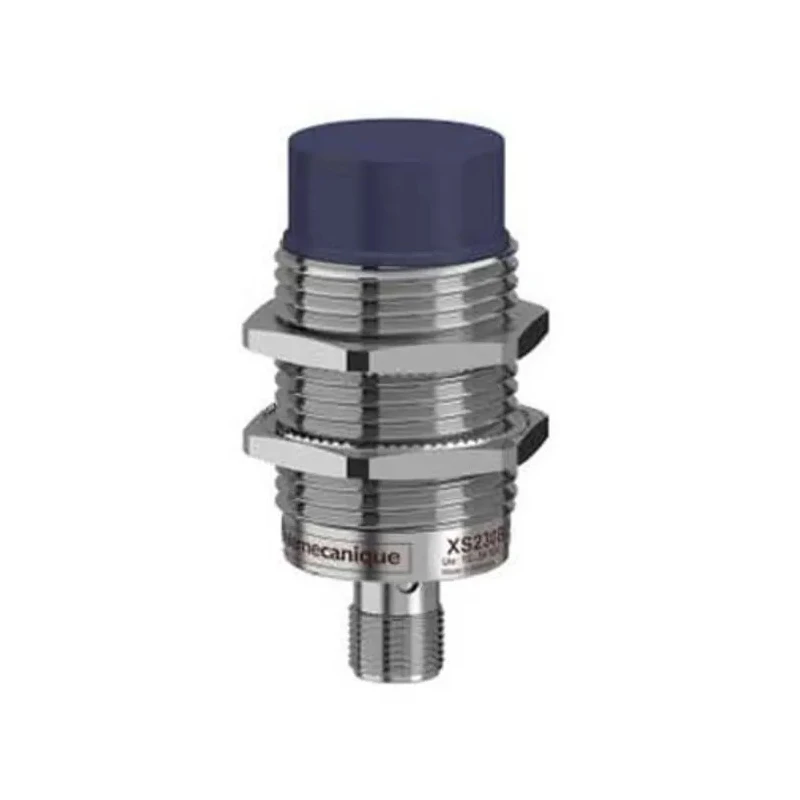

Telemecanique Sensors Threaded Barrel Inductive Proximity Sensor M30 x 1.5 NPN General Purpose 24V dc 15mm XS230BLNAM12

Free Delivery in India | Lowest Global Shipping Charges

Telemecanique Sensors Threaded Barrel Inductive Proximity Sensor M30 x 1.5 NPN General Purpose 24V dc 15mm XS230BLNAM12

Name: Telemecanique Sensors Threaded Barrel Inductive Proximity Sensor M30 x 1.5 NPN General Purpose 24V dc 15mm XS230BLNAM12
Brand: Telemecanique Sensors
SKU: 143930
Price: 59.11 USD
Availability: InStock



Category Inductive Proximity Sensor Brand Telemecanique Sensors Condition New

Specifications

Country of Origin	India
Brand	Telemecanique Sensors
Length	68mm
Model	XS230BLNAM12
Depth	36mm
IP Rating	IP67, IP65
Width	36mm
Mount Type	Non-Flush
Housing Material	Nickel Plated Brass
Output type	NPN
Series	General Purpose
Maximum Operating Temperature	70°C
Thread Size	M30 x 1.5
Minimum Operating Temperature	-25°C
Switching Current	200mA
Terminal type	4-Pin M12 Male Connector
Body Style	Threaded Barrel
Shielding	Unshielded
Maximum Switching Frequency	300Hz
Maximum Supply Voltage	24V dc
Materials Detected	Metal
Maximum Detection	15mm
Omron Threaded Barrel Proximity Sensor, M30, 15 mm Detection, 12 → 24 V dcBrand	Omron

Key Features

Features a threaded barrel design with M30 x 1.5 thread size for easy mounting.
Operates at 24V DC with NPN output suitable for general purpose applications.
Constructed from nickel plated brass housing providing durability and corrosion resistance.
Rated IP65 and IP67 for protection against dust and water ingress.
Non-flush, unshielded sensor suitable for detecting metal objects up to 15 mm distance.
Equipped with a 4-pin M12 male connector terminal for reliable connections.
Suitable for harsh industrial environments with operating temperatures from -25°C to 70°C.
Supports a maximum switching frequency of 300Hz and switching current of 200mA.

Product Description

Telemecanique Sensors XS230BLNAM12 is a high-performance threaded barrel inductive proximity sensor designed for metal object detection in industrial automation and control systems.

This sensor features a robust M30 x 1.5 threaded barrel made from nickel plated brass, ensuring durability and longevity in demanding environments. With a non-flush, unshielded design, it detects metal targets up to 15 mm away with high reliability.

Operating at 24V DC, the sensor provides an NPN output type and is supplied via a 4-pin M12 male connector, facilitating easy integration with controllers and PLCs.

Rated to IP65 and IP67 standards, the sensor is protected against dust ingress and water jets, making it suitable for harsh industrial and manufacturing applications. It withstands operating temperatures ranging from -25°C up to 70°C, enabling use in a variety of environmental conditions.

The sensor supports a high switching frequency of 300Hz and a switching current capacity of 200mA, making it suitable for rapid detection tasks and automation processes. Thread size: M30 x 1.5 for secure mounting. Body material: nickel plated brass for corrosion resistance.

IP67 and IP65 rated providing dust and water protection. Non-flush, unshielded sensing for general purpose metal detection. 4-pin M12 male connector for electrical connectivity. Maximum detection distance: 15 mm for reliable sensing.

Operating temperature: -25°C to 70°C for diverse conditions. Maximum switching frequency: 300 Hz suitable for high-speed applications. Switching current: 200 mA supports standard industrial loads.

This Inductive Proximity Sensor is widely used in industrial automation, manufacturing machinery, material handling, packaging, robotics, and other metal detection applications. It ensures reliable non-contact sensing unaffected by oil, dirt, or surface finishes, suitable for environments with vibration and shock.

Explore EnvMart for further sensors and automation components from Telemecanique Sensors.
