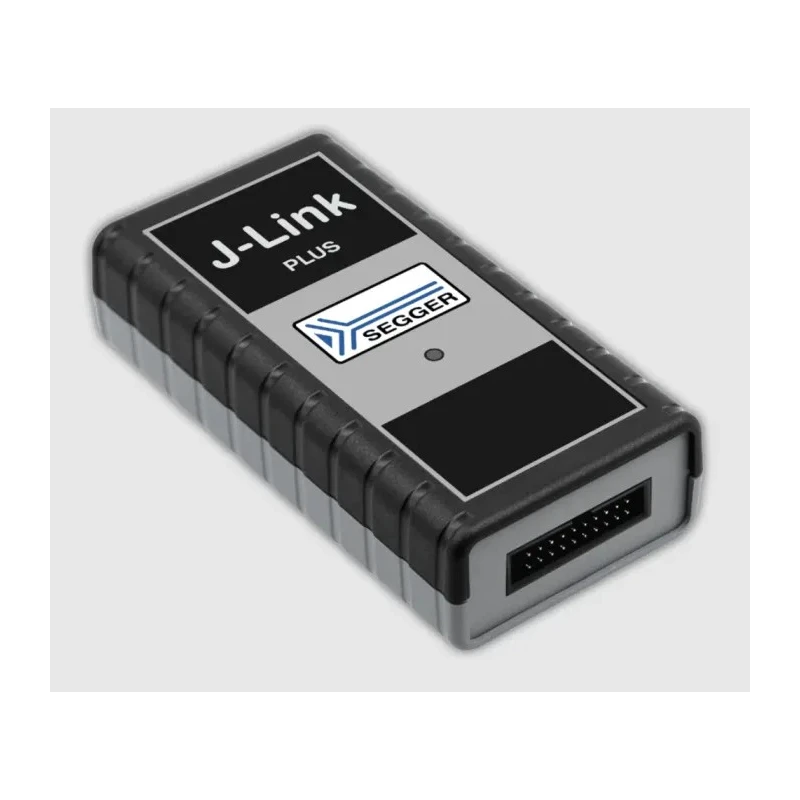

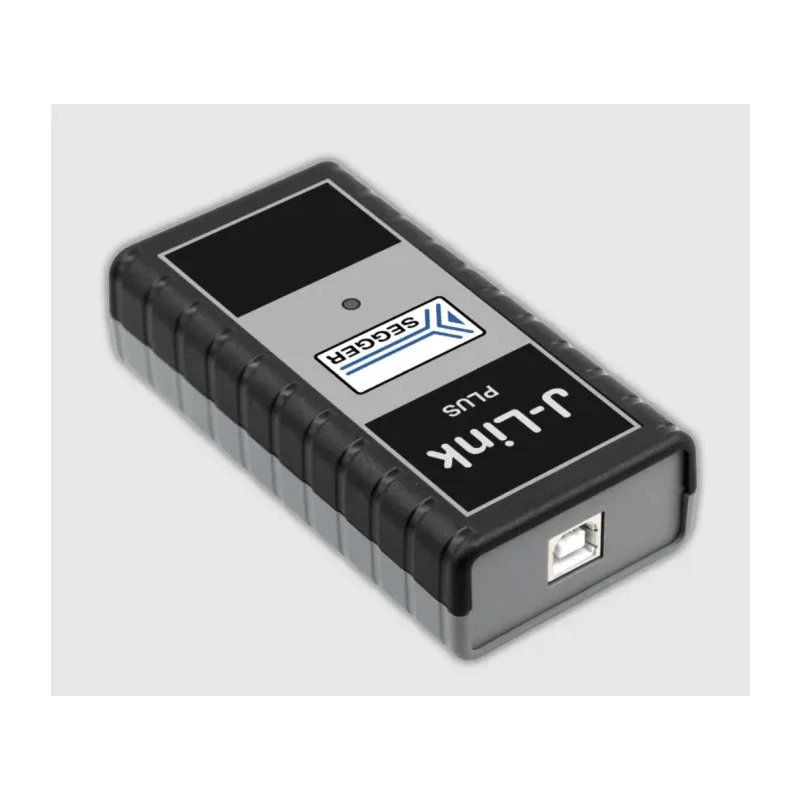

SEGGER Programmers & In-Circuit Emulator J-Link PLUS Emulator 8.08.28 J-Link PLUS

The SEGGER 8.08.28 J-Link PLUS Emulator is a high-performance JTAG programmer and debugger designed for use with flash microcontrollers in various industrial and development applications. It features ARM core architecture supporting a wide range of Cortex processors, Microchip PIC32, and Renesas RX series cores, providing versatile compatibility for embedded development.

This J-Link PLUS probe offers a wide target voltage range from +1.2 V to +3.3 V and is tolerant of +5 V inputs. It supports multiple target interfaces including JTAG and Serial Wire Debug (SWD), catering to diverse debugging needs. The device efficiently downloads code directly into microcontroller flash memory with speeds up to 1 MB per second.

Engineered for professional environments, the emulator supports unlimited breakpoints within flash memory as well as in external flash memory on Cortex-M systems, enhancing debugging flexibility and productivity. It also includes embedded trace buffer support and adaptive clocking features for advanced trace and timing analysis.

The device comes with integrated licenses for unlimited flash breakpoints, RDI and RDDI interfaces, and J-Flash production programming. Additional features include a remote server that enables control over TCP/IP, and a GDB server for integration with GNU Debugger tools, facilitating remote development and testing workflows.

Physically compact, the emulator measures 100 x 53 x 27 mm and utilizes a 20-pin JTAG interface for target connection, powered through a USB 2.0 connector. Its cross-platform software runs seamlessly on Windows, Linux, and macOS environments. It ships with essential accessories including a USB cable and 20-pin ribbon cable for immediate deployment.

Supports wide target voltage range from +1.2 V to +3.3 V and is +5 V tolerant. Offers multiple target interfaces including JTAG and SWD for flexible debugging. Compatible with major IDEs such as IAR EWARM, Keil MDK, and Renesas e2studio.

Enables direct downloads into flash memory at speeds up to 1 MB/second. Supports unlimited breakpoints in flash memory and external flash for Cortex-M systems. Includes remote server and GDB server for remote and production flash programming.

Powered via USB 2.0 connector with cross-platform software support on Windows, Linux, and macOS. Compact device measuring 100 x 53 x 27 mm with 20-pin JTAG target interface. Supplied with USB cable and 20-pin ribbon cable for easy setup.

This SEGGER J-Link PLUS Emulator is ideal for industrial, laboratory, embedded systems development, manufacturing, and quality assurance applications requiring robust microcontroller programming and debugging solutions. EnvMart offers this model for professional developers seeking high reliability and wide compatibility within semiconductor and embedded device ecosystems.
