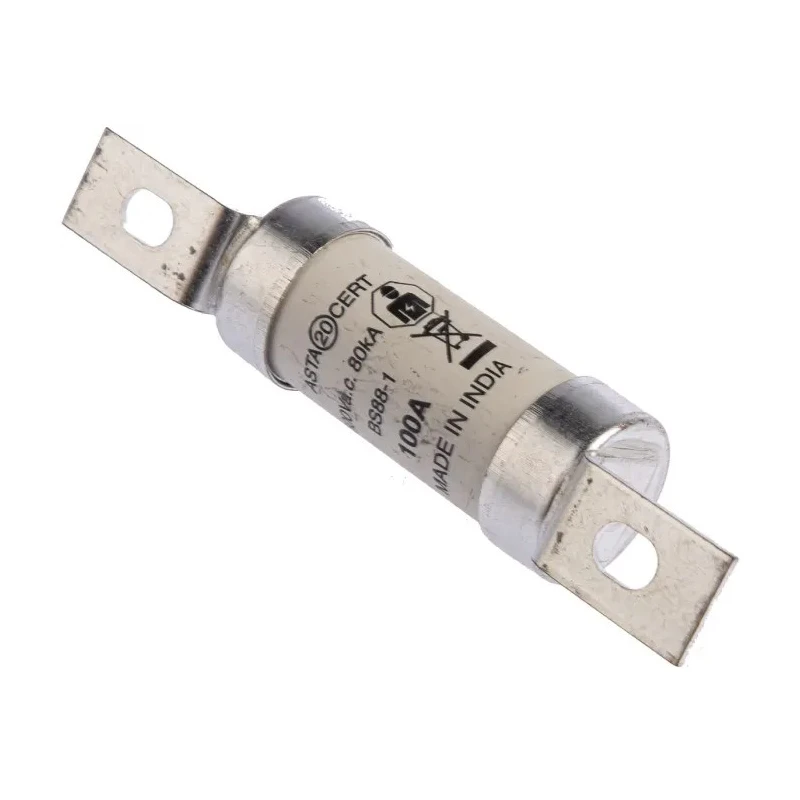

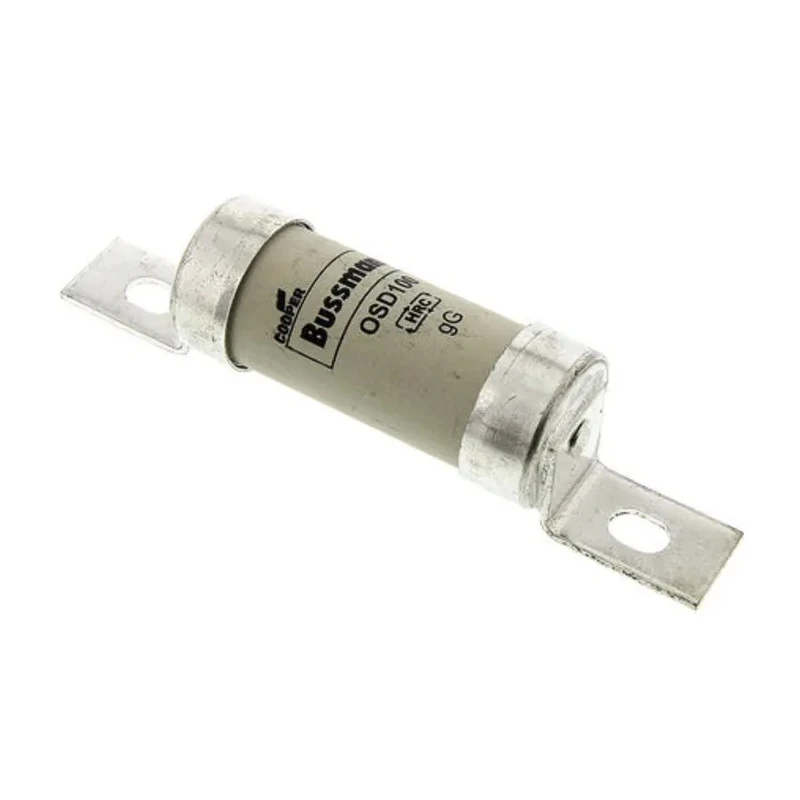

Eaton British Standard Fuse 100A 415V AC High Rupture Capacity Offset Tag A3 73 mm OSD100M160

It is engineered for industrial and commercial electrical protection, providing reliable fault isolation by breaking the circuit during overcurrent or short circuit conditions. The fuse features an offset tag design, enabling it to be securely bolted into fuse holders ensuring stable and safe installation.

The 100 ampere current rating and 415 volt AC rating make this fuse suitable for use in medium power applications including switchgear, wiring systems, and various electrical equipment. Its cylindrical form factor with precise dimensions - a diameter of 25.7 mm and overall length near 95 mm - fits standard British Standard Fuse holders ensuring compatibility and ease of replacement.

Designed to conform to the RoHS environmental directive and IEC 947-4 coordination for type 2 applications, the fuse supports three-phase systems and offers low power loss with typically 20% lower operating losses compared to baseline BS 88 requirements. The low temperature rise also facilitates compact and high-density mounting configurations.

Eaton Bussmann HRC fuses serve as essential safety devices acting as weak links that protect circuits and equipment by safely interrupting fault currents before damage or hazard occurs. This product is ideal for industrial electrical installations, switchgear assemblies, and commercial power distribution systems.

This fuse features a 100 ampere current rating suitable for medium power circuits. It operates at a voltage rating of 415 volts AC for compatibility with industrial systems. The offset tag design allows secure bolting to fuse holders for stable installation.

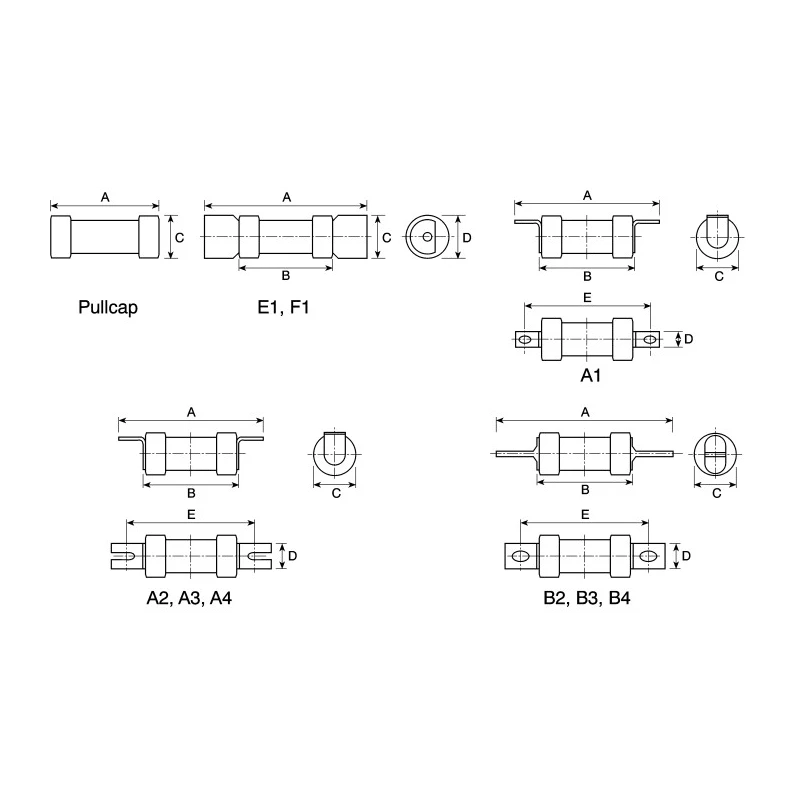

Compliant with RoHS standards, ensuring environmental safety. Has a tag width of 12.7 mm and fixing centers of 73 mm for mounting precision. The fuse body is cylindrical with 25.7 mm diameter and overall length of approximately 94.5 to 95 mm.

Uses Eaton Bussmann high rupture capacity technology for reliable fault protection. Suitable for three-phase and type 2 coordinated applications according to IEC 947-4 standards. Low temperature rise characteristic enables high-density mounting in electrical panels.

Ideal for use as a weak link in electrical installations to protect equipment and personnel from faults.
