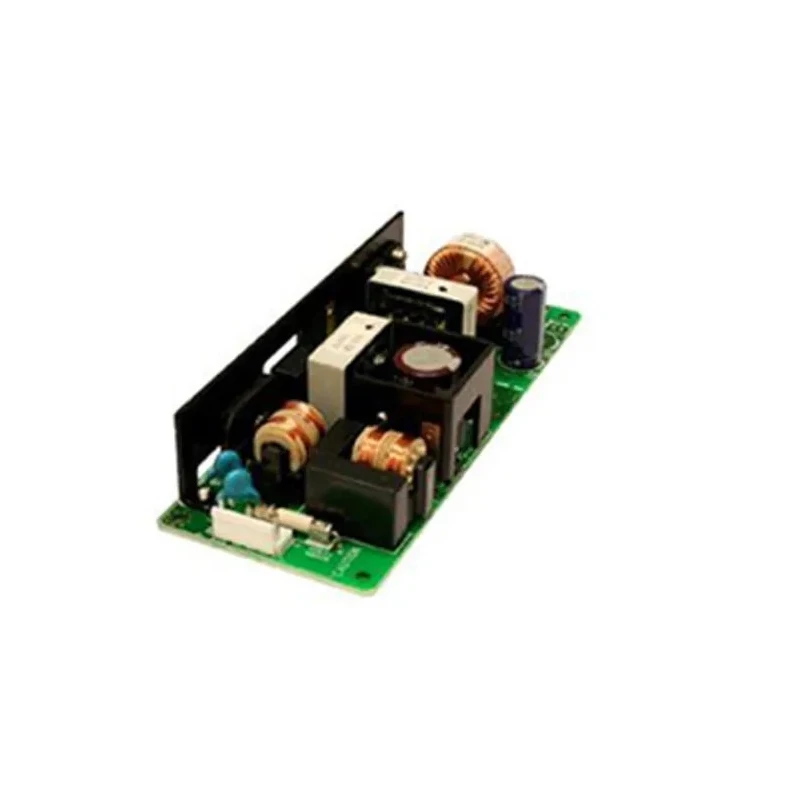

TDK-Lambda Switching Power Supply 5V DC, 75 W, 15 A Output, Chassis Mount, Malaysia ZWS75BAF-5/A

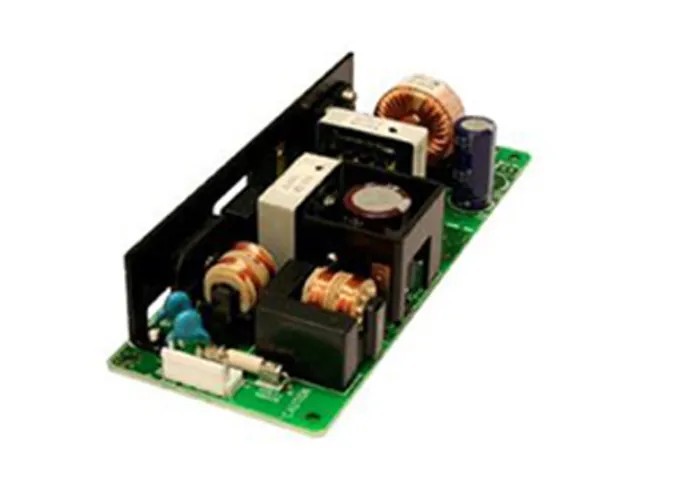

TDK-Lambda ZWS75BAF-5/A switching power supply is a compact and efficient AC-DC power supply unit designed for precise and reliable 5V DC output with a current rating of 15A and power capacity of 75W. It features a wide input voltage range, supporting 85V AC minimum to 370V DC maximum, including 265V AC input, making it highly versatile for varying industrial power environments.

The chassis mount type power supply has a compact form factor measuring 180mm in length, 45mm in width, and 45mm in depth. It weighs approximately 230 grams and operates efficiently with an efficiency rating of 84%, enhanced by active power factor correction to minimize power losses and optimize energy usage.

This model supports a broad operating temperature range from -10°C up to 70°C, allowing it to perform reliably in demanding industrial and factory automation environments. It is convection cooled and includes protections against over current and over voltage scenarios to safeguard connected equipment.

The power supply complies with numerous international EMC and safety standards including CE, EN 55011, EN 55022-B, FCC Class B, IEC/UL/CSA/EN 62368-1, and others, ensuring robust electromagnetic compatibility and safe operation.

Typical applications for the ZWS75BAF-5/A include factory automation systems, test and measurement devices, LED signage, and other light industrial equipment where reliable, stable power is critical. It offers 3kVac isolation between input and output and meets PFC compliance of EN61000-3-2 standards.

Wide input voltage range from 85V AC to 370V DC, 265V AC. Compact chassis mount design suitable for varied industrial installations. High efficiency and active power factor correction for energy saving. Comprehensive safety and EMC approvals for industrial reliability.

Temperature range from -10°C to 70°C supports harsh environments. Over current and over voltage protection included for device safety. Convection cooled design eliminates need for additional fans. 3kVac input to output isolation ensures equipment safety.

Complies with EN61000-3-2 PFC standards ensuring power quality. Explore more power supplies and industrial electrical components on EnvMart for your applications.
