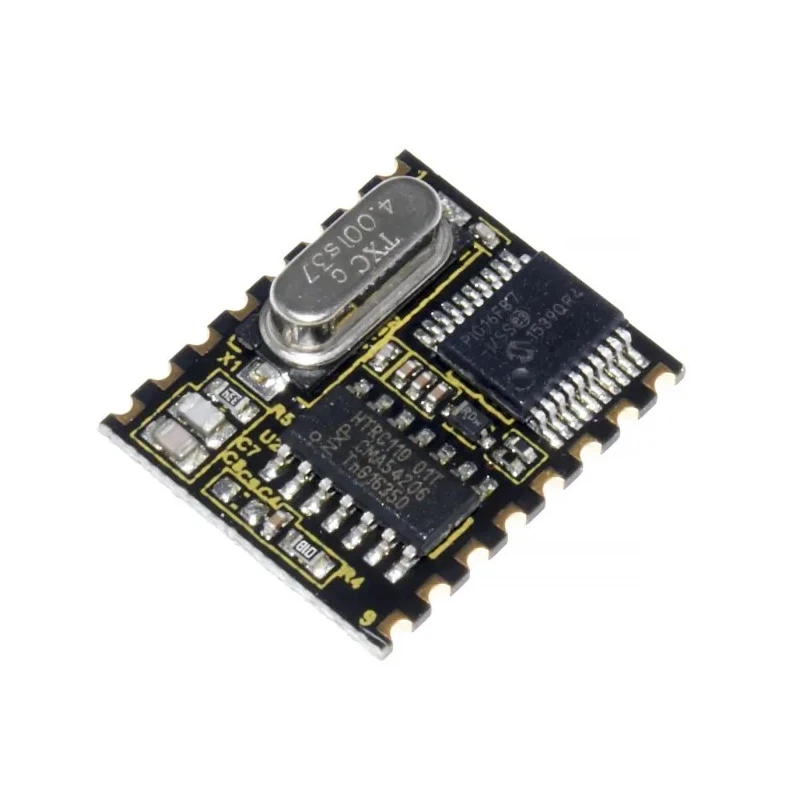

Eccel Technology Ltd RFID Module Low Power Surface Mount ASK Modulation Manchester Coding 125 kHz 5V RWD-QT-LP-SMT (000327)

Eccel Technology Ltd RWD-QT-LP-SMT (000327) is a low power RFID module designed for surface mount technology (SMT) applications. This RFID module operates at a frequency of 125 kHz using ASK modulation and Manchester coding, supporting a variety of transponders such as HitagS256, HitagS2048, Hitag1, Hitag2, and EM4XXX series. It is optimized for use in modern printed circuit boards due to its compact SMT packaging with dimensions of 17.4 mm in length and 20.7 mm in width.

The module requires a nominal supply voltage of 5V, balancing performance and power efficiency. It supports multiple interface types including RS232, TTL, and SPI, providing flexibility for integration into communication and control systems. The device guarantees reliable operation across a wide temperature range from -40°C to 85°C, making it suitable for industrial, commercial, and laboratory applications.

This RFID module allows a maximum RF data rate of 4 kbps, enabling efficient wireless data transfer for identification and authentication tasks. It is intended for evaluation and development purposes in conjunction with the RWD-QT-SMT baseboard, simplifying prototyping and testing.

The module’s low power consumption and versatile interface options make it an ideal choice for applications in access control systems, asset tracking, industrial automation, and other RFID-enabled solutions. Its surface mount design supports compact and streamlined PCB layouts, which is critical in modern electronics manufacturing.

Supports multiple transponders: HitagS256, HitagS2048, Hitag1, Hitag2, EM4XXX. Operates on 5V supply for low power usage. Surface mount packaging for modern PCB integration. Multiple interfaces including RS232, TTL, and SPI.

Wide operating temperature range from -40°C to 85°C. Maximum RF data rate of 4 kbps. Compact dimensions: 17.4mm length × 20.7mm width. Designed for evaluation and development with specific baseboard compatibility.

This RFID module is suited for industrial automation, security, and communication applications requiring reliable low-frequency RFID solutions. Explore the extensive range of RFID Modules from leading manufacturers at EnvMart for enhanced system design and integration.
