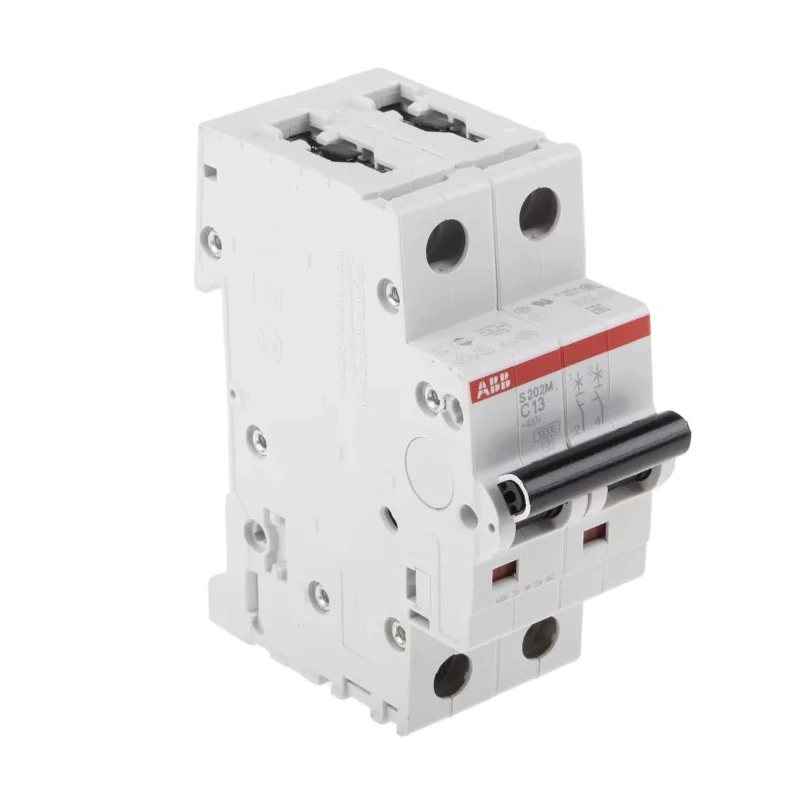

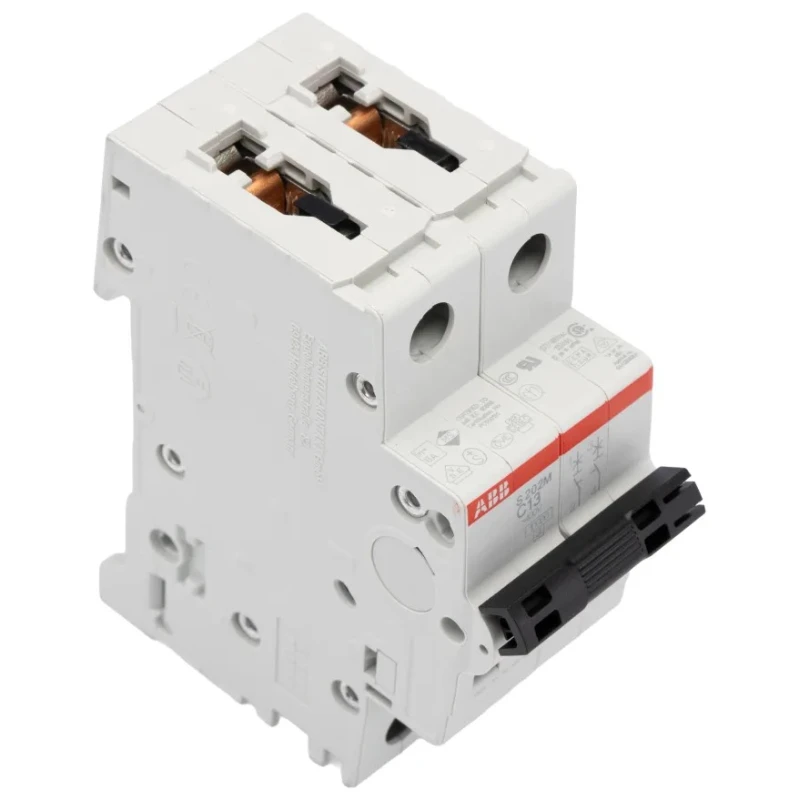

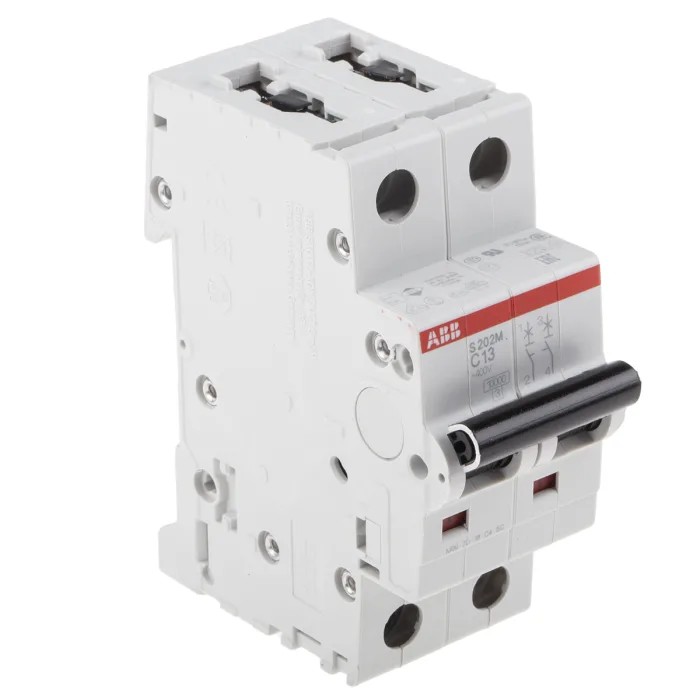

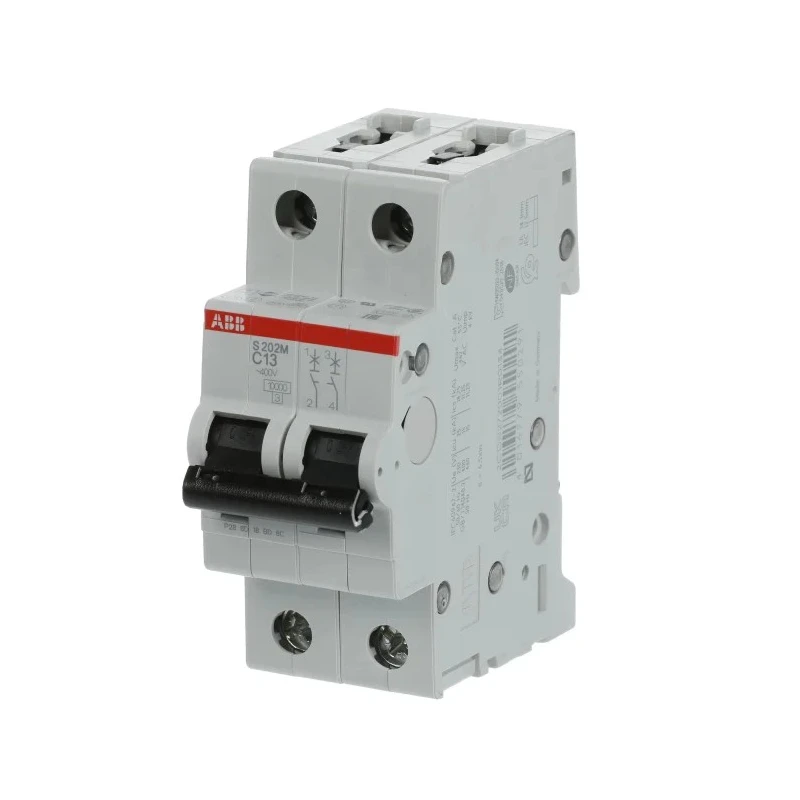

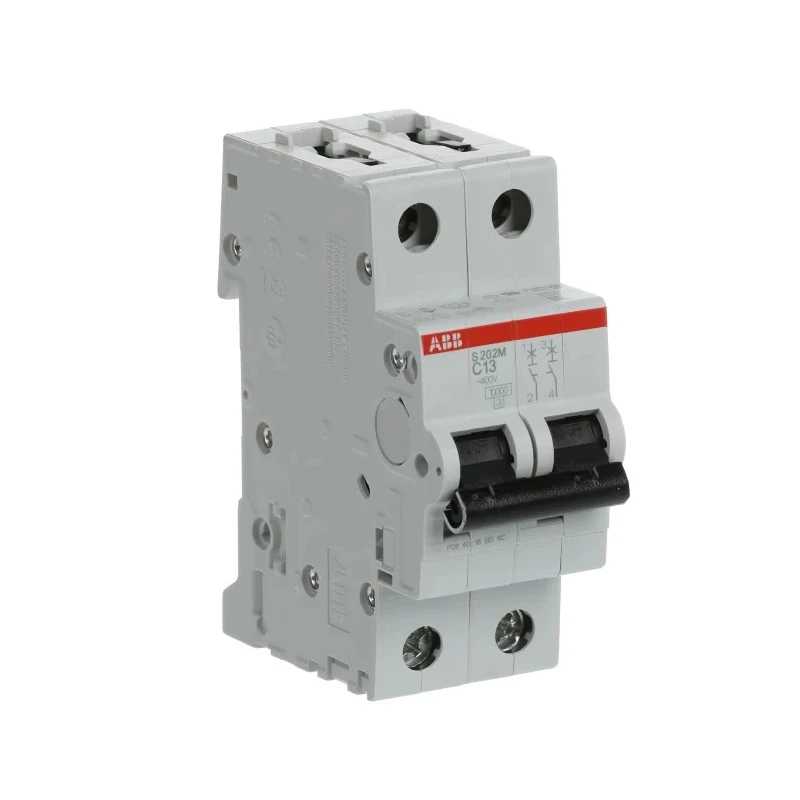

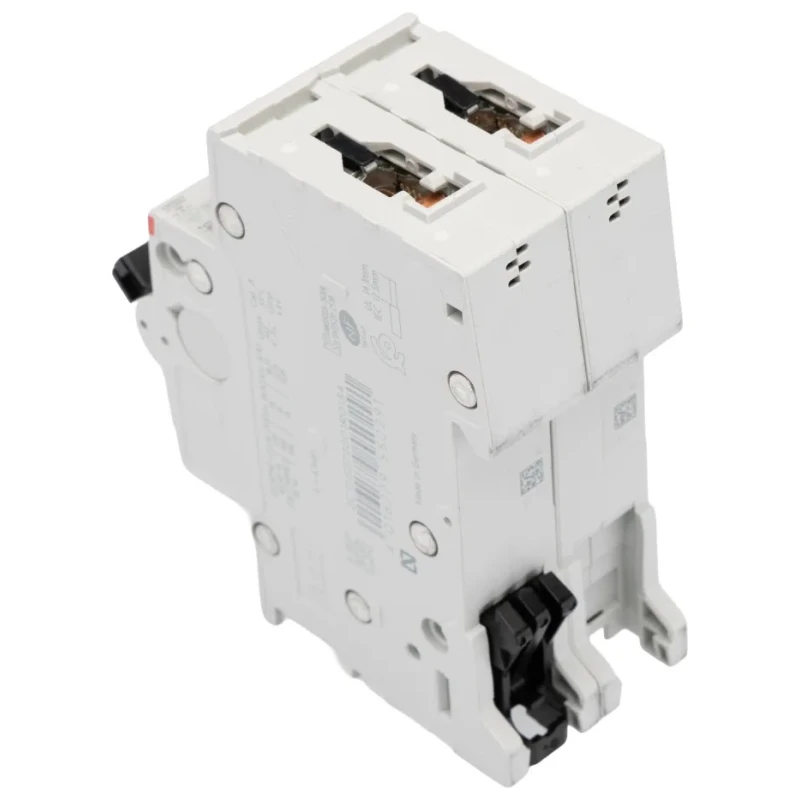

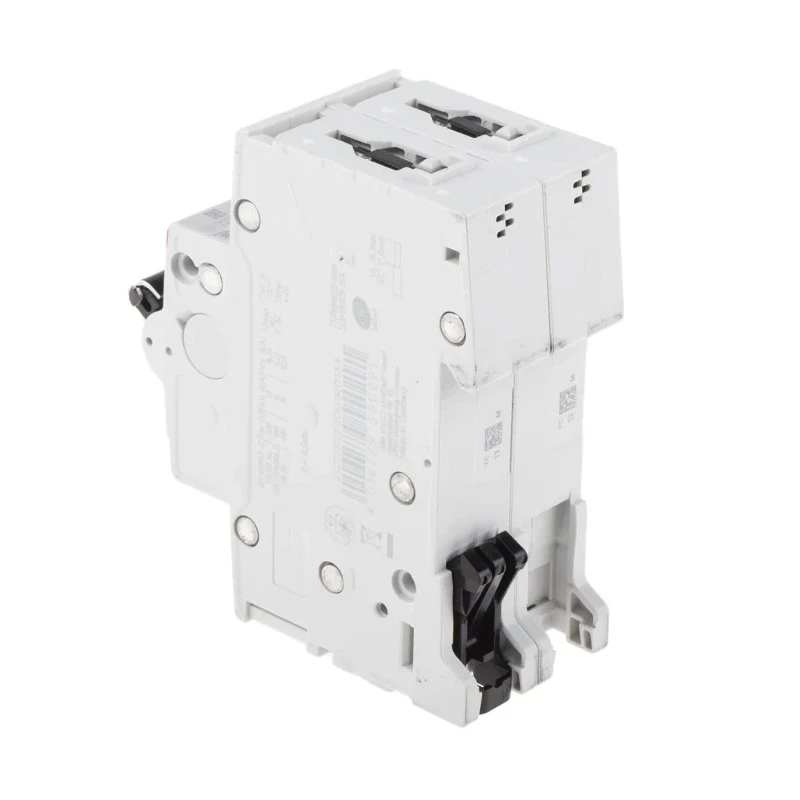

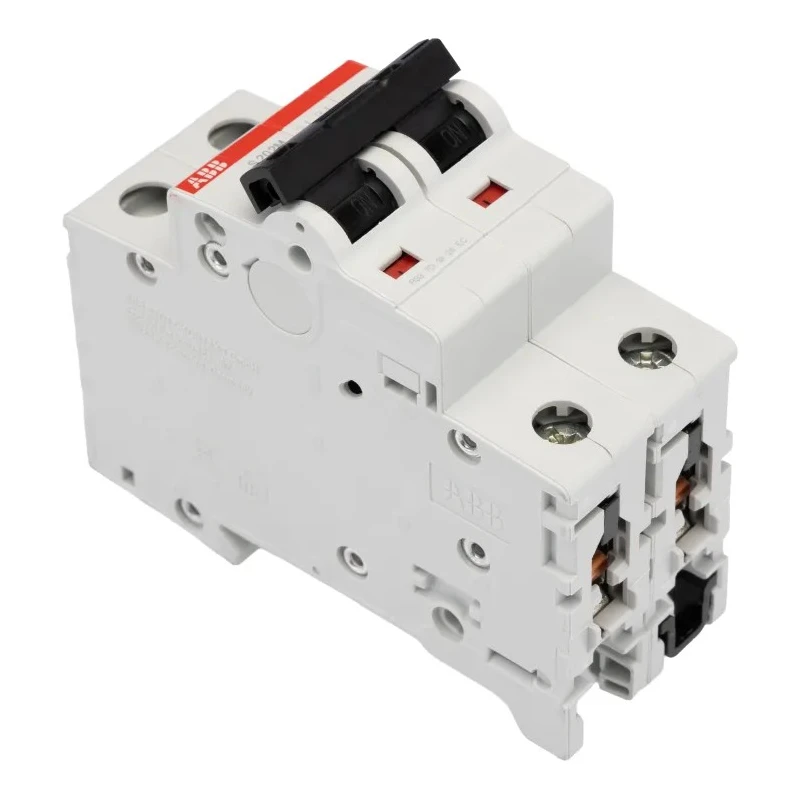

ABB System Pro M Compact S200M Miniature Circuit Breaker, 2-Pole, 13A, Type C, 440V AC, 125V DC 2CDS272001R0134 S202M-C13

ABB 2CDS272001R0134 S202M-C13 System Pro M Compact S200M Miniature Circuit Breaker is a new, high-performance protective device for electrical circuits, providing 2-pole protection with a current rating of 13A. This MCB supports both AC and DC systems, rated for 440V AC and 125V DC respectively, ensuring versatility in various electrical installations.

Engineered with a Type C tripping characteristic, it delivers delayed tripping for overload conditions, making it ideal for circuits supplying inductive loads like motors and transformers. The combination of electromagnetic and thermomagnetic tripping mechanisms provides enhanced safety and fast response to fault currents.

Compact and designed for DIN rail mounting, its dimensions (35mm width, 111mm height, and 69mm depth) facilitate space-efficient panel installations. The device is fitted with a toggle switch actuator that allows easy manual reset after tripping events.

Rated with a high breaking capacity of 10 kA, this miniature circuit breaker reliably interrupts fault currents, minimizing risk to connected equipment. It meets stringent IEC/EN 60947-2 and IEC/EN 60898-1 standards, confirming its quality and compliance for both industrial and residential electrical applications.

The unit features an IP20 and IP40 protection rating, providing resistance against penetration by solid foreign objects and certain liquid exposure, suitable for indoor use in electrical panels. Manufactured in Germany, it also emphasizes sustainability with design-for-disassembly principles, aligning with environmental responsibility goals.

Designed for DIN rail mounting with compact dimensions of 35mm width, 111mm height, and 69mm depth. Provides a high breaking capacity of 10 kA for safe circuit protection. Supports rated voltages up to 440V AC and 125V DC.

Features electromagnetic and thermomagnetic tripping mechanisms for reliable overload and short-circuit protection. Compliant with IEC/EN 60947-2 and IEC/EN 60898-1 standards ensuring wide industrial applicability. Includes a toggle switch reset actuator for easy operation.

Offers IP20 and IP40 ratings for protection against solid objects and certain liquids. Manufactured in Germany with a design focus on sustainability and disassembly.

This miniature circuit breaker is suitable for electrical distribution in residential, commercial, and industrial settings where reliable overload and short-circuit protection are required. Typical applications include general purpose lighting, power outlets, small motor protection, and industrial control panels.
