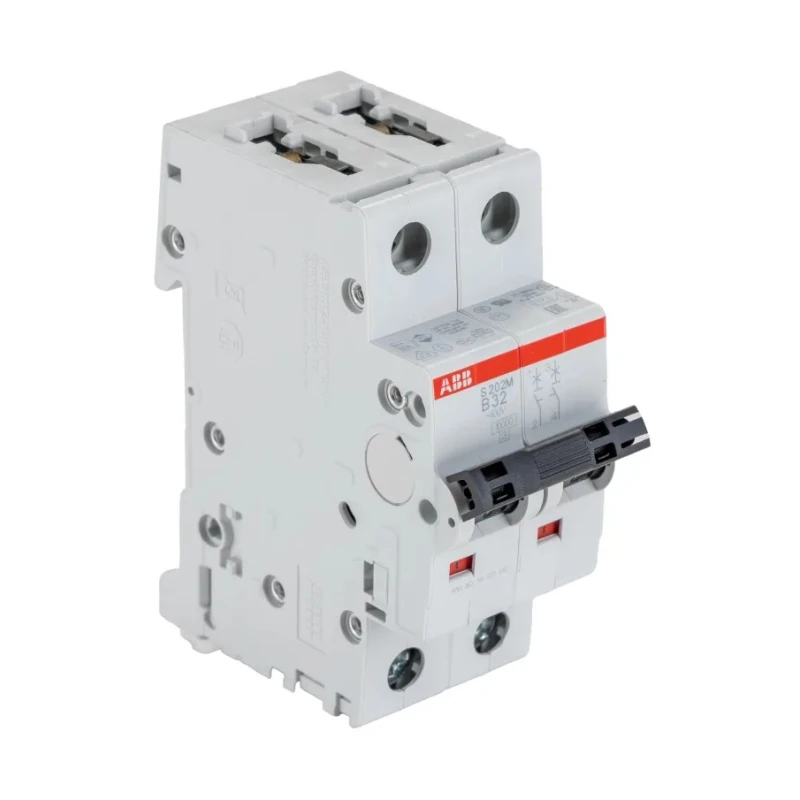

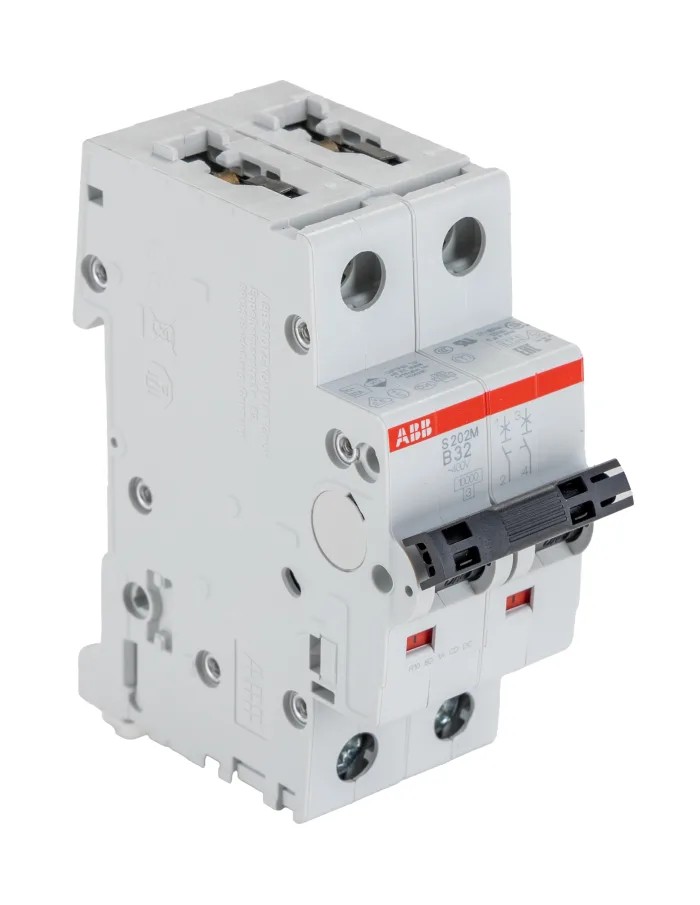

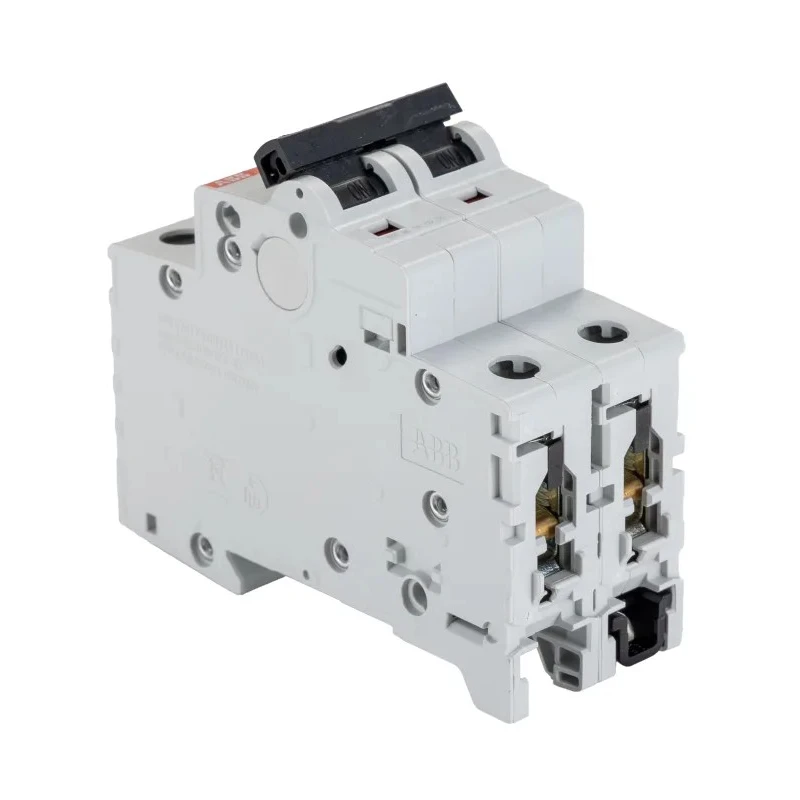

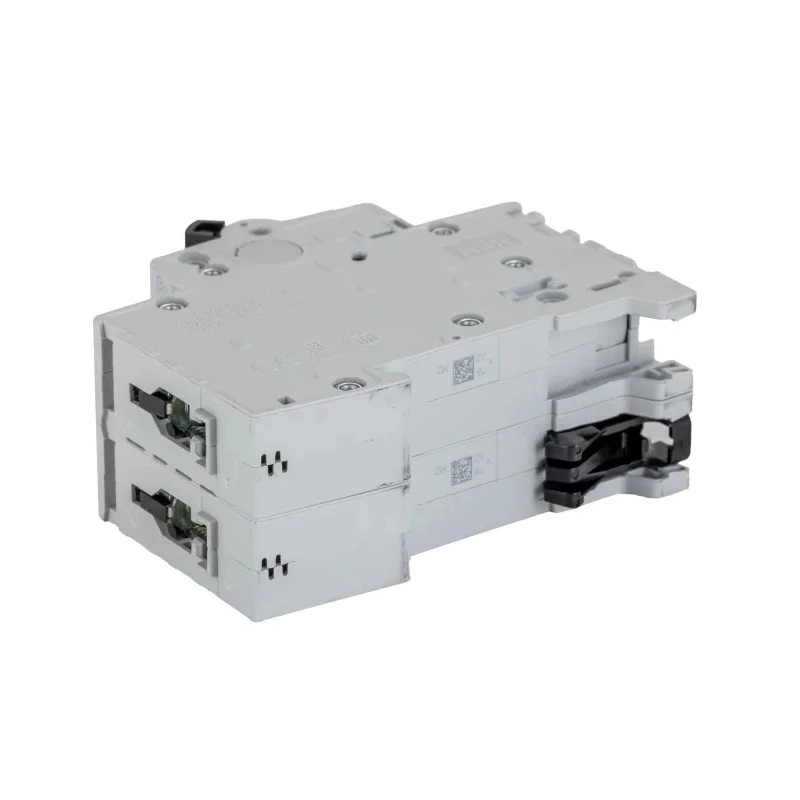

ABB System Pro M Compact S200M Miniature Circuit Breaker, 2-Pole, 32A, Type B, 440V AC, 125V DC 2CDS272001R0325 S202M-B32

ABB 2CDS272001R0325 S202M-B32 System Pro M Compact Miniature Circuit Breaker offers high-quality circuit protection for commercial and industrial electrical installations. Rated at 32A with 2 poles, this breaker supports both AC and DC voltage applications, providing flexibility and reliability in diverse electrical environments.

Operating at rated voltages of 440V AC and 125V DC, it features a robust breaking capacity of 10 kA, safeguarding circuits against short circuits and overload conditions with its electromagnetic and thermomagnetic tripping mechanisms. The screw-type terminals ensure secure wiring connections, while the compact form factor allows easy installation on standard DIN rails, optimizing electrical panel space.

The device conforms to IEC/EN 60898-1 and IEC/EN 60947-2 standards, assuring compliance and safety, and it has IP40 and IP20 ingress protection ratings suitable for most industrial environments. With dimensions of 88mm in height, 35mm in width, and 69mm in depth, it is designed for efficient space management.

The toggle switch actuator simplifies manual operation and resetting, enhancing usability. This breaker is part of ABB's Better World product range, designed for disassembly to promote sustainability by facilitating recycling and reuse of materials.

Applications include installation in commercial, industrial, and manufacturing electrical systems requiring reliable circuit protection aligned with international electrical standards.

Supports AC and DC voltage ratings of 440V AC and 125V DC. Breaking capacity of 10 kA for enhanced circuit safety. Thermal-magnetic trip mechanism for overload and short circuit protection. Screw terminal design ensures strong and secure connections.

Compliance with IEC/EN 60898-1 and IEC/EN 60947-2 for international standards. Compact DIN rail mounting suitable for electrical panels. IP40 and IP20 protection class for resistance against ingress. Compact dimensions (88mm x 35mm x 69mm) for space-saving use.

Toggle switch actuator for easy control and reset. Designed for disassembly to support sustainability.

Explore more from ABB’s System Pro M Compact series to find circuit breakers tailored for diverse industrial and commercial applications with high reliability and safety standards.
