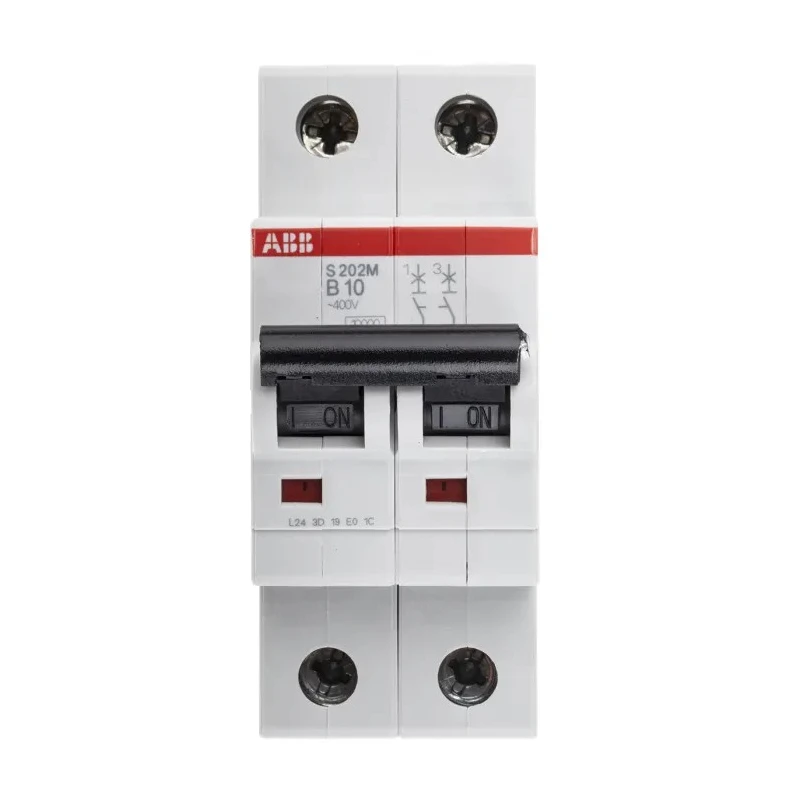

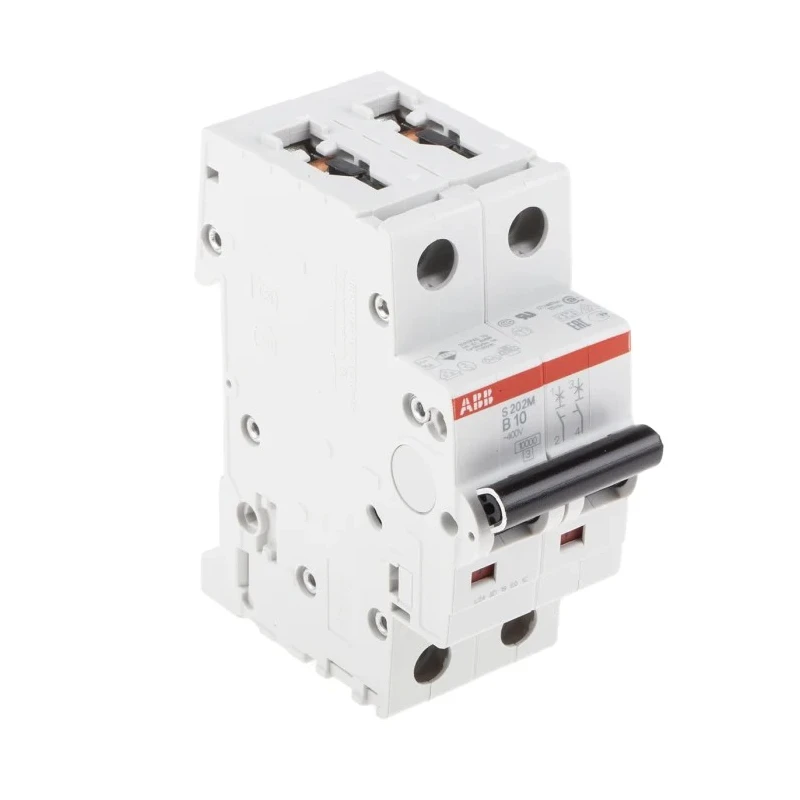

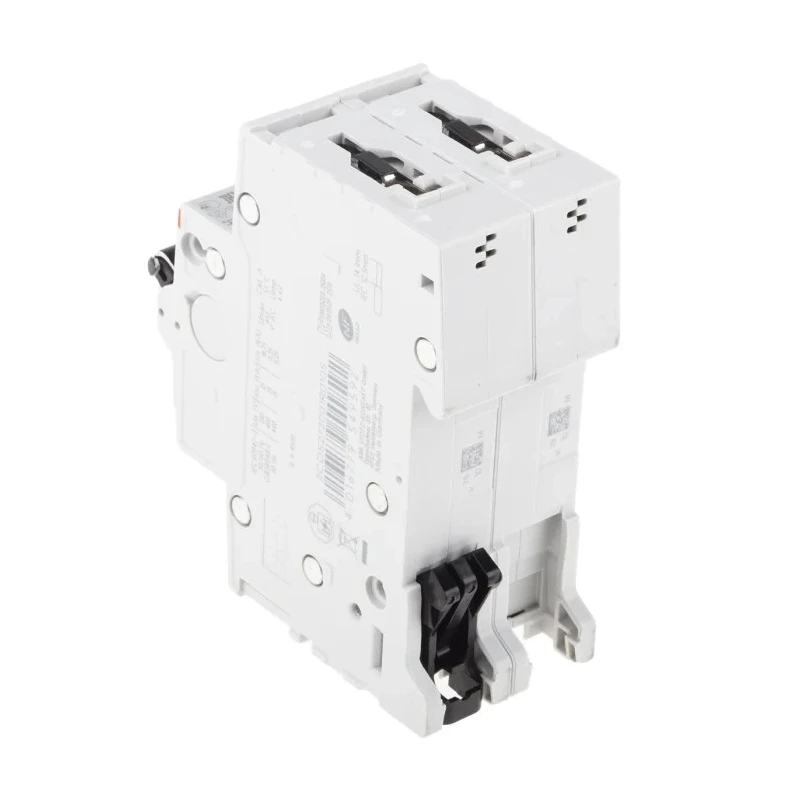

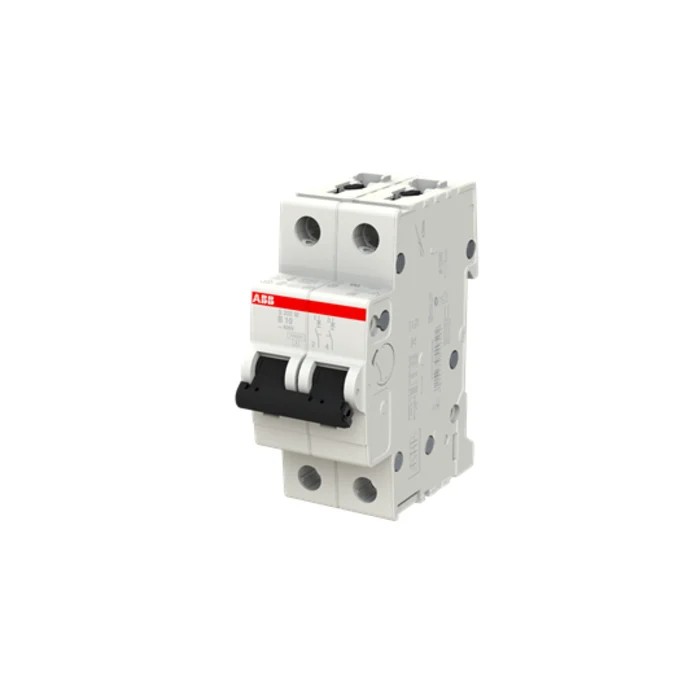

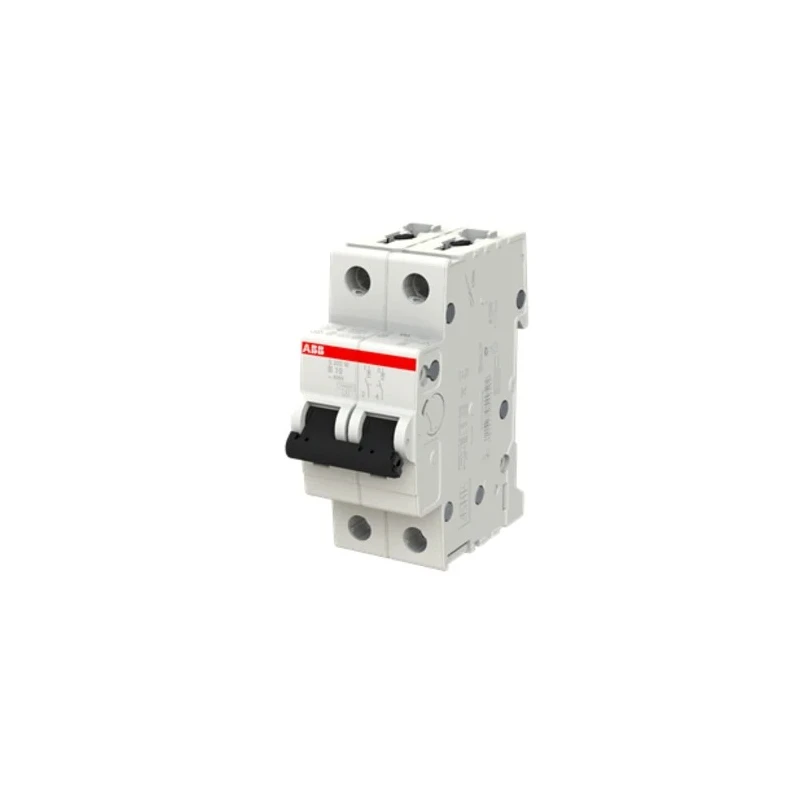

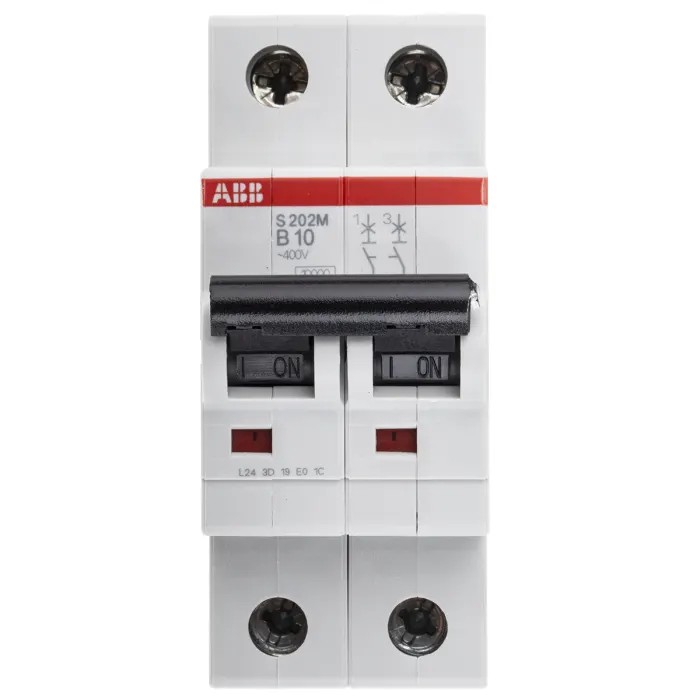

ABB System Pro M Compact S200M 2-Pole Miniature Circuit Breaker 10A Type B 440V AC 125V DC 10kA 2CDS272001R0105 S202M-B10

ABB 2CDS272001R0105 S202M-B10 is a 2-pole miniature circuit breaker from the System Pro M Compact S200M series designed for reliable electrical protection in residential, commercial, and industrial installations. It operates at a rated current of 10A with type B tripping characteristics, making it ideal for protecting domestic circuits and low-voltage industrial machinery.

This compact MCB supports rated voltages of 440V AC and 125V DC, providing versatile usage across AC and DC circuits. Its dual trip mechanism combines a thermal delayed overload protection and an electromagnetic short circuit protection, ensuring quick and efficient shutdown during electrical faults.

The breaker features durable thermoplastic housing and retains strong electrical and mechanical endurance through 20,000 cycles. The cage terminal design allows for secure, fail-safe connections, suitable for various wiring configurations. With an IP rating of IP40 and IP20, the device is protected against accidental contact and solid particle ingress.

The System Pro M Compact series supports DIN rail mounting to enable a space-saving, modular electrical installation. The miniature circuit breaker complies with international IEC/EN 60947-2 and IEC/EN 60898-1 standards, ensuring adherence to rigorous safety and performance criteria for low-voltage circuit breakers.

Its compact dimensions (88mm height, 35mm width, 76mm depth) and straightforward toggle switch marked with ON/OFF LED indicators allow easy status recognition and installation. Thermomagnetic and electromagnetic trip mechanisms for overload and short circuit protection.

Electrical and mechanical endurance rated for 20,000 cycles. Bi-directional cylinder-lift cage terminals ensure safe connections. Compact dimensions support space-efficient DIN rail mounting. Compliance with IEC/EN 60947-2 and IEC/EN 60898-1 standards.

Breaking capacity of 10 kA accommodates common residential and industrial fault conditions. Type B tripping curve protects loads with a trip current 3 to 5 times rated current.

This ABB MCB is suitable for use in low-voltage industrial machinery, residential buildings, offices, and retail shops. It provides dependable protection to avoid damage and hazards caused by electrical overloads or short circuits. For professionals seeking compact and efficient circuit protection solutions, this Miniature Circuit Breaker offers a robust and compliant choice.
