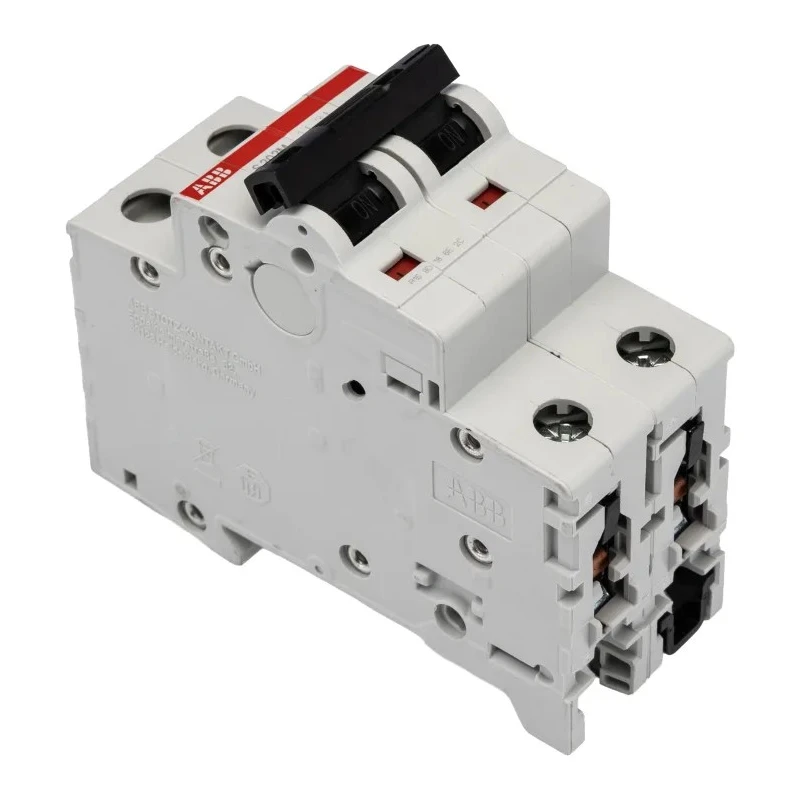

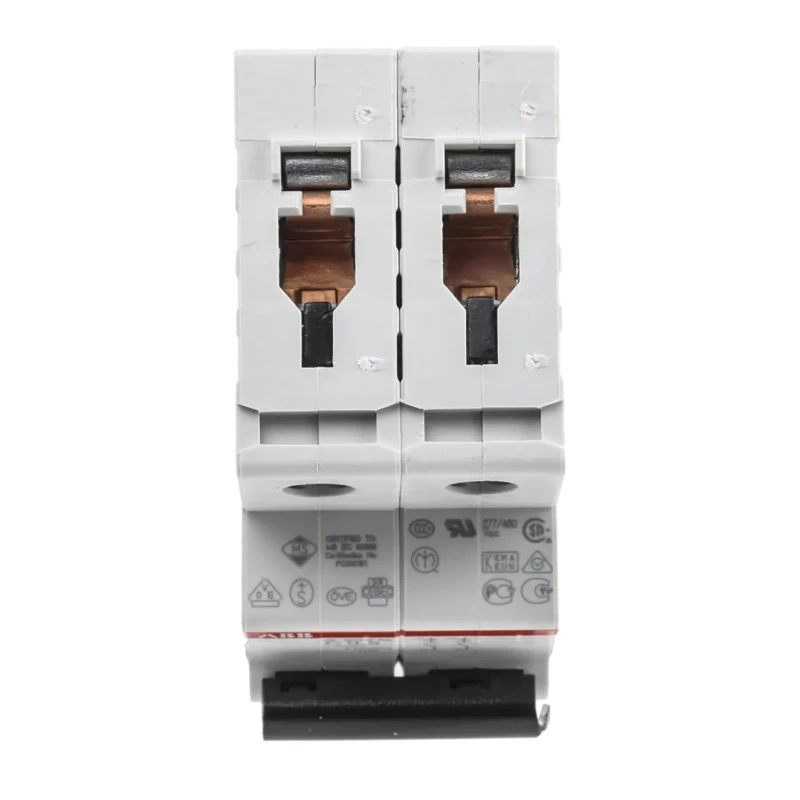

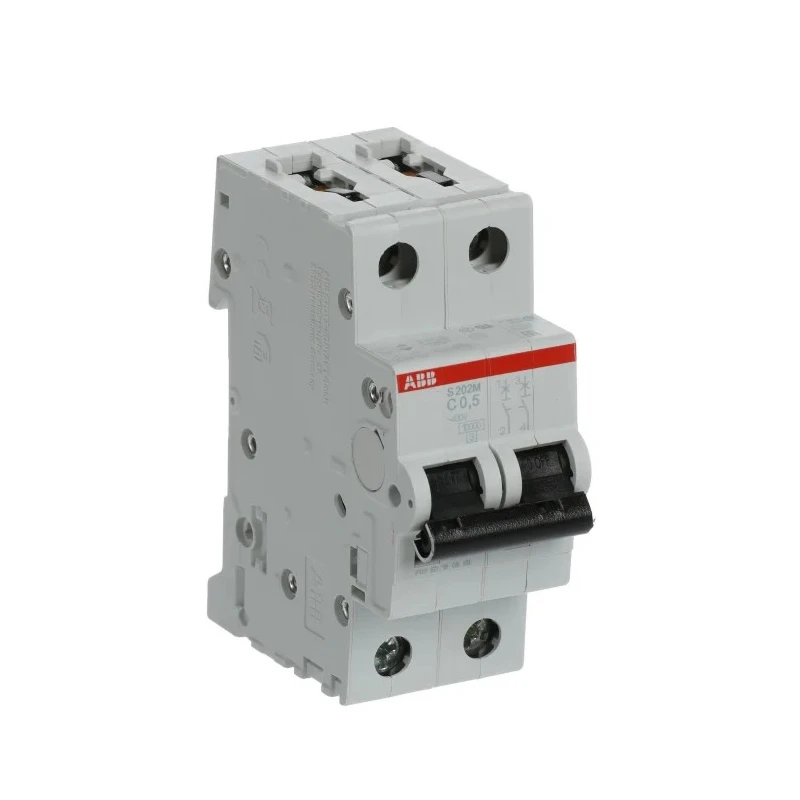

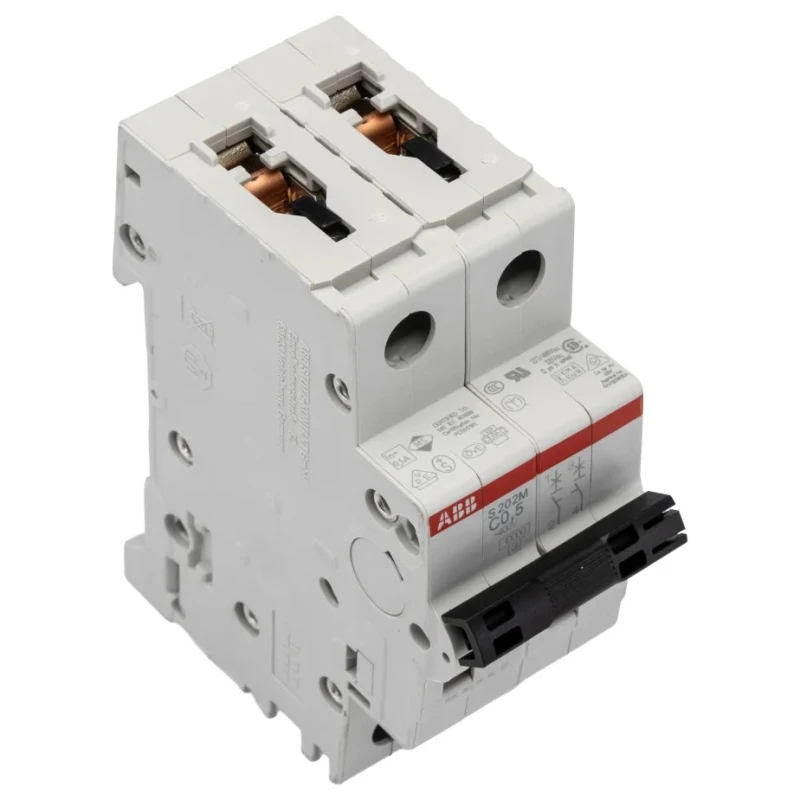

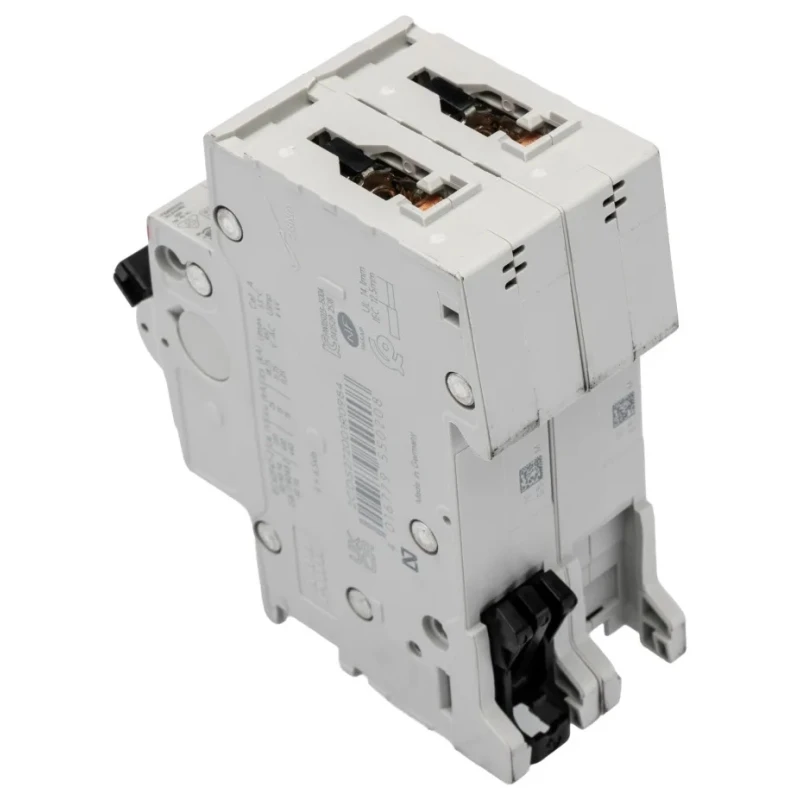

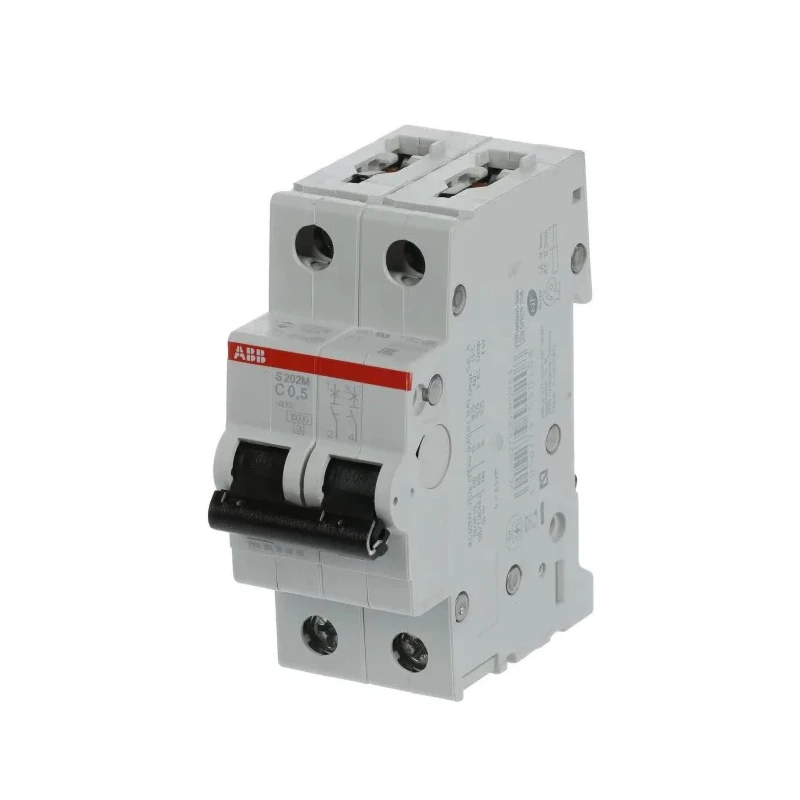

ABB System Pro M Compact 2-Pole Miniature Circuit Breaker 500mA Type C 440V AC 125V DC 10kA 2CDS272001R0984 S202M-C0,5

ABB 2CDS272001R0984 S202M-C0,5 Miniature Circuit Breaker is a compact 2-pole device engineered to protect electrical circuits from overloads and short circuits. With a current rating of 500mA and type C tripping characteristics, it is tailored for residential and light industrial applications requiring reliable circuit protection.

Featuring a combination of thermomagnetic and electromagnetic tripping mechanisms, this breaker ensures rapid response to faults. It operates efficiently under both AC and DC conditions up to 440V AC and 125V DC respectively, meeting diverse electrical system requirements.

The device has a compact form factor measuring 35mm wide, 88mm high, and 69mm depth, facilitating optimal space utilization in electrical panels. Its DIN rail mount compatibility allows for easy installation and maintenance in distribution boards.

Manufactured according to IEC/EN 60898-1 and IEC/EN 60947-2 standards, this breaker demonstrates high quality and safety compliance. The 10kA breaking capacity supports dependable fault clearing capability in demanding electrical environments.

Additional features include IP40 and IP20 ingress protection, screw terminal connectors for robust wiring, and a toggle switch actuator type for easy manual operation. The product is marked as a Better World product with design considerations for disassembly, aligning with sustainability efforts.

Designed with a thermomagnetic and electromagnetic tripping mechanism for optimal safety. Supports dual voltage operation at 440V AC and 125V DC. Features a high breaking capacity of 10kA ensuring dependable performance.

Compact design with 35mm width fits standard DIN rail mounts for easy installation. Complies with IEC/EN 60898-1 and IEC/EN 60947-2 standards for durability and quality. IP40 and IP20 ratings provide protection against solid objects and limited ingress of dust.

Equipped with screw terminal types for secure electrical connections. Toggle switch actuator offers straightforward manual control.

This Miniature Circuit Breaker is ideally suited for residential electrical distribution and industrial machinery protection. It ensures safe and reliable circuit operation across diverse applications, including automation and building electrical systems. Explore EnvMart’s selection for more advanced electrical protection solutions.
