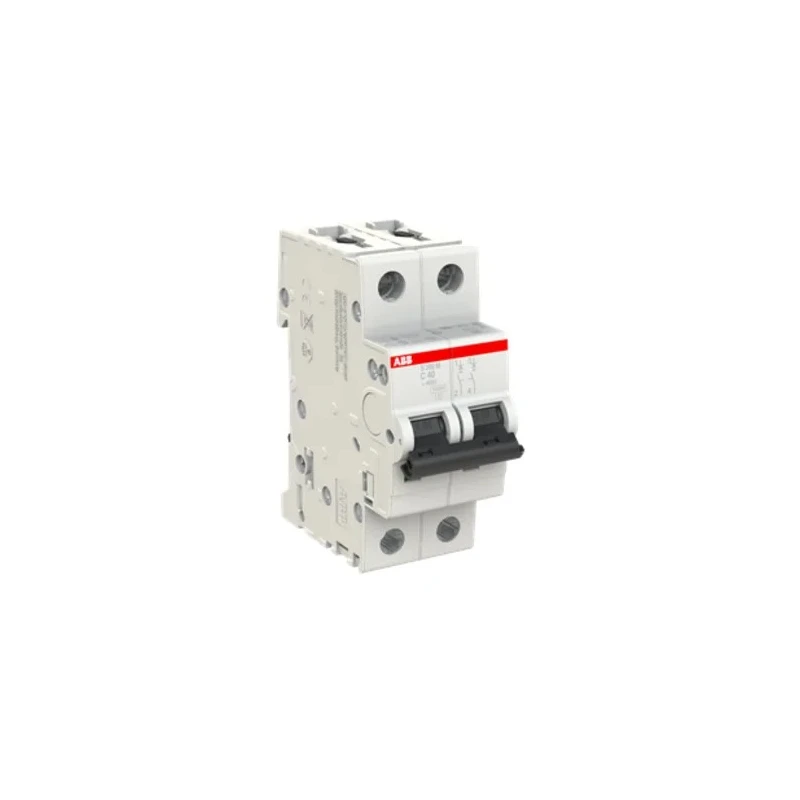

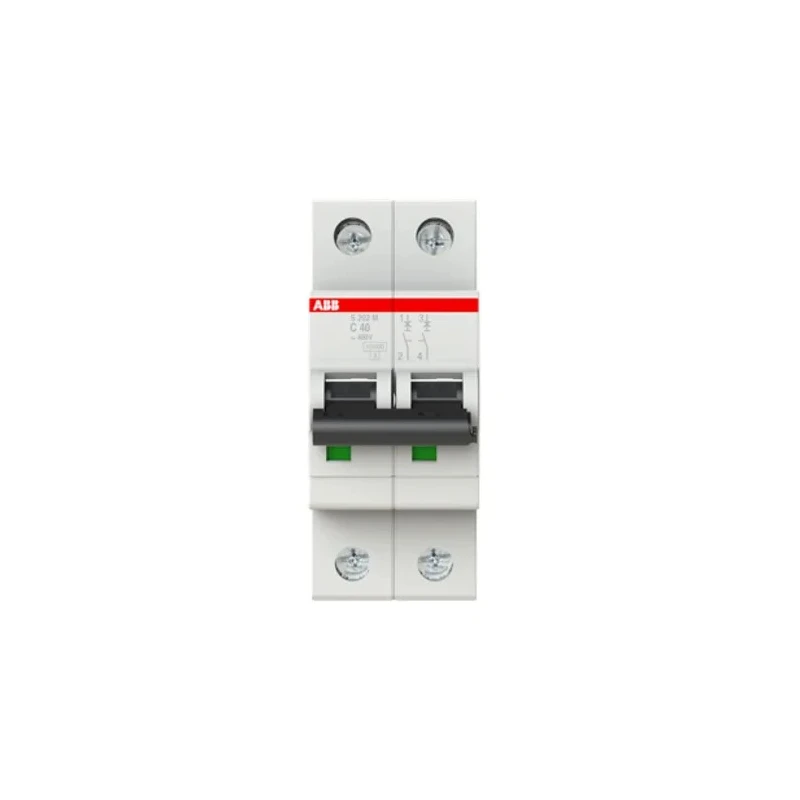

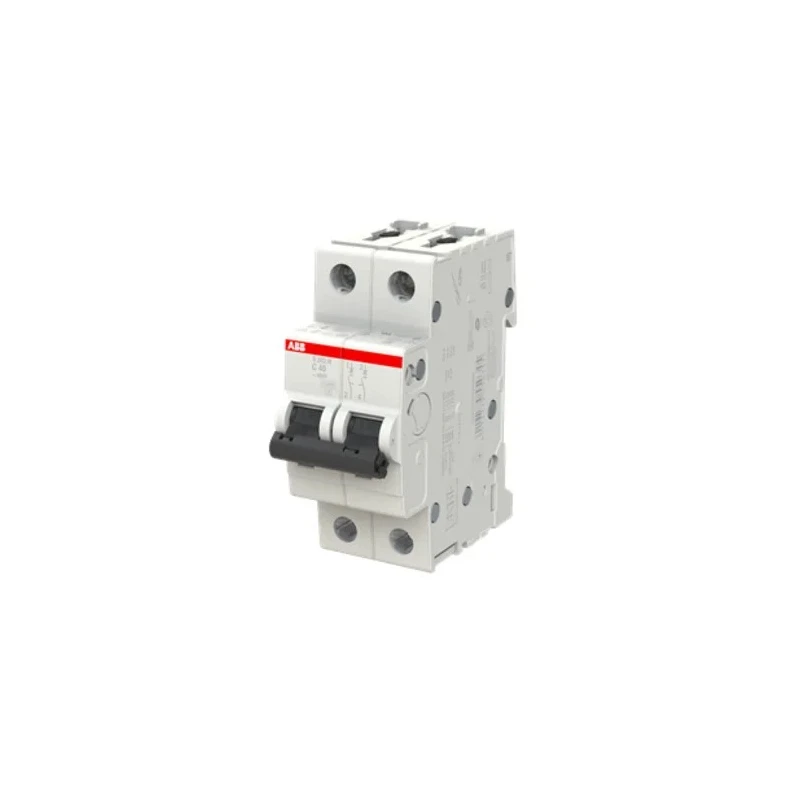

ABB System Pro M Compact Miniature Circuit Breaker 2 Poles 40A Type C 440V ac 125V dc 10kA 2CDS272001R0404 S202M-C40

ABB 2CDS272001R0404 S202M-C40 Miniature Circuit Breaker is part of the System Pro M Compact S200M series, specifically engineered to provide robust circuit protection for a wide range of electrical applications. This 2-pole MCB is designed to handle a current rating of 40A with Type C tripping characteristics, making it suitable for protecting electrical circuits against overloads and short circuits in industrial, commercial, and residential settings.

This compact circuit breaker operates reliably at rated voltages of 440V AC and 125V DC, supporting both AC and DC electrical systems. Its high breaking capacity of 10kA ensures enhanced safety by effectively interrupting fault currents to prevent damage to wiring and connected equipment.

The device features screw terminals that guarantee secure electrical connections and is designed for installation on standard DIN rails, ensuring easy integration into existing switchgear and distribution boards. With dimensions of 111mm height, 35mm width, and 76mm depth, it minimizes space usage without compromising performance.

Certified to meet IEC/EN 60898-1 and IEC/EN 60947-2 standards, the MCB conforms to strict international safety and performance requirements. It carries IP20 and IP40 ratings, providing protection against accidental contact with live parts and limited ingress of dust, suitable for controlled indoor environments.

The thermomagnetic tripping mechanism combines thermal overload protection with magnetic short circuit protection, ensuring precise and reliable operation under varying electrical loads. The toggle switch reset actuator facilitates quick manual resetting after tripping events.

The Type C tripping characteristic ensures precise overcurrent and short circuit protection. Rated for 440V AC and 125V DC operation for versatile electrical environments. Boasts a breaking capacity of 10kA enhancing safety under fault conditions.

Designed for standard DIN rail mounting, allowing quick and secure installation. Compact dimensions save panel space effectively. Screw terminal type for firm and stable connections. Certified to IEC/EN 60898-1 and IEC/EN 60947-2 standards.

IP20 and IP40 rated protection. Thermomagnetic tripping mechanism for accurate response. Toggle switch reset actuator for easy manual operation.

This MCB is ideal for automation systems, electrical installations, electronics industry applications, and protection of mechanical equipment, offering a versatile and reliable solution for circuit safety. The ABB System Pro M Compact series continues ABB's commitment to quality and innovation in electrical protection devices.
