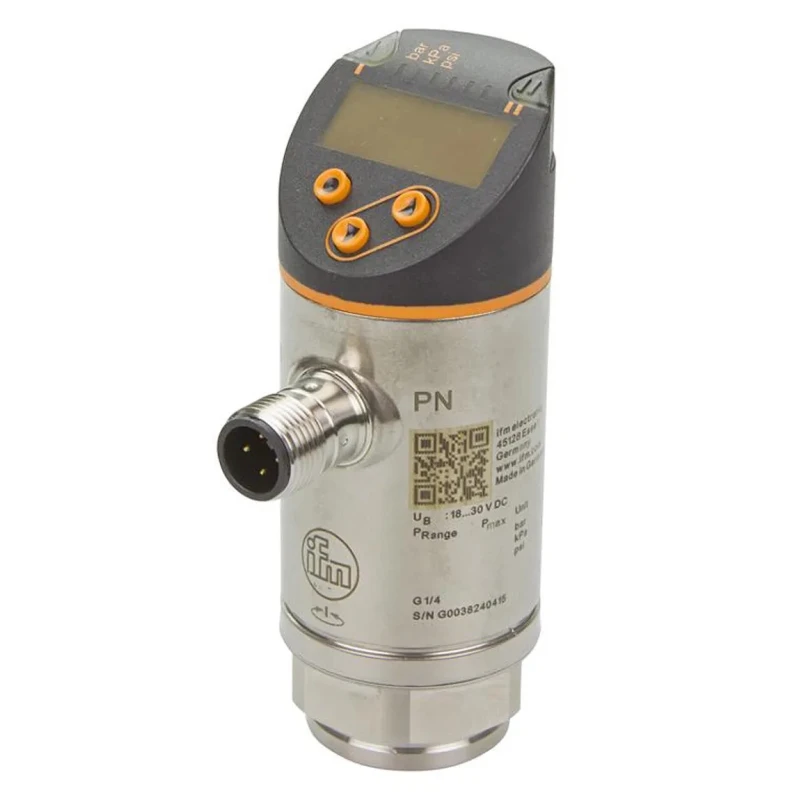

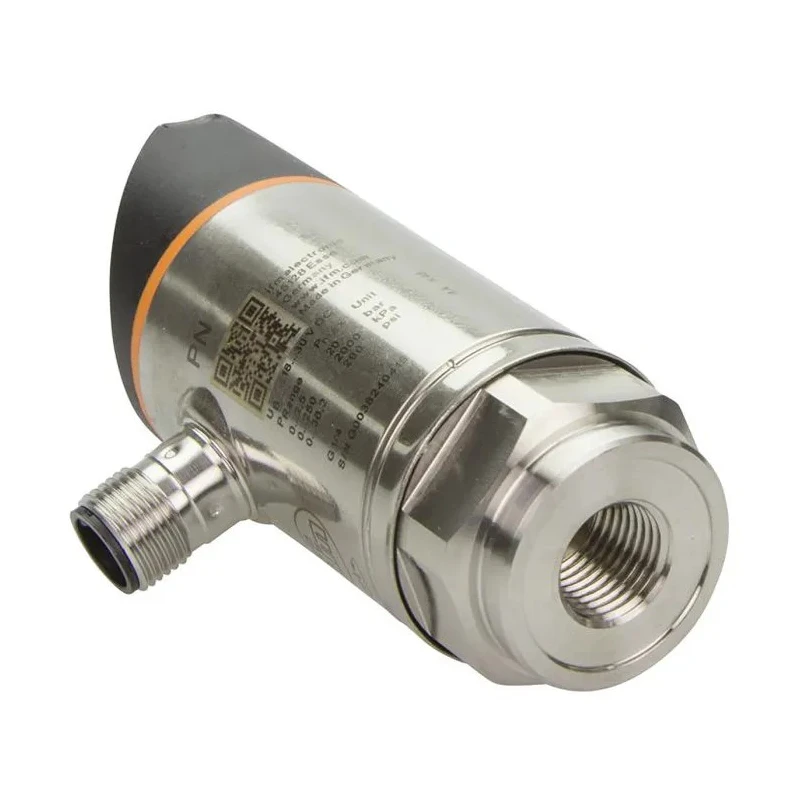

ifm electronic PN Series Pressure Sensor Analogue PNP NO/NC Output 0 bar to 100 bar Relative Reading PN3092

ifm electronic PN3092 is a high-performance pressure sensor designed for fluid pressure measurement applications requiring precise and reliable signal outputs. This sensor features analogue and PNP NO/NC output types, capable of measuring relative pressure from 0 bar to 100 bar with an accuracy of ±0.5%. It operates with a fast response time of 3 milliseconds and supports supply voltages from 18V to 30V DC. The sensor is housed in a durable fibreglass reinforced PBT GF30 casing combined with stainless steel, providing mechanical robustness and chemical resistance.

The device complies with rigorous industrial standards including DIN EN 61000-6-2, IEC 61131-9, and UL certifications, ensuring suitability for diverse industrial environments. Its IP65 and IP67 ratings offer effective protection against dust ingress and transient water immersion, making it ideal for harsh conditions. Temperature tolerance ranges from -25°C to 80°C, supporting a wide range of operational climates.

Key features include a stable ceramic measuring element that handles overpressure without damage, minimal zero offset and drift caused by ageing or temperature changes, and flexible output signalling. Signal damping and output delay facilitate control systems with steady and reliable pressure feedback. The PN3092 sensor series also provides a large bright 4-digit alphanumeric display with configurable visual switching indicators for operational status.

These pressure sensors are suited for industrial automation, hydraulic and pneumatic systems, and fluid monitoring in manufacturing, water treatment, and HVAC applications. The adaptable mounting design allows sensor rotation after fitting for ease of installation and optimal placement.

Dimensions, weight, and packaging details are managed separately. Provides a relative pressure reading with ±0.5% accuracy. Equipped with analogue output alongside PNP NO/NC switching output. Response time of 3 milliseconds ensures fast signal processing.

Operates within a supply voltage range of 18V to 30V DC. Robust housing made of fibreglass reinforced PBT GF30 and stainless steel provides durability. Meets multiple industrial standards including DIN EN 61000-6-2 and IEC 61131-9.

Has IP65 and IP67 ratings for dust and water resistance. Operates reliably in temperatures from -25°C to 80°C. Features stable ceramic measuring element tolerant to overpressure. Includes signal damping and output delay for accurate control response.
