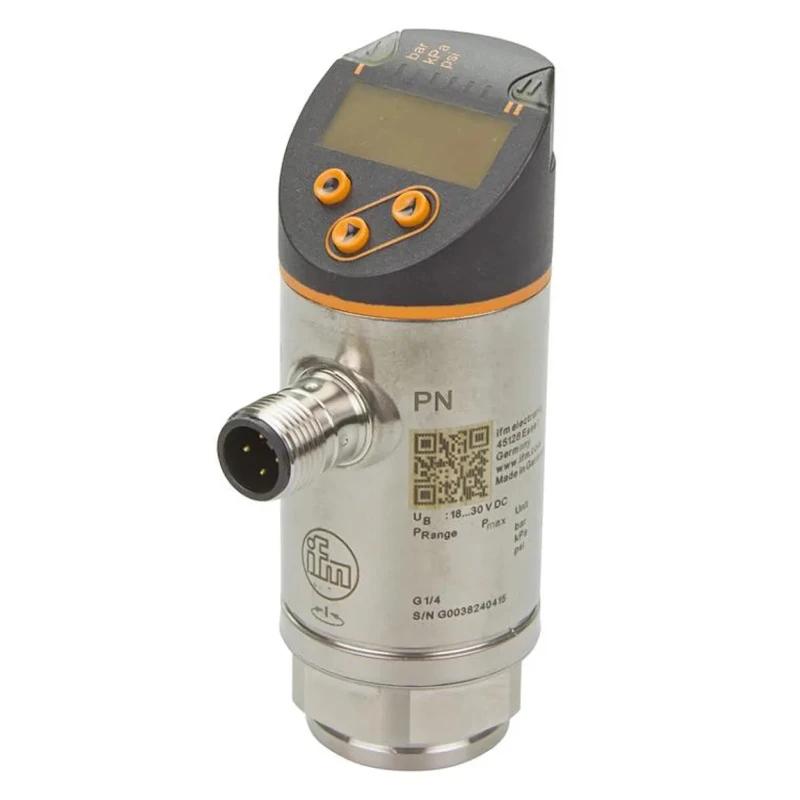

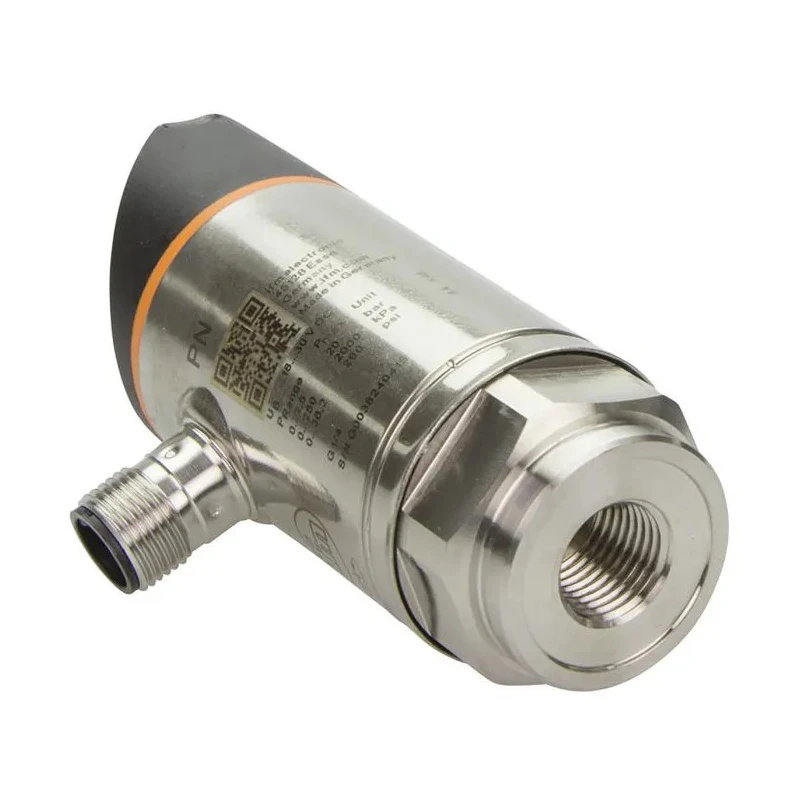

ifm electronic PN Series Pressure Sensor, Analogue, PNP NO/NC Output 0 bar Relative Reading 1 bar PN3097

ifm electronic PN3097 Pressure Sensor is a high precision analogue pressure sensor designed for fluid media with a measurable pressure range from 0 bar to 1 bar relative. The sensor outputs PNP NO (normally open) or NC (normally closed) signals suitable for industrial automation and control systems.

The sensor integrates a highly stable ceramic measuring element that ensures tolerance to overload pressures and maintains low zero offset and minimal drift due to ageing or temperature fluctuations. With a rapid response time of 3 milliseconds, it enables timely and accurate pressure monitoring.

Designed for robustness, the housing material combines fibreglass reinforced PBT GF30 with stainless steel, providing mechanical strength and resistance in harsh environments. The sensor carries IP65 and IP67 ingress protection ratings, making it suitable for applications exposed to dust and water.

Operating voltage ranges from 18 to 30 volts DC, providing flexibility in integration with various industrial power systems. The sensor is compliant with multiple industry standards including IEC 61131-9, DIN EN 60068 series, UL, and others ensuring reliable and safe operation across different applications.

The sensor supports IO-Link communication enabling independent configuration of set and reset points. It visually indicates switching states with clearly visible LEDs enhancing operational safety and monitoring. The device is suited for use in industrial, automation, hydraulic, pneumatic, and fluid measurement applications.

Rated for operation in environmental temperatures from -25°C to 80°C ensuring durability in diverse conditions. Ideal for laboratory, manufacturing, process control, and HVAC systems requiring precise pressure sensing.

This PN series sensor from ifm electronic provides flexible fitting with the ability to rotate sensor orientation post-installation. Its robust design and advanced measurement technology support continuous system pressure display with a bright 4-digit alphanumeric display (model dependent).

Equip your industrial automation or fluid pressure monitoring system with the reliable and precise ifm electronic PN3097 Pressure Sensor, optimized for longevity and performance. Explore more products in EnvMart’s Electronics & Electricals Sensors Pressure Sensors category for comprehensive pressure sensing solutions.
