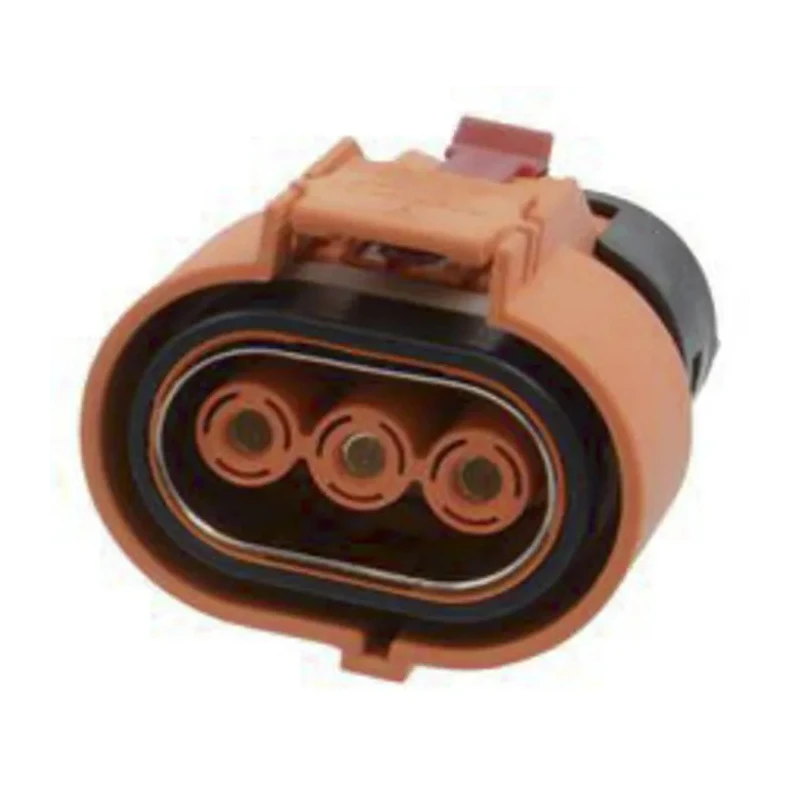

Amphenol Industrial Epower Lite RADSOK Plug with HVIL EV Connector Male 70A ELP2A03 / C10-738026-2AS3

Amphenol Industrial ELP2A03 / C10-738026-2AS3 is a high-performance Epower Lite RADSOK Plug with HVIL EV Connector designed for electric and hybrid vehicle applications. This connector supports a nominal current of 70A and an operating voltage of 800V, ensuring reliable power delivery in demanding automotive environments.

The compact and lightweight construction of the ePower-Lite series enhances system efficiency while maintaining durability. The connector features RADSOK technology providing low resistance, resulting in lower voltage drop and reduced temperature rise during operation. It is designed with a robust plastic housing that is flame retardant to UL 94 V-0 standard and offers protection against water ingress with an IP67 rating, making it suitable for harsh environments.

This connector is field-installable and repairable, featuring a Connector Position Assurance (CPA) to prevent mis-mating, ensuring safety and reliability. It employs a crimp termination suitable for 6mm² wire size and is intended for use with a 2 Position ePower-Lite Receptacle with HVIL. The connector is oriented straight with a male connector gender and female contacts, providing a secure and touch-proof connection compliant with IEC 60529.

With a height of 36.8mm, width of 41.8mm, and depth of 57.8mm, the connector fits easily in compact automotive system designs. The orange color enhances visibility during installation and maintenance while the Type A keying prevents incorrect connections.

This product is ideal for industrial automotive electrical connector applications, particularly in electric vehicle power delivery systems, renewable energy solutions, and hybrid vehicle assemblies.

Compact and lightweight hybrid electric vehicle connector with RADSOK technology. Supports a current rating of 70A and operating voltage up to 800V. Features waterproof IP67 rating and temperature resistance from -40°C to 125°C.

Durable design enables over 100 mating cycles with flame retardant UL 94 V-0 plastic housing. Connector has crimp termination and is field installable and repairable with CPA. Complies with IEC 60529 and UL 94 V-0 standards for safety and flammability.
