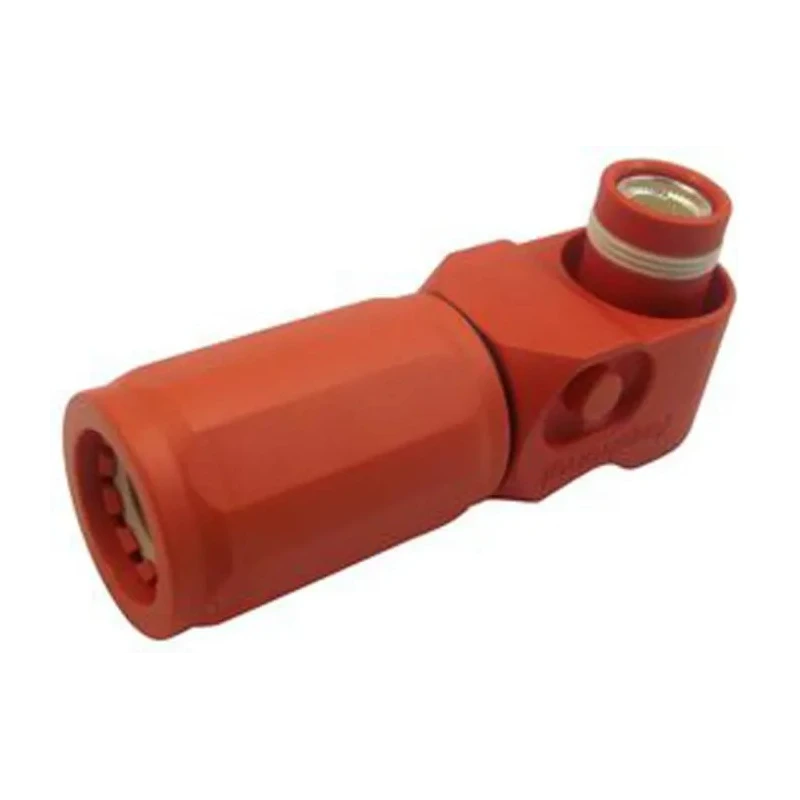

Amphenol Industrial SURLOK PLUS RADSOK EV Connector Male 100A 1000V Crimp Right Angle SLPPA16BSB / C10-730186-130

Free Delivery in India | Lowest Global Shipping Charges

Amphenol Industrial SURLOK PLUS RADSOK EV Connector Male 100A 1000V Crimp Right Angle SLPPA16BSB / C10-730186-130

Name: Amphenol Industrial SURLOK PLUS RADSOK EV Connector Male 100A 1000V Crimp Right Angle SLPPA16BSB / C10-730186-130
Brand: Amphenol Industrial
SKU: 142022
Price: 22.9 USD
Availability: InStock



Category EV Connector Brand Amphenol Industrial Condition New

Specifications

Country of Origin	China
Brand	Amphenol Industrial
Colour	Black
Orientation	Right Angle
Current	100A
Height	58.8mm
Model	SLPPA16BSB / C10-730186-130
Depth	22.6mm
IP Rating	IP67
Connector Type	RADSOK
Width	18mm
Mount Type	Cable
Housing Material	Thermoplastic
Contact Material	Copper Alloy
Series	SURLOK PLUS
Termination Type	Crimp
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Pin Diameter	5.7mm
Number of Rows	1
Wire size	16mm²
Operating Voltage	1000V
For Use With	SurLok 1-Position Receptacle
Standards/Approvals	UL 94-V0
Number of Contacts	1
Contact Gender	Female
Connector Gender	Male
Better World Claim	Renewable Energy Solution

Key Features

Rated for continuous current of 100 amperes.
Utilizes RADSOK technology for high tensile strength and excellent conductivity.
Operates reliably from -40°C up to 125°C.
Features a 5.7mm pin diameter and terminates to 16mm² wires with crimp termination.
Rated for IP67 protection ensuring dust-tight and water immersion resistance.
Right angle orientation with spring locking and 360° plug rotation for flexible installation.
Body constructed of thermoplastic with copper alloy contacts and black color finish.
Meets UL 94-V0 flammability standards for enhanced safety.

Product Description

The Amphenol Industrial SURLOK PLUS RADSOK EV Connector Male model SLPPA16BSB / C10-730186-130 is a high-quality power connector rated for 100A current and up to 1000V operating voltage, designed for demanding electric vehicle and industrial applications.

This connector features RADSOK technology providing a superior tensile strength connection with a highly conductive surface area, ensuring reliability and safety in high power environments. The crimp termination accepts 16mm² wire sizes and includes a 5.7mm pin diameter to ensure optimal conductivity.

The connector's robust thermoplastic housing and copper alloy contacts guarantee durability and performance over a wide temperature range of -40°C to 125°C. It also complies with the UL 94-V0 flammability standard for added safety under harsh conditions.

With an IP67 rating, the connector is fully sealed against dust ingress and capable of withstanding temporary water immersion, suitable for outdoor and harsh industrial environments. The right-angle orientation, touch-proof design, and spring locking mechanism enable flexible, safe, and secure connections with ease. The plug also rotates 360° for installation versatility.

The SURLOK PLUS series connectors are widely used in electric vehicle charging systems, battery management systems, heavy equipment, rail transit, medical devices, and process control environments where high reliability and safety are paramount.

Rated current: 100A for high power applications. RADSOK technology for enhanced conductivity and connection strength. Wide operating temperature range of -40°C to 125°C. IP67 rated for dust-tight and water ingress protection.

Durable thermoplastic housing and copper alloy contacts. Complies with UL 94-V0 flammability standard. Right angle orientation with 360° rotational plug. Suitable for EV, battery management, rail mass transit, and industrial applications.

Discover more about the Amphenol Industrial SURLOK PLUS series and browse similar EV Connectors to find solutions tailored to your industrial power connection needs at EnvMart.
