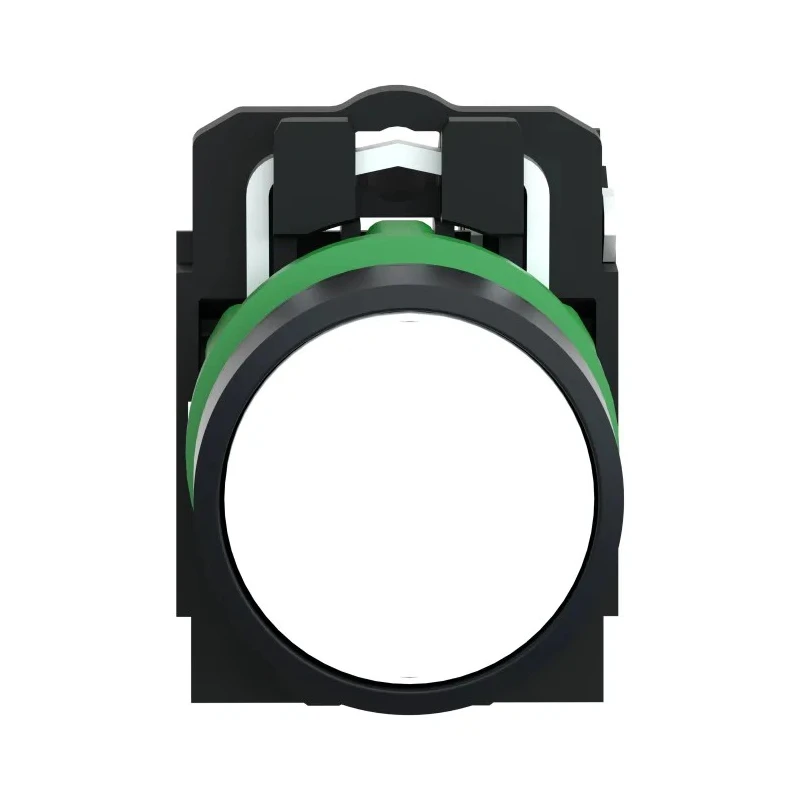

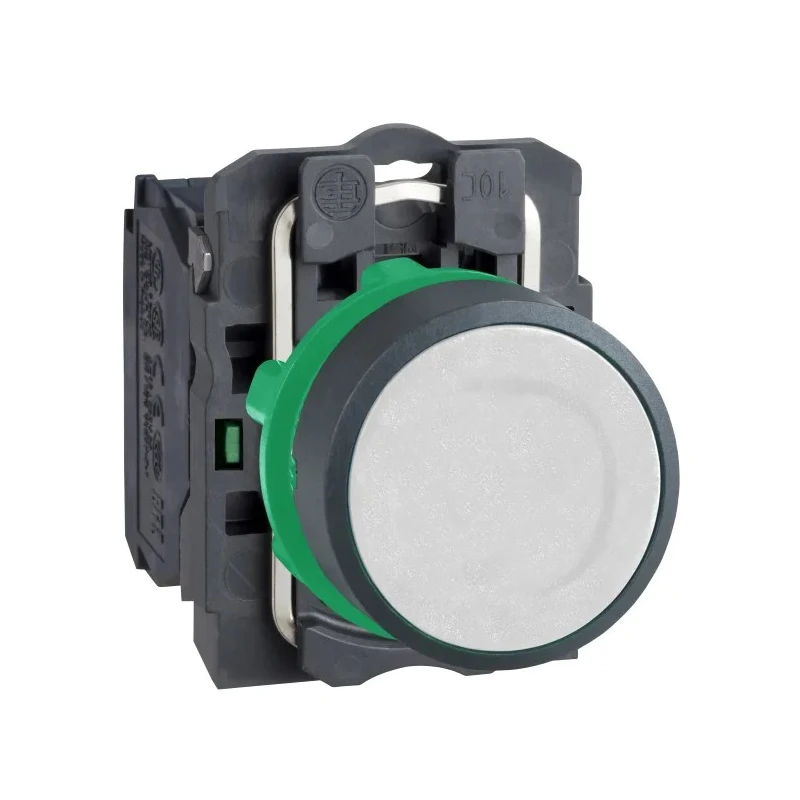

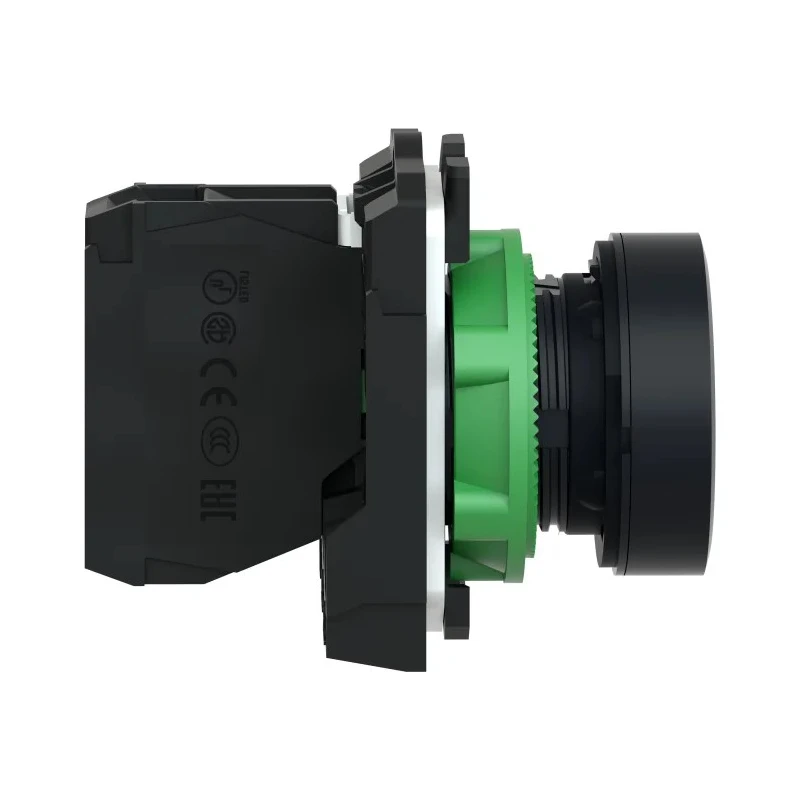

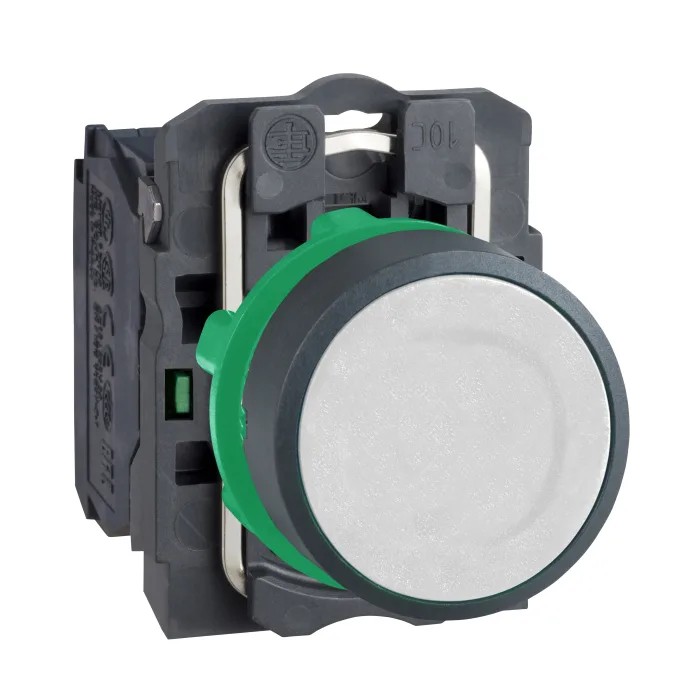

Schneider Electric Harmony XB5 Series Push Button Switch, Spring Return, Panel Mount, 22 mm Cutout, SPST Contact XB5AA11

Schneider Electric XB5AA11 Harmony XB5 Series push button switch is engineered for robust industrial applications requiring dependable operation under harsh conditions. This push button features a spring return mechanism with a white round actuator equipped with a white LED to provide visual feedback. It is designed for panel mounting with a 22 mm cutout, making it suitable for compact control stations.

Built to meet stringent protection requirements, this switch offers IP66, IP67, IP69, and IP69K ratings, ensuring full protection against dust ingress and high-pressure water jets from any direction, as well as resistance to steam-jet cleaning. This makes it an ideal choice in environments with rigorous cleaning and demanding operational needs, such as automotive factories, commercial food processing units, and warehouse automation systems.

The electrical configuration includes a SPST contact with a switch contact current rating of 10A, accommodating switching for various control functions. The terminal connection is via screw terminals for secure and reliable wiring. Suitable for use across a wide temperature range from -25°C up to 70°C, the switch ensures dependable performance in diverse climate conditions.

The switch is certified under recognized standards such as CSA C22.2 No. 14, EN/IEC 60947 series, JIS standards, and UL 508 compliance. Its mechanical durability is rated for 10 million cycles, providing extended service life without compromise. Additionally, the product supports end-user repair, contributing to sustainability efforts and reducing downtime.

Typical applications for the Schneider Electric XB5AA11 include emergency stop panels, control stations in automation lines, as well as facilities requiring regular and intensive cleaning protocols. This makes it a versatile component for industrial, manufacturing, and commercial sectors.

Operates with a single pole single throw (SPST) contact configuration. Switch contact current rated at 10A for reliable electrical performance. Has high ingress protection against dust, water jets, steam, and cleaning processes.

Durable mechanical design with high resistance to shock and vibration. Suitable for industrial control panels, automation lines, and environments requiring heavy duty cleaning. Designed for operating temperatures ranging from -25°C to 70°C.

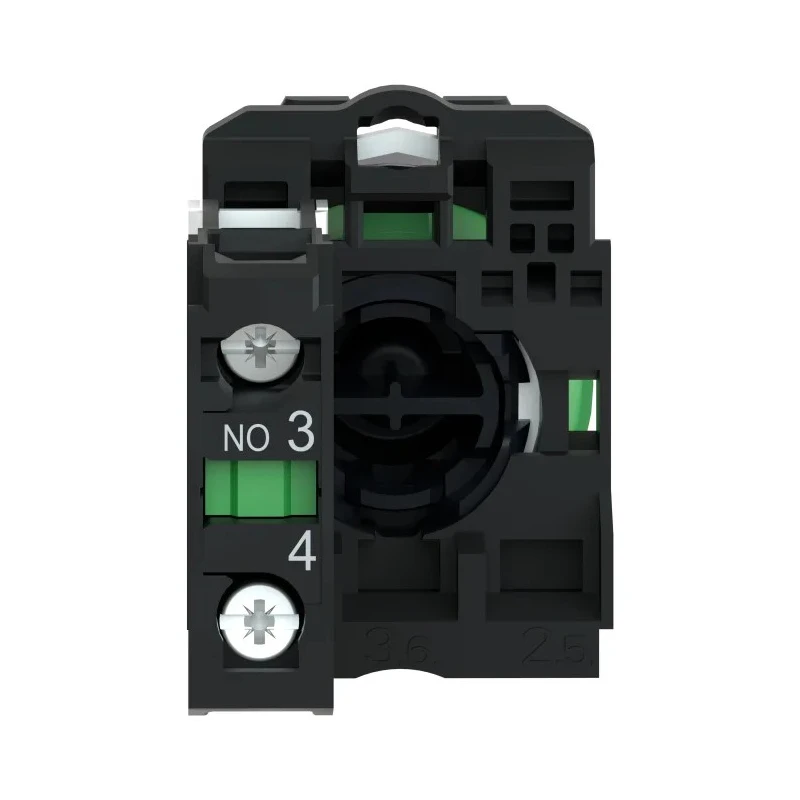

Standard screw terminal type ensures easy wiring installation. Offers compliance with multiple international standards including CSA, IEC, JIS, and UL. Compact dimensions: 42mm height, 52mm length, and 30mm width. Repairable by the end user reducing maintenance costs.
