OEP Through Hole Audio Transformer 100 mW, 8 Pins, 132Ω Primary DC Resistance, PC Pin Termination A262A41E

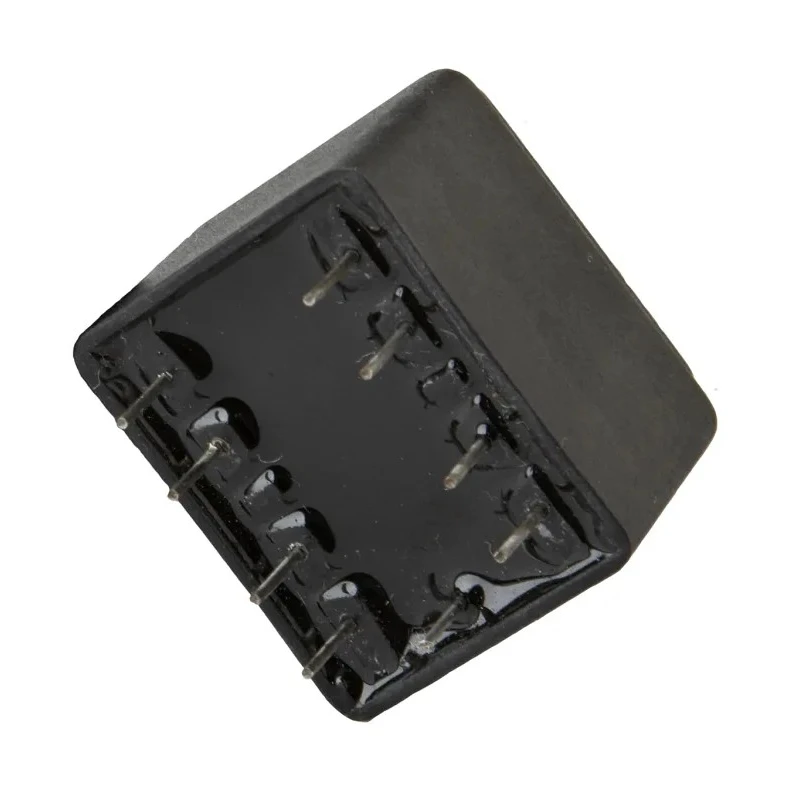

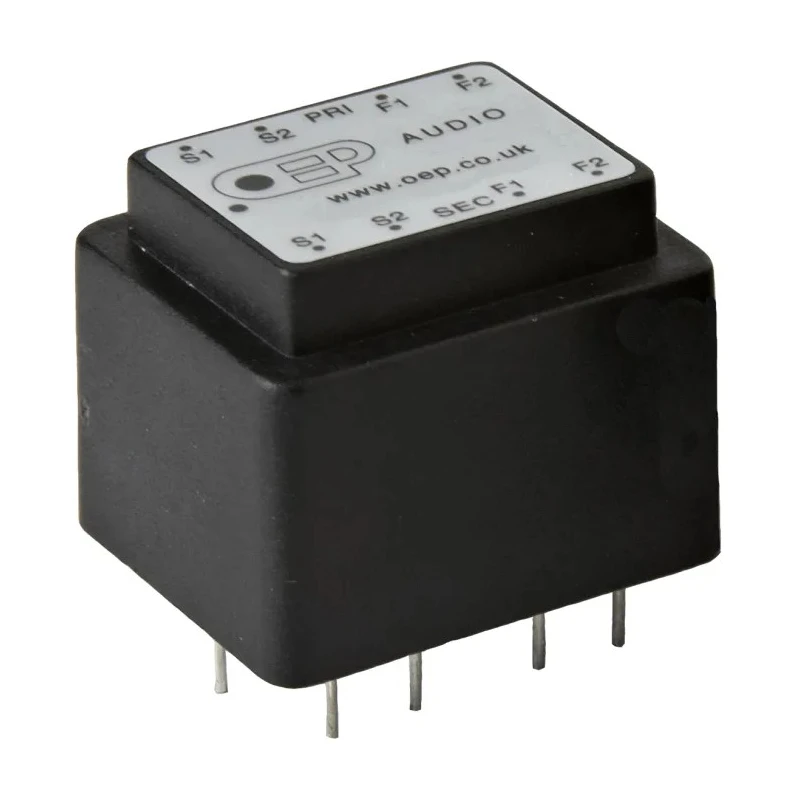

OEP A262A41E Through Hole Audio Transformer 100 mW is a high-quality audio matching transformer designed for PCB mounting applications in electronic circuits. Its enclosed construction with electrostatic screening minimizes interference, ensuring precise audio signal transmission in low power devices.

With a primary DC resistance of 132 ohms and secondary DC resistance of 190 ohms, this transformer reliably matches impedance for microphones and line inputs. The termination is via PC pins in an 8-pin configuration, facilitating secure PCB installation.

The device operates efficiently within a temperature range from -25°C up to 70°C, making it suitable for a variety of environmental conditions commonly encountered in industrial and commercial electronics manufacturing.

This audio transformer has an isolation voltage rating of 1 kV, providing safety against voltage spikes and ensuring stable operation. Its frequency response ranges from 5 Hz to 35 kHz, supporting broad audio frequency spectra for high fidelity sound quality.

Compact physical dimensions (27.94 mm length, 22.9 mm width, 28 mm depth) enable its use in space-constrained PCB designs. The turns ratio of 1 + 1 : 1 + 1 supports balanced audio signal transfer, reducing noise and distortion in audio systems.

Features a through hole mount type suitable for PCB installation. Primary DC resistance is 132 ohms and secondary DC resistance is 190 ohms. Operates within a temperature range of -25°C to 70°C. Enclosed construction with electrostatic screening enhances signal clarity.

Suitable for low power audio outputs, including microphone and line inputs. Isolation voltage rated at 1 kV for safe operation. Frequency range supports 5 Hz to a maximum of 35 kHz. Compact dimensions with 27.94 mm length, 22.9 mm width, and 28 mm depth.

Turns ratio is 1 + 1 : 1 + 1 for balanced audio transformation. Complies with RoHS environmental standards.

This transformer is ideal for industrial, laboratory, and electronic manufacturing applications requiring reliable audio signal transformation and impedance matching in low power circuits. For professional PCB designs, this product combines quality and durability, meeting industry standards.
