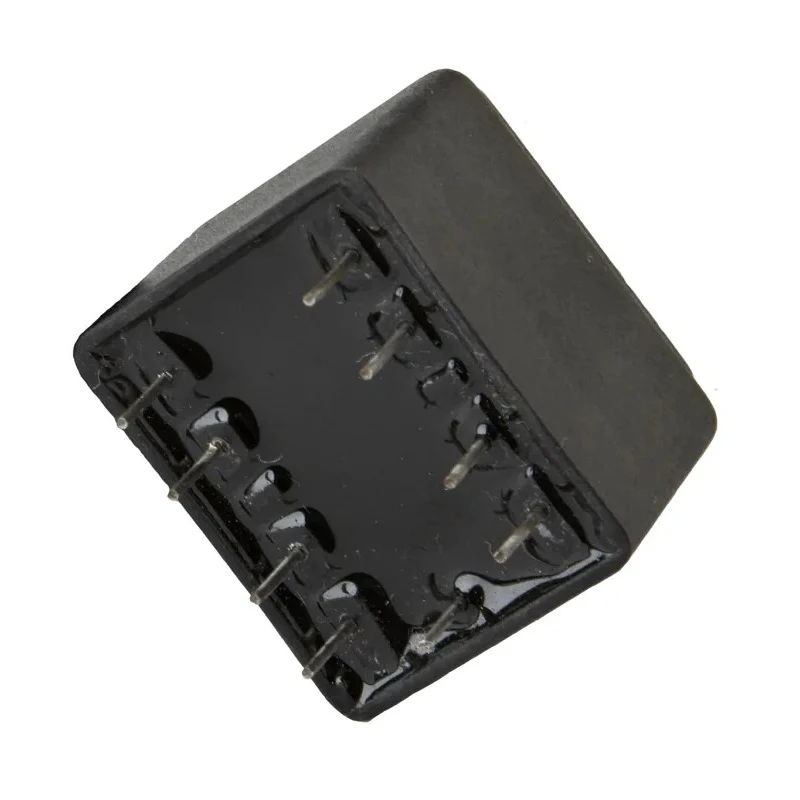

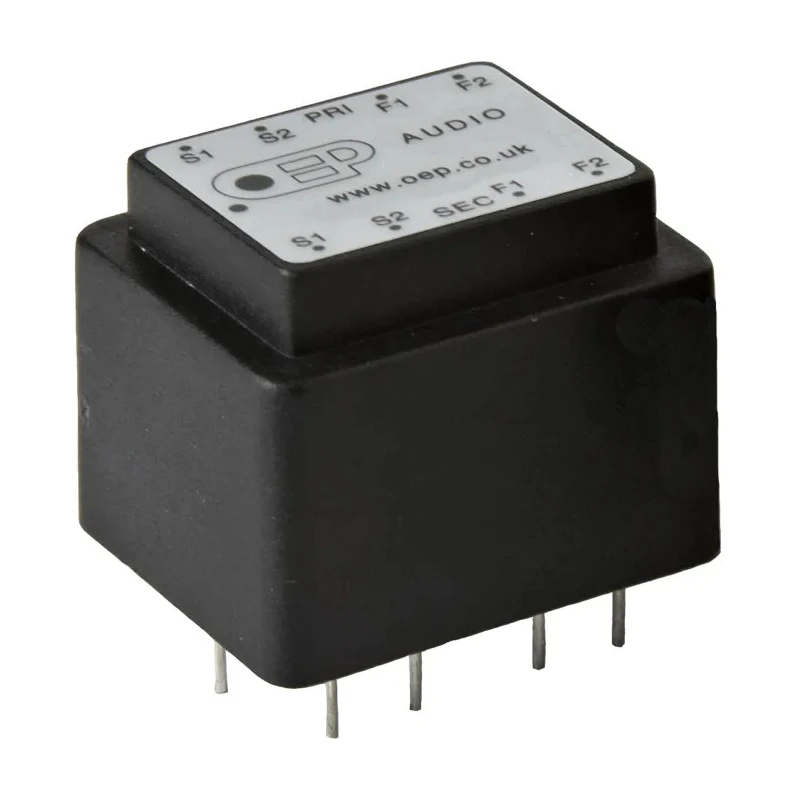

OEP Enclosed Through Hole Audio Transformer with 150Ω Primary Impedance, 1kV Isolation Voltage, 8 Pins A262A47E

OEP A262A47E Through Hole Audio Transformer is an enclosed PCB mounted audio matching transformer designed for precise audio signal processing in industrial and laboratory electronic equipment.

This transformer provides a primary impedance of 150Ω and is ideal for low power output applications such as microphone and line input audio circuits. Featuring electrostatic screening, it ensures signal integrity and minimizes interference.

The device operates reliably within a frequency range of 10Hz to 55kHz and a temperature tolerance from 0°C up to 70°C, making it suitable for diverse environmental conditions. Its 8-pin through hole mounting with PC pin terminations provides robust mechanical stability on PCB layouts.

Physical dimensions are compact with a length of 27.94 mm, width of 22.9 mm, and depth of 22.2 mm, making it suitable for space-constrained designs. The transformer has primary and secondary DC resistances of 20.6Ω and 474Ω respectively, supporting efficient power transfer and matching.

Rated for an isolation voltage of 1 kV, the transformer ensures safety and noise reduction in sensitive signal paths. Weighing just 40 grams, it offers easy handling and integration into audio electronic projects.

Enclosed construction provides electrostatic screening. Suitable for microphone and line input low power outputs. Frequency range supports audio signals from 10Hz to 55kHz. Operating temperature range 0°C to 70°C. Through hole mounting with 8 PC pin terminations.

Compact size and low weight for PCB applications. Primary impedance 150Ω, primary DC resistance 20.6Ω. Secondary DC resistance 474Ω. 1 kV isolation voltage rating. No specified standards or approvals.

This OEP audio transformer is ideal for use in industrial, laboratory, electronic manufacturing, and audio equipment assembly applications requiring high fidelity and reliable low-power audio signal transformation.
