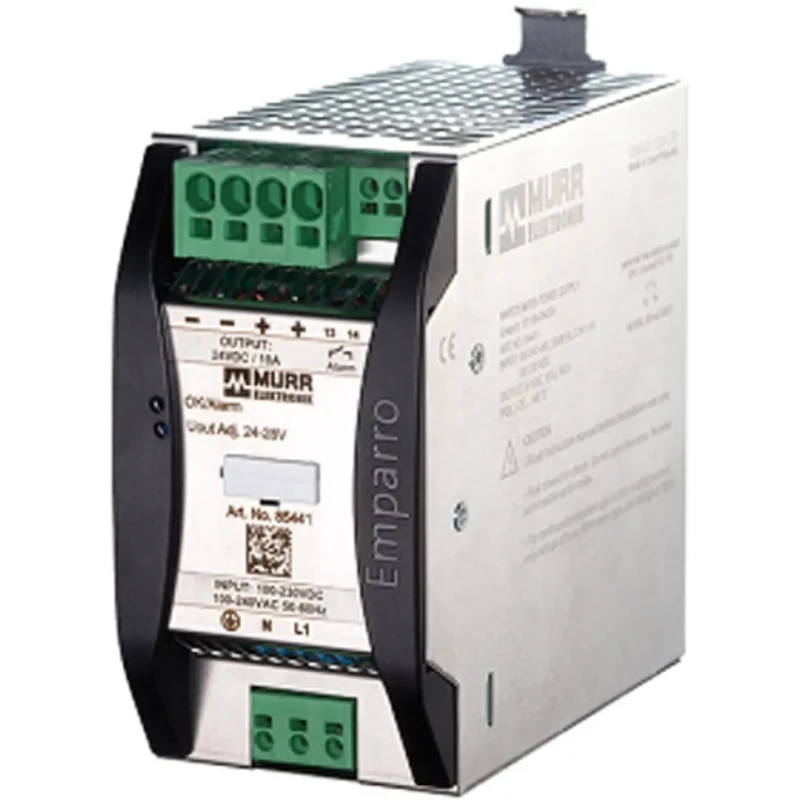

Murrelektronik Limited EMPARRO Switched Mode DIN Rail Power Supply 265V AC Input 28V DC, 10 A Output DC 240 W 85441

Free Delivery in India | Lowest Global Shipping Charges

Murrelektronik Limited EMPARRO Switched Mode DIN Rail Power Supply 265V AC Input 28V DC, 10 A Output DC 240 W 85441

Name: Murrelektronik Limited EMPARRO Switched Mode DIN Rail Power Supply 265V AC Input 28V DC, 10 A Output DC 240 W 85441
Brand: Murrelektronik Limited
SKU: 141558



Category DIN Rail Power Supplies Brand Murrelektronik Limited Condition New

Specifications

Country of Origin	Czech Republic
Brand	Murrelektronik Limited
Power	240W
Efficiency	94.3%
Height	123mm
Model	85441
Depth	138mm
Width	65mm
Series	EMPARRO
Output Current	10A
Maximum Operating Temperature	60°C
Sub Type	Switched Mode
Minimum Operating Temperature	-25°C
Number of outputs	1
Maximum Input Voltage	265V ac
Electrical Phase	1
Maximum Output Voltage	28V dc
Minimum Input Voltage	85V ac

Key Features

High efficiency of 94.3% reduces power loss and energy consumption.
Slim design with metal housing ensures robust EMC protection.
150% power boost capability for at least 4 seconds to support start-up loads.
Wide input voltage range from 85V to 265V AC suitable for global use.
Operates reliably in temperatures from -25°C to 60°C.
Protected against overload by constant current limiting up to 150% in power boost mode.
Supports one output with a regulated output voltage of 28V DC and current of 10 A.

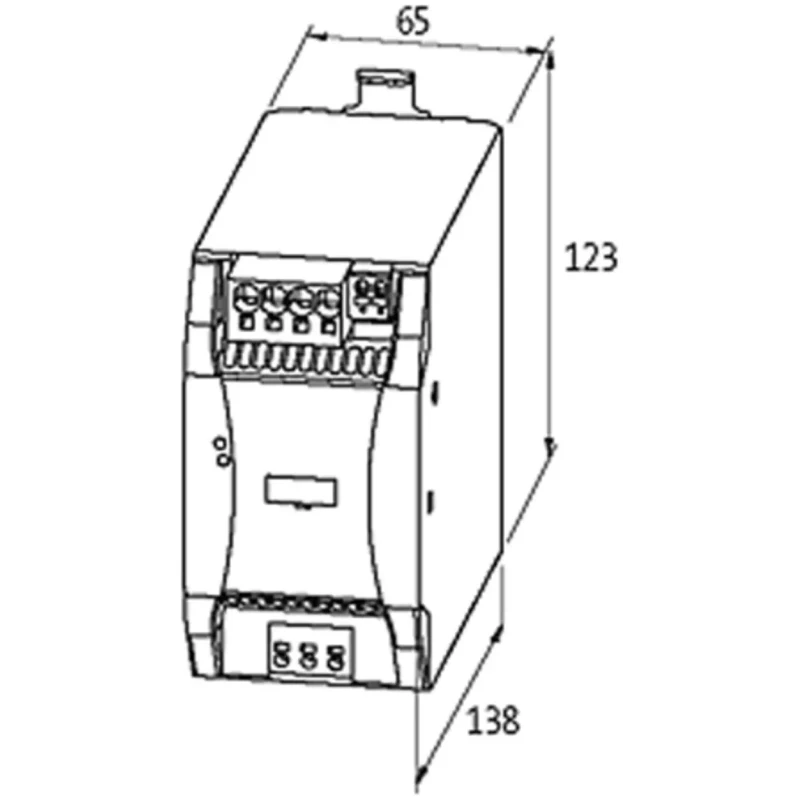

Compact size with dimensions 123mm (H) x 65mm (W) x 138mm (D).

Product Description

Murrelektronik Limited 85441 EMPARRO Switched Mode DIN Rail Power Supply delivers a reliable 28V DC output with a maximum current of 10 A and power rating of 240 W. It accepts a wide AC input voltage range of 85V to 265V, making it suitable for worldwide applications.

Featuring a slim metal housing with protective EMC characteristics, this power supply ensures minimal electromagnetic interference and enhanced durability. It supports a 150% power boost for at least 4 seconds, enabling it to start higher loads without requiring additional power supplies.

The unit operates efficiently with a 94.3% efficiency rating, reducing energy consumption and heat generation inside control cabinets. Its operating temperature range from -25°C to 60°C facilitates dependable performance under various environmental conditions.

The output voltage is regulated with a constant current overload protection mechanism, limiting current to 100% nominal or 150% during power boost mode, thus safeguarding the device and connected components. Compact dimensions of 123 mm height, 65 mm width, and 138 mm depth allow easy integration in standard DIN rail mounting systems.

High efficiency reduces operational costs and heat generation. Strong EMC protection from metal enclosure. Overload protection via constant current limiting enhances device safety. Wide input voltage range for flexibility in different global power networks.

Compact size for space-saving installation in control panels. Approvals including SEMI F47, GL, EN 61204-3, EN 61000-3-2, EN 60950-1, EN 60715, EN 55011 B, cULus certified for assurance.

This professional power supply is widely used in industrial automation, manufacturing, HVAC control systems, and other electronic equipment requiring stable, efficient DC power from AC sources. Its global compliance and built-in protections make it an ideal choice for demanding electrical installations.

Explore the Murrelektronik range and related DIN Rail Power Supplies on EnvMart for enhanced power management solutions tailored to your industrial needs.
