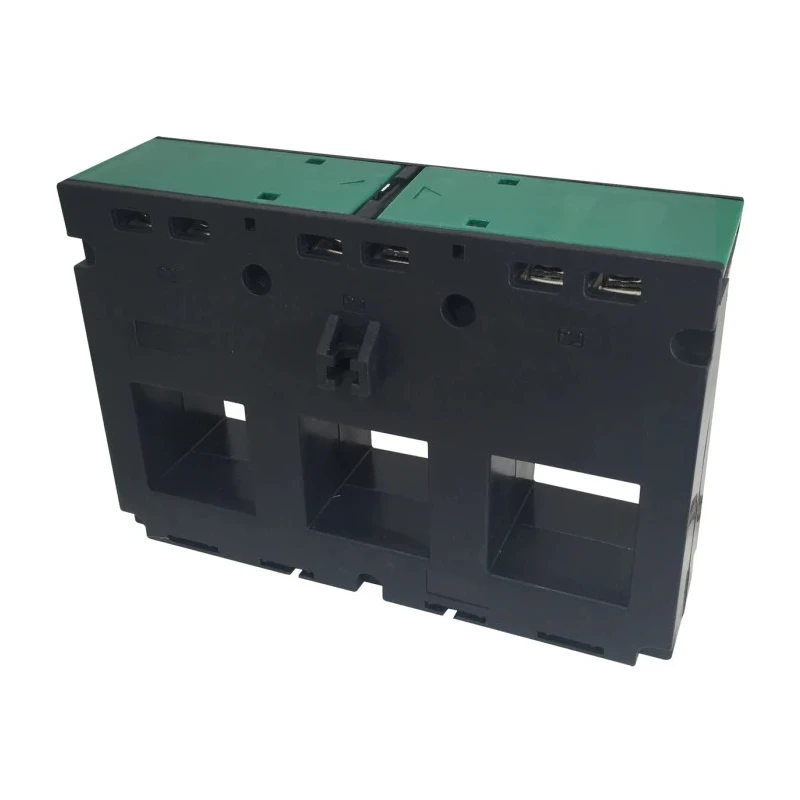

Sifam Tinsley OMEGA Series Current Transformer 400 A 45mm Bore XN45-315051S000000

Sifam Tinsley XN45-315051S000000 OMEGA Series Current Transformer with a 400 A primary current rating and 45mm bore diameter is engineered for precise current measurement in industrial, commercial, and utility electrical systems. This current transformer is part of the OMEGA series designed for three-phase applications and suitable for primary current ranges from 60 A up to 630 A with a 5 A secondary output, enabling accurate monitoring and protection of electrical circuits.

Featuring a wire sealable terminal covers and a cost-effective three-phase case design, the current transformer allows quick installation close to molded case circuit breakers, optimizing space usage in electrical panels. It supports multiple mounting options, including base mounting and DIN rail, offering installation flexibility.

The device complies with international standards IEC 61010-2, IEC/EN 60044-1, and IEC 61869-1, ensuring high accuracy and safety during operation with an accuracy class 1 rating. It operates within a frequency range of 50 Hz to 60 Hz and a maximum system voltage of 720 V, suitable for global power applications.

The casing material is self-extinguishing with VO classification according to UL-94, providing enhanced fire safety. With a compact width of 141mm and a lightweight design of 650 grams, the transformer is easy to integrate into existing power systems.

Applications include industrial automation, process control, power monitoring, and electrical protection schemes in commercial and industrial environments. Its robust design and compliance make it ideal for electric power distribution and measurement tasks.

The transformer supports primary current up to 400 A and a 5 A secondary current. Features a 45mm bore diameter suitable for various installations. Mounting options include base mounting and DIN rail to ensure flexible installation.

Compliance with IEC 61010-2, IEC/EN 60044-1, and IEC 61869-1 standards for reliable performance. Designed for operation at 50Hz to 60Hz with a maximum system voltage of 720 V. Constructed with a self-extinguishing casing rated VO under UL-94 for enhanced safety.

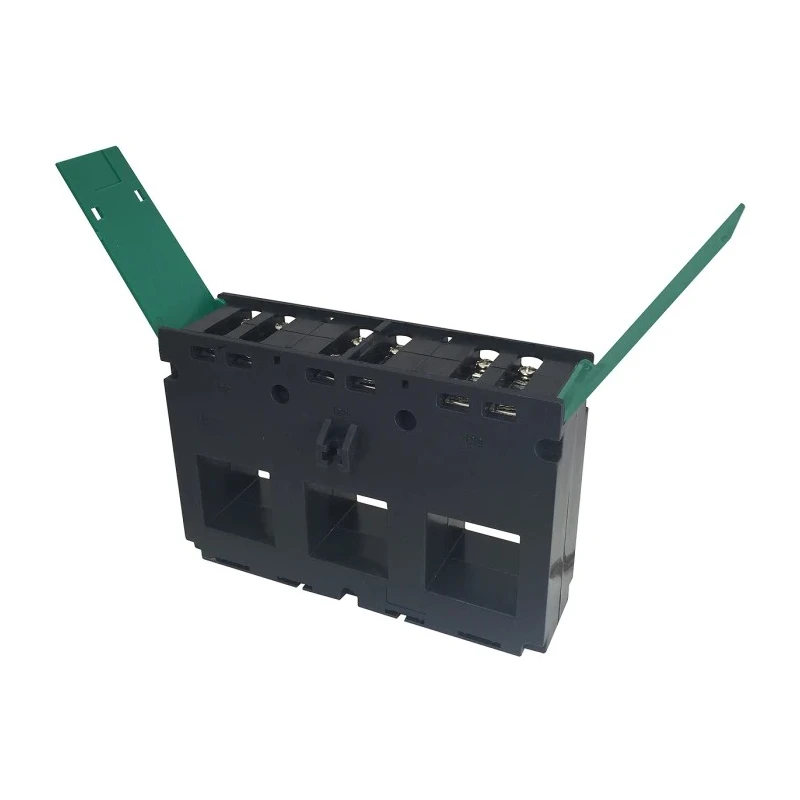

Wire sealable terminal covers provide tamper resistance for secure connections. Compact width of 141mm optimizes space in electrical panels. Weighs approximately 650 grams, facilitating easy handling and installation.
