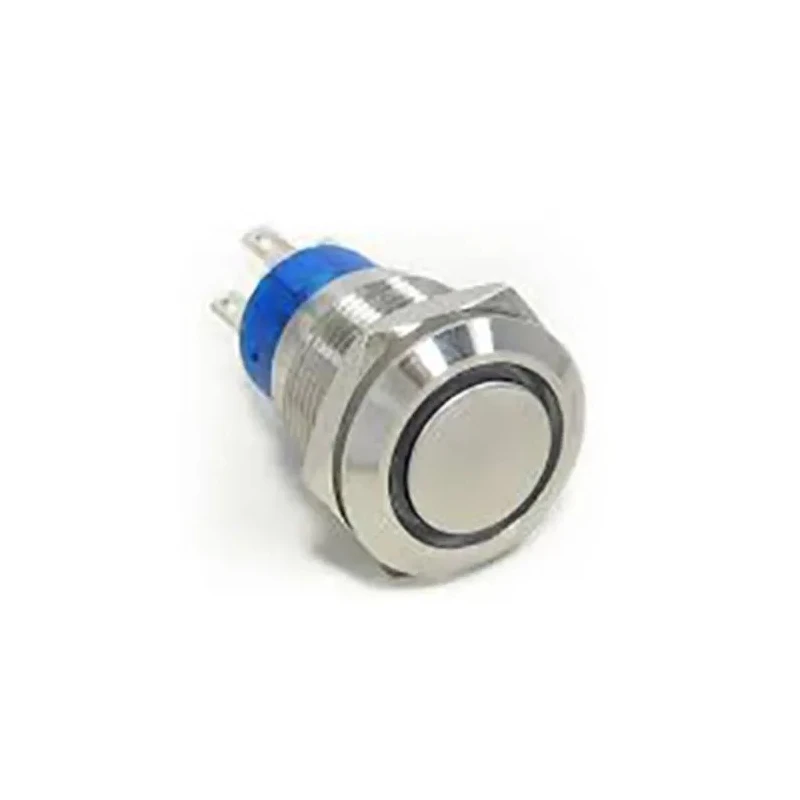

TE Connectivity Series Illuminated Latching Push Button Switch, Panel Mount, 22.2 mm Cutout, DPDT, Green LED, IP67, 250V AV22
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Length | 22mm |
| Model | AV22 |
| IP Rating | IP67 |
| Mount Type | Panel |
| Series | AV22 |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | DPDT |
| Switch Configuration | DPDT |
| Minimum Operating Temperature | -20°C |
| Panel Cutout Size | 22.2 mm |
| Terminal type | Wire Lug |
| Standards/Approvals | UL (E46765), REACH Compliant, EU ELV Compliant |
| LED Colour | Green |
| Switch Operation | Latching |
| Actuator Colour | Silver |
| Contact DC Voltage | 250V |
| Actuator Style | Push Button |
| Switch Contact Current | 3A |
| Contact AC Voltage | 250V ac |
Key Features
- Features a vandal-proof design suitable for industrial panel mounting applications.
- DPDT contact configuration with wire lug terminals ensures versatile electrical control.
- Silver actuator color offers premium look and tactile feedback.
- Protective IP67 rating for dust and water ingress resistance.
- Operates across -20°C to 55°C temperature range for reliable performance.
- Illuminated with green LED for clear operational status indication.
- Supports both 250V AC and DC contact voltages with 3A contact current.
- Meets UL (E46765), REACH, and EU ELV compliance standards.
Product Description
TE Connectivity AV22 Series illuminated push button switch AV22 offers a durable and secure latching push button solution designed for panel mounting with a 22.2 mm cutout. Featuring a silver actuator and green LED illumination, this switch combines functionality with a premium aesthetic suitable for industrial and commercial control applications.
Constructed with vandal-proof design and rear mounting jam nut, the AV22 series provides enhanced reliability and security for control and communications equipment, elevators, escalators, and instrumentation devices.
With a Double Pole Double Throw (DPDT) contact configuration and wire lug terminals, it supports both AC and DC electrical loads up to 250V and 3A contact current capacity. The switch maintains an IP67 rating, ensuring protection from dust ingress and water immersion, thus suitable for demanding environmental conditions.
Operating reliably between -20°C and 55°C, this push button switch integrates seamlessly into industrial, laboratory, construction, manufacturing, and HVAC applications needing robust and illuminated user interface components.
Vandal-proof push button switch with premium design and feel. Double Pole Double Throw (DPDT) contacts for versatile switching. Green LED illumination for operational feedback. IP67 rated protection against dust and water.
Latching operation type ensuring stable switch state. Wire lug terminals for secure wiring connections. Compliant with UL, REACH, and EU ELV standards.
This product is manufactured in China and supplied in new condition. It is ideal for a wide range of industrial and commercial control applications requiring rugged, illuminated push button switches.
Explore the full range of Push Button Switches at EnvMart to find the right switch for your control panels and industrial automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a Double Pole Double Throw (DPDT) contact configuration, allowing for versatile electrical control.
It has an IP67 rating, which provides protection against dust ingress and water immersion.
The switch operates reliably within a temperature range of -20°C to 55°C.
It is equipped with wire lug terminals for secure wiring connections.
The switch supports a maximum contact current of 3A.
This switch requires a panel cutout size of 22.2 mm for proper installation.
The actuator is silver in color, providing a premium look and tactile feedback.
Yes, it supports both AC and DC contact voltages up to 250V.
It meets UL (E46765), REACH, and EU ELV compliance standards.
The switch features a latching operation type, ensuring a stable switch state once activated.
It is suitable for industrial, laboratory, construction, manufacturing, and HVAC applications requiring robust illuminated user interface components.
This product is manufactured in China.
