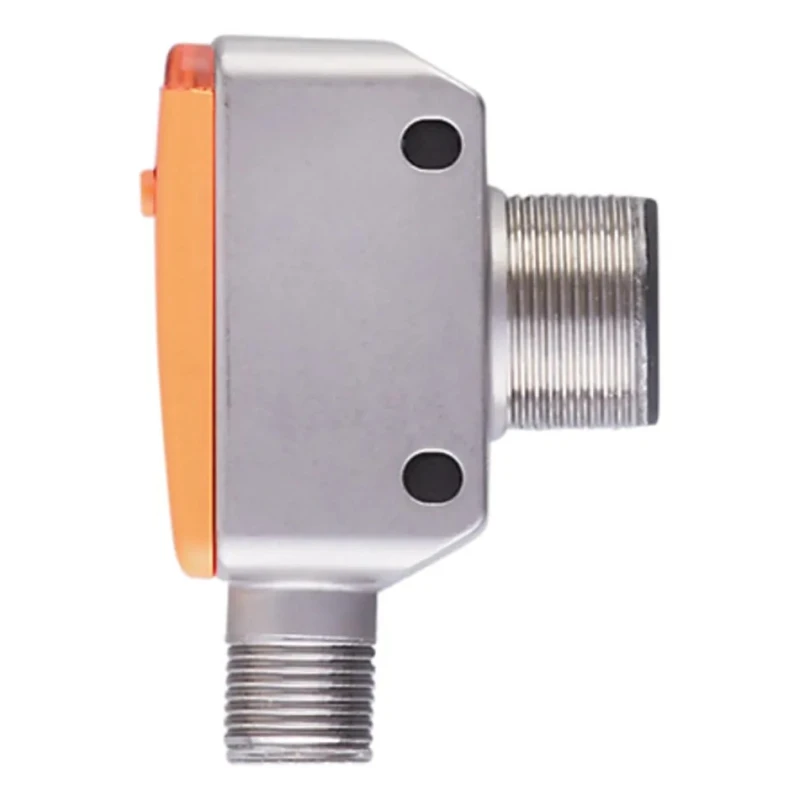

ifm electronic Ultrasonic Proximity Sensor Block M18 x 1 Thread 300 mm Detection 35mA PNP Output 3V to 30V DC UGT581

ifm electronic UGT581 block ultrasonic proximity sensor M18 x 1 thread is designed for reliable object detection in industrial automation. It operates within a voltage range of 3V to 30V DC and supports PNP output with a maximum switching current of 35mA. The sensor body combines polyamide, stainless steel, epoxy glass ceramic, and polybutylene terephthalate for durability and resistance to harsh environments.

This ultrasonic sensor utilizes sound wave reflection for detecting objects up to 300mm away, surpassing limits of standard photoelectric sensors by detecting transparent, colored, or shiny surfaces effectively.

The compact block sensor measures 53mm in length, 20mm in width, and 37.7mm in depth, with an M18 x 1 threaded mounting. IP67 rating protects the sensor against dust and water ingress, making it ideal for demanding industrial or automation environments.

Operating temperature ranges from -20°C to 70°C with conformity to CE, cULus, EN 55011, EN 60068 standards ensuring robust electro-magnetic compatibility and mechanical resistance.

Installation and configuration are facilitated via screw terminals and easy setting through wire or button teach. The maximum switching frequency of 8Hz supports moderate speed applications.

Thread size M18 x 1 for secure mechanical fixation. Body material includes polyamide, stainless steel, and epoxy glass ceramic for robustness. Maximum detection distance of 300mm using ultrasonic sensing technology. PNP output type with 35mA maximum switching current.

Wide operational voltage from 3V to 30V DC. IP67 rated ingress protection for dust and water resistance. Operating temperature range from -20°C to 70°C suitable for harsh industrial environments. Compact dimensions with 53mm length, 20mm width, and 37.7mm depth.

Compliance with international standards for safety and electromagnetic compatibility. Easy installation with screw terminals and teach function capabilities.

This ultrasonic proximity sensor is ideal for industrial automation, manufacturing lines, material handling systems, and robotics where detection of varied surfaces and long sensing distances are required. The robust housing and reliable ultrasonic technology enable consistent performance under challenging conditions.
