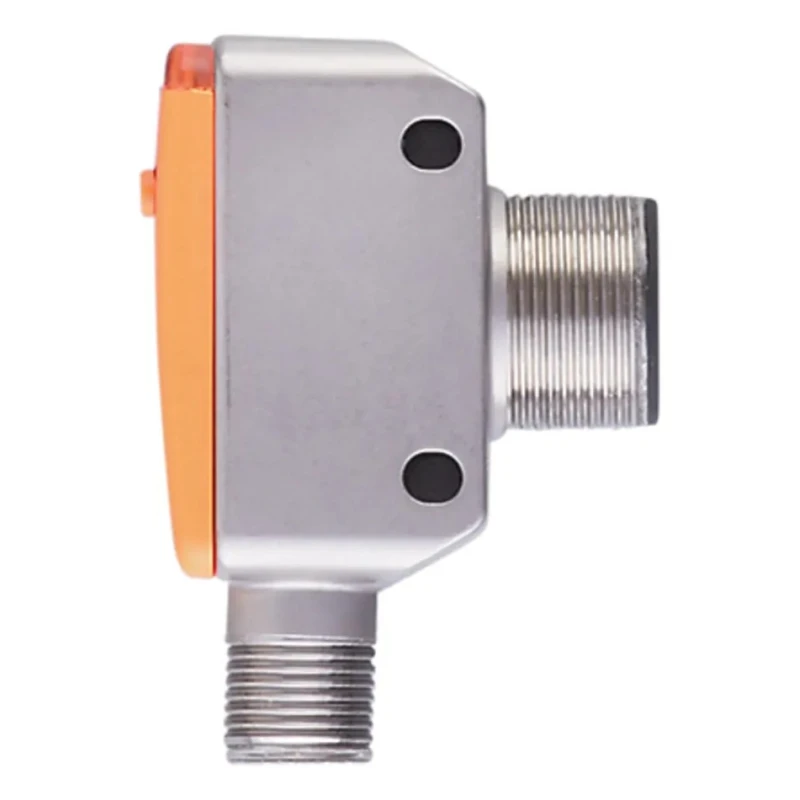

ifm electronic Block Ultrasonic Proximity Sensor M18 x 1 Thread, 53mm Length, 300mm Detection Distance, 35mA UGT580
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | ifm electronic |
| Length | 53mm |
| Model | UGT580 |
| Depth | 37.7mm |
| IP Rating | IP67 |
| Width | 20mm |
| Housing Material | Polyamide, Polybutylene Terephthalate, Stainless Steel, Epoxy Glass Ceramic |
| Output type | PNP |
| Series | UGT580 |
| Maximum Operating Temperature | 70°C |
| Thread Size | M18 x 1 |
| Minimum Operating Temperature | -20°C |
| Switching Current | 35mA |
| Terminal type | Screw |
| Body Style | Block |
| Maximum dc Voltage | 30V dc |
| Maximum Switching Frequency | 8Hz |
| Maximum Supply Voltage | 3V |
| Maximum Detection | 300mm |
Key Features
- Constructed with high-grade stainless steel housing ensuring durability and resistance to harsh environments.
- Block-style sensor with M18 x 1 thread size and 53 mm body length for compact integration.
- Operates within a voltage range of 3V to 30 V dc and supports PNP output type with 35mA switching current.
- Features an IP67 rating for water and dust protection, allowing operation in demanding industrial conditions.
- Supports a maximum switching frequency of 8 Hz for effective sensing in dynamic environments.
- Wide operating temperature range from -20°C to 70°C to suit various application conditions.
- Terminal type is screw, facilitating secure wiring connections.
- Includes advanced ultrasonic sensing technology suitable for detecting different object types including colored or transparent surfaces.
Product Description
ifm electronic UGT580 Block Ultrasonic Proximity Sensor with M18 x 1 thread size and 53 mm length offers precise detection up to 300 mm, operating between 3V and 30 V DC with PNP output. This sensor is engineered for robust performance in industrial automation and control systems.
The sensor's compact block design combines durable polyamide, polybutylene terephthalate, stainless steel, and epoxy glass ceramic materials to provide high mechanical and environmental resistance. Its IP67 protection rating ensures reliable function even in dusty or wet conditions, making it ideal for manufacturing, process automation, and material handling applications.
The ultrasonic sensing principle allows detection of various object surfaces including those that are shiny, colored, or transparent. Operating temperature range from -20°C to 70°C and a maximum switching frequency of 8 Hz support diverse industrial environments.
Wiring is via screw terminals for secure and stable electrical connection. The device is compliant with multiple international standards including CE, cULus, EN 55011 and others, evidencing its quality and safety for global industrial use.
The UGT580 sensor is manufactured in Italy and is part of the UGT500 series, designed for applications where photoelectric sensors may fail due to heavy soiling or challenging surfaces.
Constructed with high-grade stainless steel housing ensuring durability and resistance to harsh environments. Block-style sensor with M18 x 1 thread size and 53 mm body length for compact integration. Operates within a voltage range of 3V to 30 V dc and supports PNP output type with 35mA switching current.
Features an IP67 rating for water and dust protection, allowing operation in demanding industrial conditions. Supports a maximum switching frequency of 8 Hz for effective sensing in dynamic environments. Wide operating temperature range from -20°C to 70°C to suit various application conditions.
Terminal type is screw, facilitating secure wiring connections. Includes advanced ultrasonic sensing technology suitable for detecting different object types including colored or transparent surfaces. Explore EnvMart Electronics & Electricals Sensors category for more advanced Ultrasonic Proximity Sensors suitable for industrial automation and process control.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum detection distance of this model is 300 mm.
It operates within a voltage range of 3V to 30V DC.
This unit supports a PNP output type with a switching current of 35mA.
The sensor has an IP67 rating, providing protection against dust and water.
It can operate within a temperature range of -20°C to 70°C.
The sensor has a length of 53 mm, a width of 20 mm, and a depth of 37.7 mm.
The maximum switching frequency is 8 Hz, allowing effective sensing in dynamic environments.
It is constructed with polyamide, polybutylene terephthalate, stainless steel, and epoxy glass ceramic materials.
Wiring is done via screw terminals, ensuring secure connections.
This model is manufactured in Italy.
It can detect various object surfaces, including shiny, colored, or transparent surfaces.
The UGT580 is part of the UGT500 series designed for challenging sensing applications.
