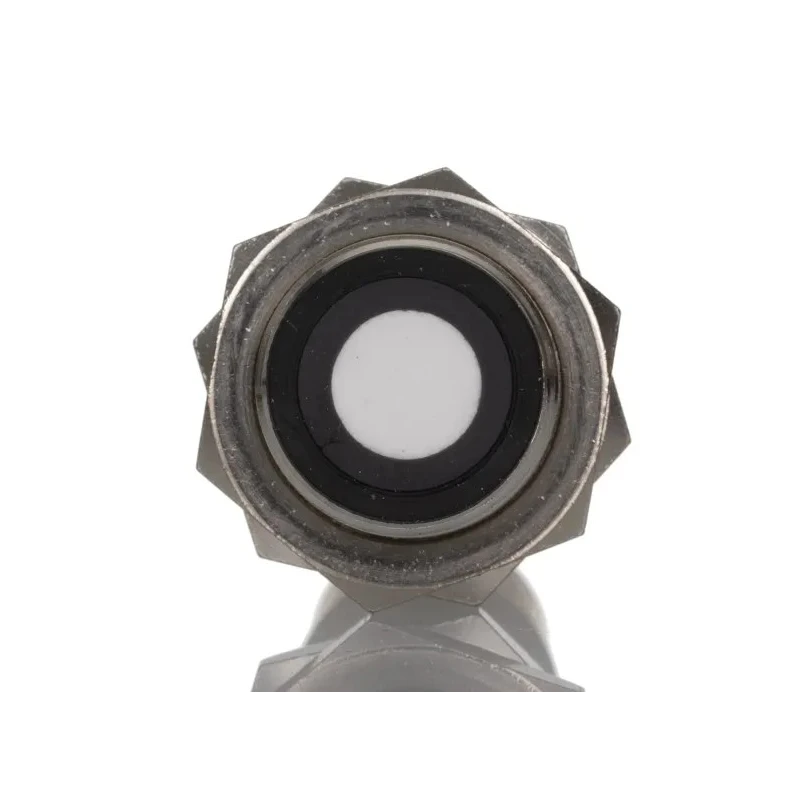

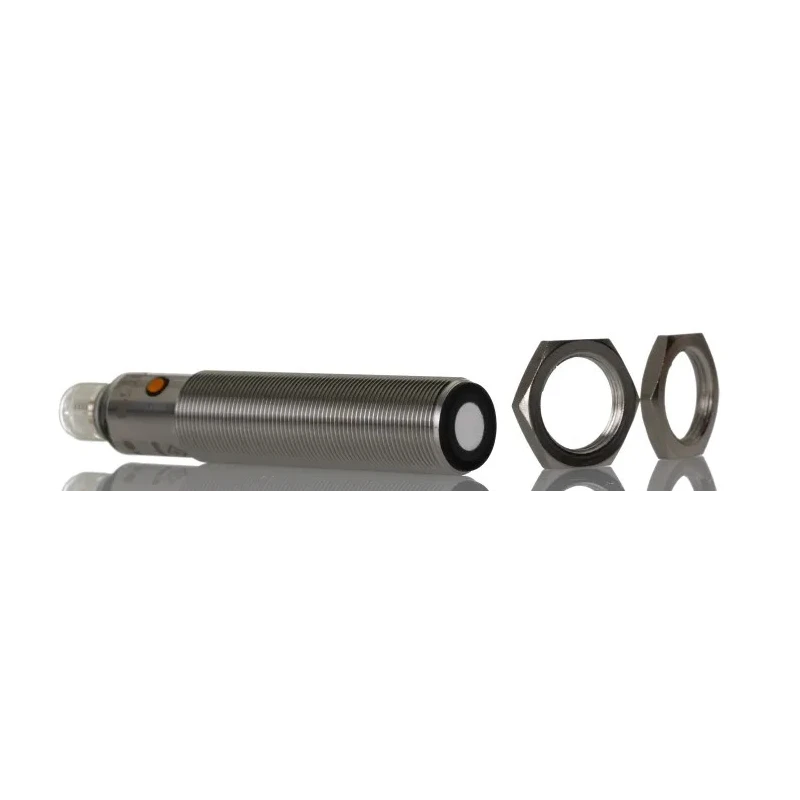

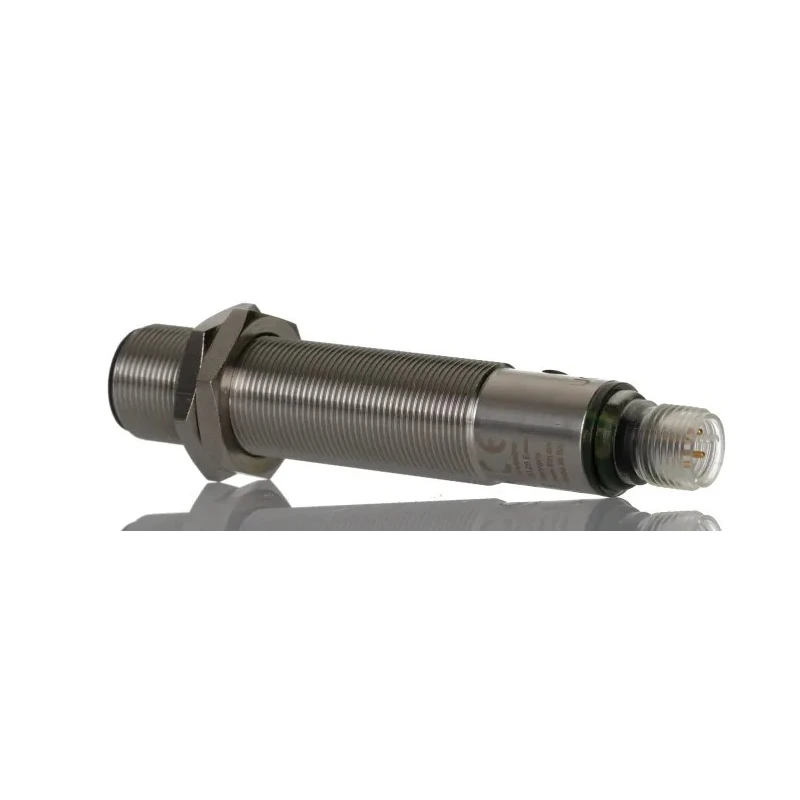

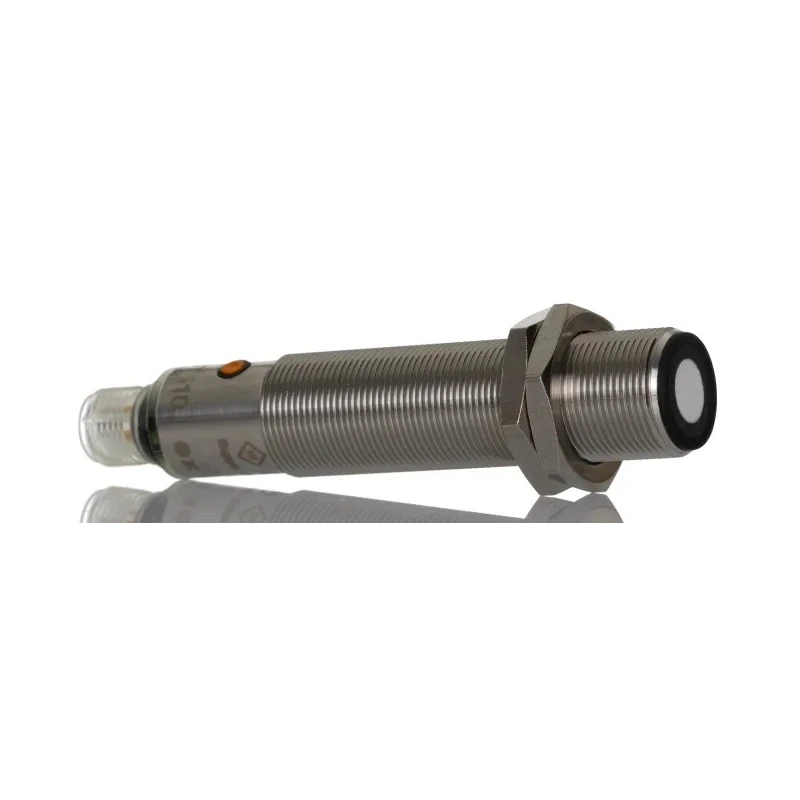

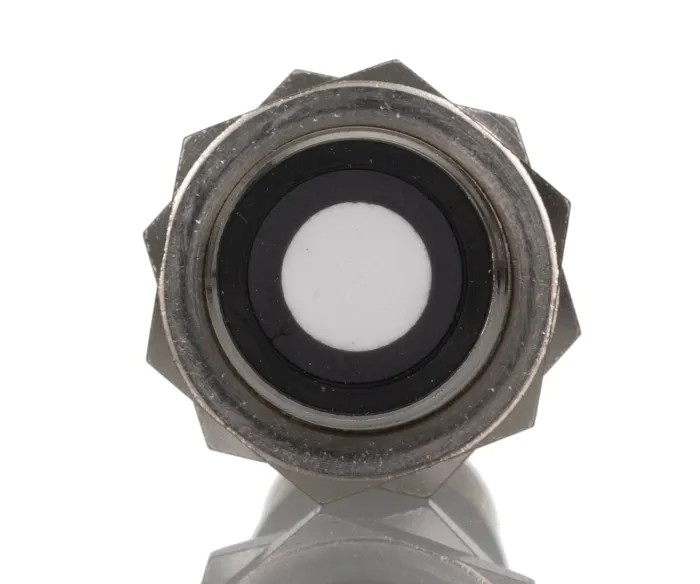

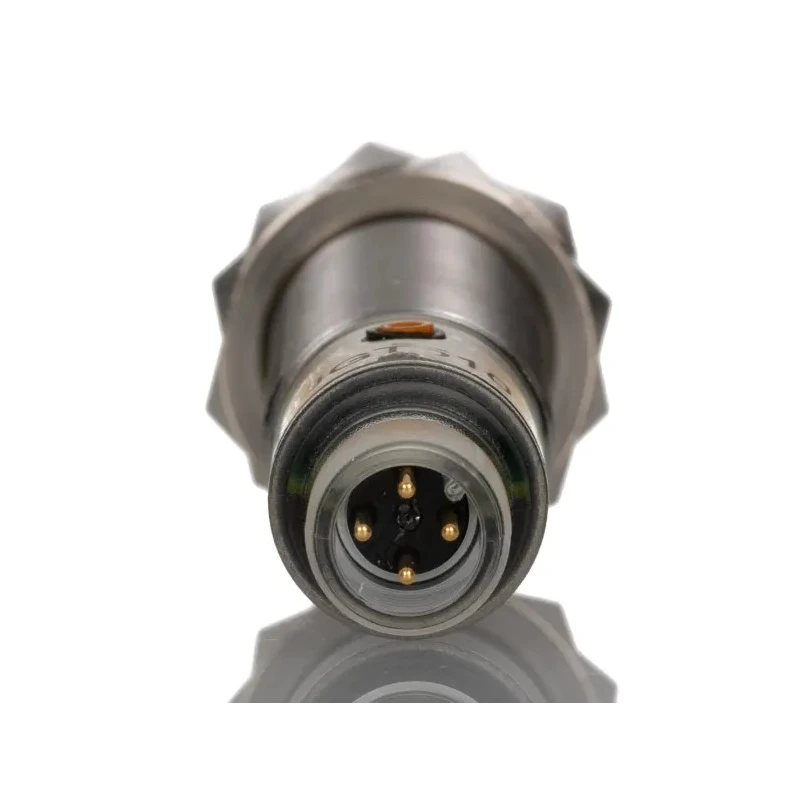

ifm electronic Threaded Barrel Ultrasonic Proximity Sensor M18 x 1, 1.6 m Detection Range, 3V-30V dc, 55mA PNP Output UGT510

ifm electronic UGT510 is a threaded barrel Ultrasonic Proximity Sensor featuring a compact M18 x 1 body style and a length of 97.5 mm. It operates with a supply voltage ranging from 3V up to a maximum of 30 V dc, delivering a maximum switching current of 55 mA through a PNP output type. The sensor uses ultrasonic sound waves for proximity detection, allowing it to reliably sense objects over a maximum detection distance of 1.6 meters. Its robust housing constructed from polyamide, stainless steel, and epoxy glass ceramic provides high durability and resistance, supported by an IP67 ingress protection rating suitable for harsh industrial environments.

The UGT510 sensor series from ifm electronic is designed for industrial automation and control applications where long-range sensing and detection of difficult or soiled surfaces are required. The sensor includes an IO-Link interface enabling seamless communication and easy parameter configuration within modern control systems. Operating temperature range of -20°C to 70°C covers typical factory and outdoor conditions.

Mounting is facilitated by the threaded barrel design and screw terminals allow secure electrical connections. The sensor conforms to international standards and approvals including CE, cULus, and various EN and UL certifications, making it suitable for global industrial compliance requirements.

Robust high-grade stainless steel and polyamide housing ensures long service life. Ultrasonic technology enables detection of transparent, shiny, or colored objects. Wide sensing range up to 1.6 meters supports flexible application setups.

Easy setting via IO-Link and button teach facilitates quick commissioning. IP67 rating safeguards electronics against dust and water ingress. Low switching frequency of 3Hz supports stable operation for slow-moving targets.

Compact M18 x 1 threaded barrel housing supports versatile mounting options. Suitable for use in demanding environments including manufacturing, automation, packaging, and material handling industries.

This sensor is an ideal solution for industrial proximity detection tasks where reliability under adverse conditions and precise distance measurement are necessary. Explore more sensors and automation products on EnvMart to enhance your equipment capabilities and operational efficiency.
