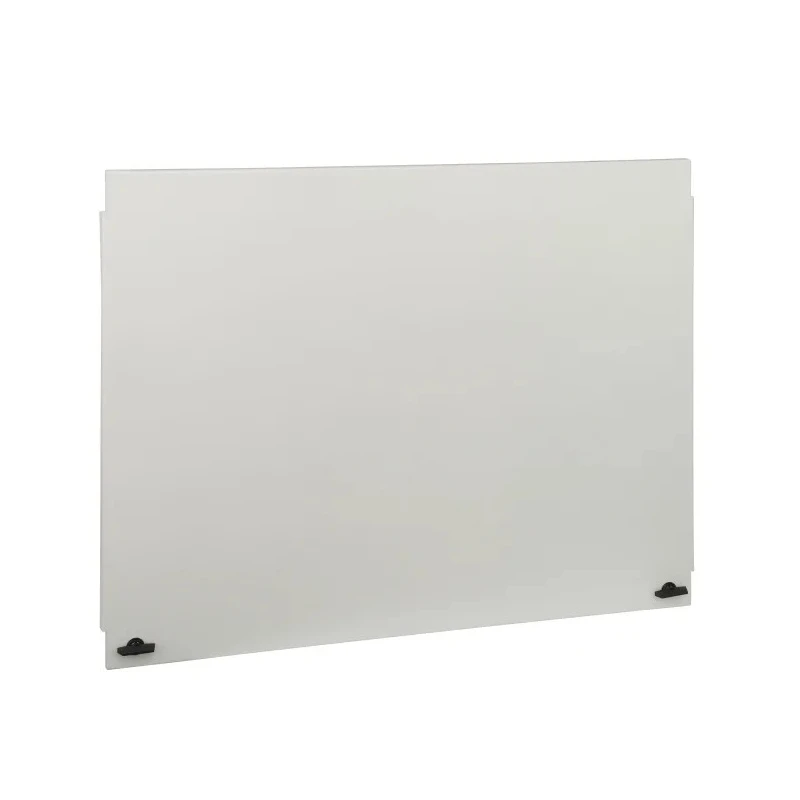

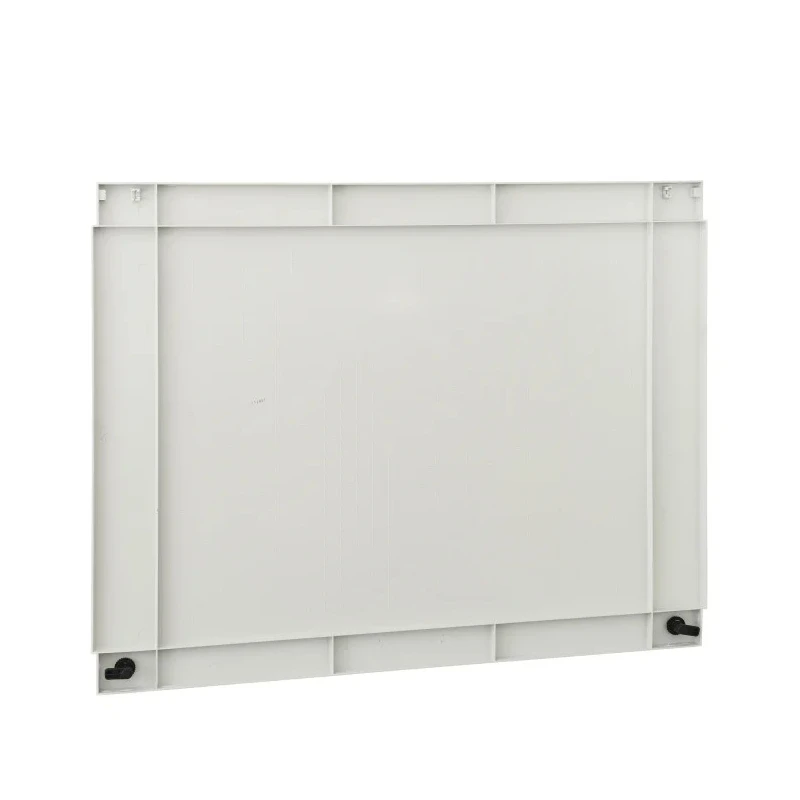

Schneider Electric PanelSeT Series Lockable Fibreglass Reinforced Polyester Enclosure Single Door RAL 7035 NSYPAP54G

Schneider Electric NSYPAP54G PanelSeT Series lockable enclosure door is crafted from fibreglass reinforced polyester with a RAL 7035 grey finish, designed specifically for use with Thalassa PLM wall-mounted enclosures.

This single door is constructed to provide robust protection with its IP66 and IK10 ratings, also featuring double insulation classified as class II to ensure electrical safety. It is made from self-extinguishing material and insulator components, suitable for industrial, electrical, automation, water treatment, and commercial applications requiring secure enclosure protection.

The door operates reliably across a wide ambient temperature range from -50 to +130 °C. It is compatible with plain and glazed door versions and is supplied with reversible inner doors for flexible installation.

Designed with user convenience in mind, closure is achieved via quarter-turn screws and includes necessary fixing components and brass inserts. The chassis plates included are fabricated from galvanised steel and sheet steel with perforations optimized for ventilation.

The enclosure door meets the rigorous NFC 15100 standard and holds approvals from BV, IMQ, GL, LROS, and UL/c, demonstrating compliance with international quality and safety standards.

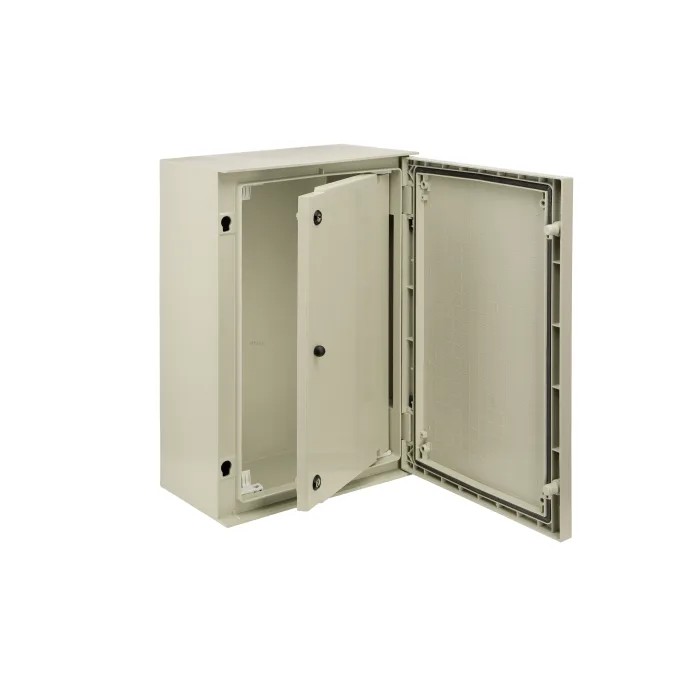

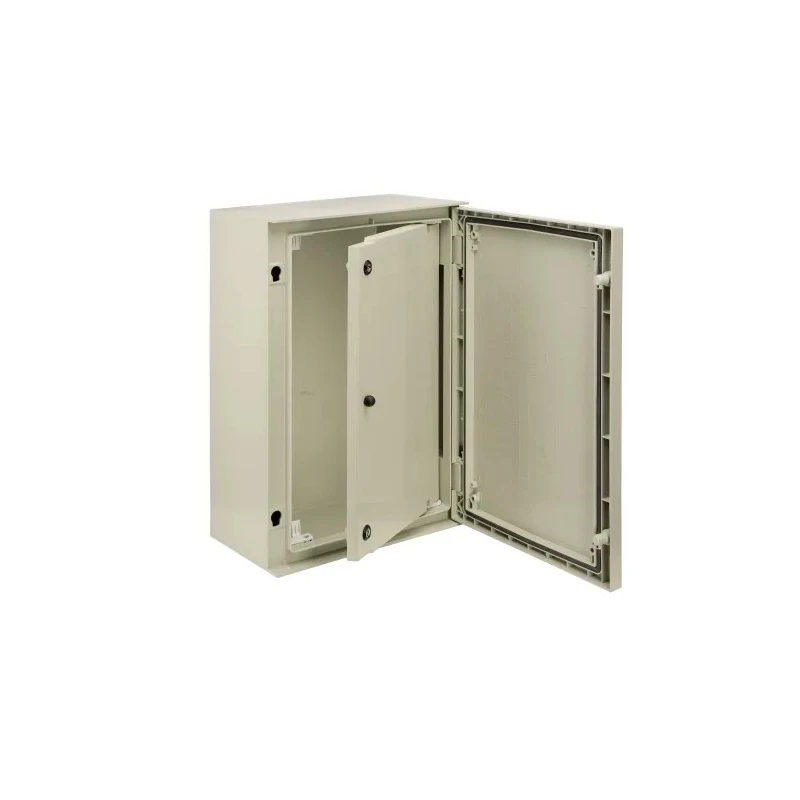

Standard features include lockable access for security and compatibility with the Thalassa PLM enclosure range, making it suitable for industrial electrical installations needing durable, weather-resistant enclosure solutions.

The door is lockable and designed as a single door type for secure access. Constructed from fibreglass reinforced polyester ensuring durability and corrosion resistance. Colour is grey with RAL 7035 code for standardized finish.

Compatible for use with Thalassa PLM enclosures providing seamless integration. Provides protection rated at IP66 and IK10, suitable for harsh environmental conditions. Operates reliably in ambient temperature range from -50 to +130 °C.

Features double insulation (class II) protection and self-extinguishing materials for safety. Available with plain and glazed door versions and reversible inner doors. Includes closure by quarter-turn screws and comes with fixings and brass inserts for mounting.

Complies with NFC 15100 standard and holds multiple approvals including BV, IMQ, GL, LROS, and UL listings. Explore Schneider Electric PanelSeT Series enclosures and components for reliable electrical protection solutions at EnvMart.
