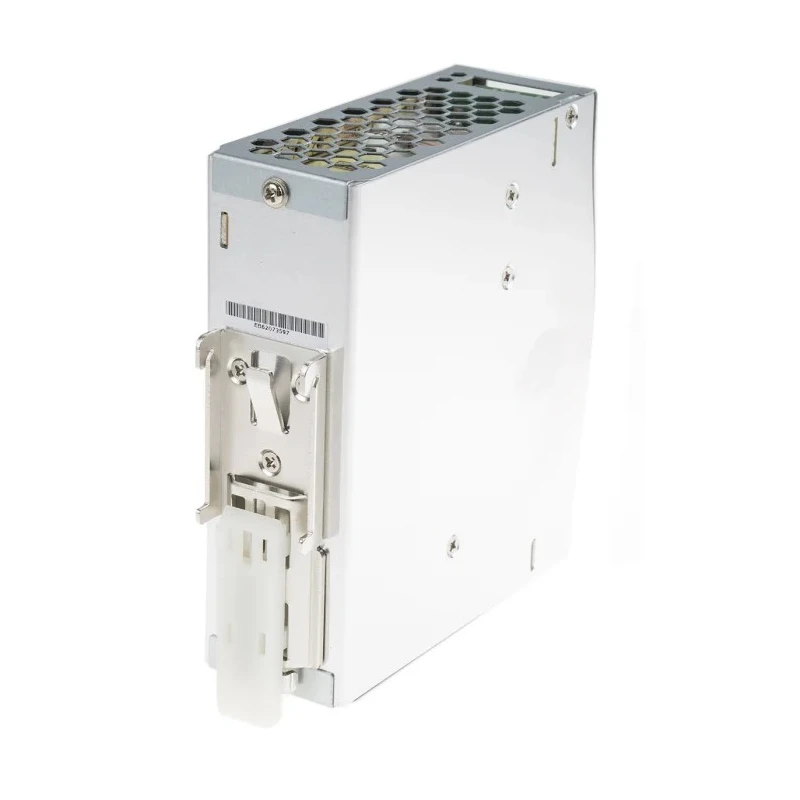

RS PRO NDR Series Switched Mode DIN Rail Power Supply 120W, 12V DC, 10A Output NDR-120-12
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Power | 120W |
| Height | 125mm |
| Model | NDR-120-12 |
| Depth | 114mm |
| Width | 40mm |
| Series | NDR |
| Output Current | 10A |
| Maximum Operating Temperature | 70°C |
| Sub Type | Switched Mode |
| Minimum Operating Temperature | -20°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 264V ac |
| Electrical Phase | 1 |
| Standards/Approvals | UL, TUV EN 609501, RoHS |
| Maximum Output Voltage | 14V dc |
| Minimum Input Voltage | 90V ac |
Key Features
- Comes with universal AC input voltage range from 90V to 264V AC.
- Operates safely in temperatures from -20°C up to 70°C.
- Equipped with protections for short circuit, overload, over voltage, and over temperature.
- Designed for industrial use with UL and TUV approvals and RoHS compliance.
- Compact metal housing ensures efficient power dissipation and durability.
- Supports remote DC-OK signaling for system status monitoring.
- Passive cooling by free air convection eliminates the need for fans.
- Suitable for mounting on TS-35/7.5 or TS-35/15 DIN rails.
Product Description
Mean Well NDR-120-12 is a switched mode DIN Rail power supply designed for industrial applications requiring reliable DC power delivery. This model provides 120 watts of power at 12 volts DC output with a maximum current of 10 amps, ideal for use in automated systems and electro-mechanical apparatus.
The power supply accepts a wide AC input range from 90V to 264V, making it suitable for varied power grid conditions. It operates efficiently with an approximate 85.5% efficiency and is housed in a rugged metal casing that enhances heat dissipation under harsh working environments.
Operating temperature range from -20°C to 70°C ensures consistent performance in demanding industrial settings. The NDR-120-12 includes multiple protection features against short circuits, overloads, over voltage, and overheating, ensuring safety and longevity of connected devices.
Featuring UL 508 industrial control equipment certification and compliance with TUV EN 60950-1 and RoHS standards, the product aligns with international safety and environmental norms. Its compact dimensions (125mm height, 40mm width, and 114mm depth) enable installation in tight cabinet spaces.
The unit can be easily mounted on standard TS-35/7.5 or TS-35/15 DIN rails with passive cooling by free air convection, eliminating the need for additional ventilation equipment.
This DIN Rail power supply is extensively used in semiconductor fabrication, industrial automation, factory equipment, and instrumentation systems to power sensors, motors, relays, actuators, and more.
Universal AC input voltage range from 90V to 264V AC. Protective features include short circuit, overload, and over temperature protections. Remote DC-OK signal for monitoring output status. Compact metal housing for enhanced heat dissipation.
UL, TUV, and RoHS certifications ensure compliance and safety. Mountable on TS-35/7.5 or 15 DIN rails for flexible installation. Passive cooling through free air convection. High efficiency around 85.5% to reduce energy loss.
3-year warranty from Mean Well for quality assurance. Explore a comprehensive selection of industrial DIN Rail Power Supplies at EnvMart for your automation and control system needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides an output power of 120 watts at a voltage of 12 volts DC with a maximum output current of 10 amps.
The compact dimensions are 125mm in height, 40mm in width, and 114mm in depth, allowing for installation in tight spaces.
It operates efficiently in temperatures ranging from -20°C to 70°C, suitable for demanding industrial environments.
This model includes protections against short circuits, overloads, over voltage, and over temperature to ensure safety and longevity of connected devices.
It can be easily mounted on standard TS-35/7.5 or TS-35/15 DIN rails, facilitating flexible installation.
The NDR-120-12 is certified under UL, TUV EN 60950-1, and complies with RoHS standards, aligning with international safety and environmental norms.
This model operates with an approximate efficiency of 85.5%, which helps reduce energy loss during operation.
It features passive cooling through free air convection, eliminating the need for fans and additional ventilation equipment.
This DIN rail power supply is extensively used in semiconductor fabrication, industrial automation, factory equipment, and instrumentation systems to power various devices.
The NDR-120-12 is manufactured in China.
