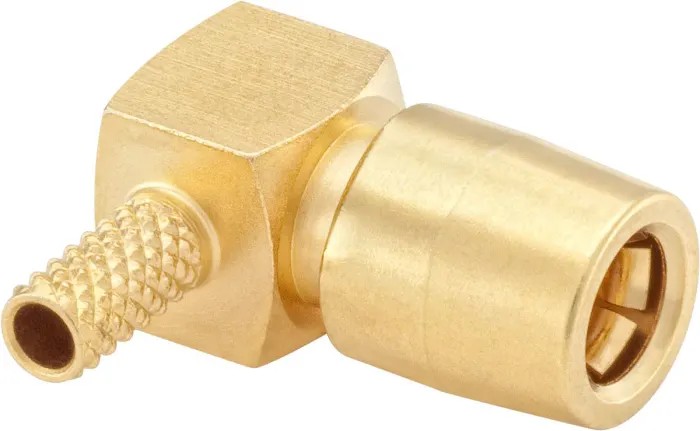

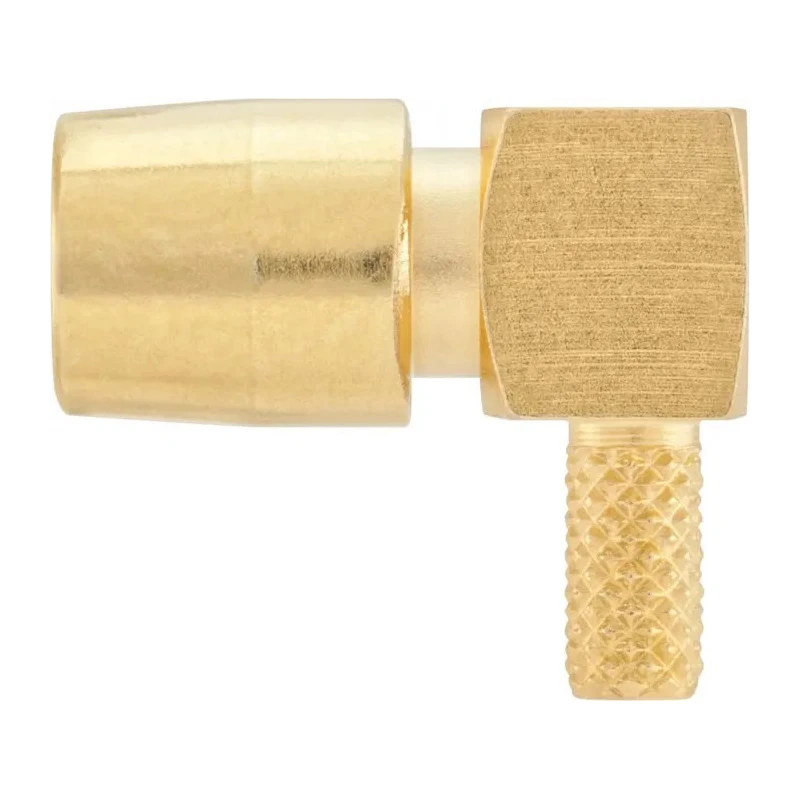

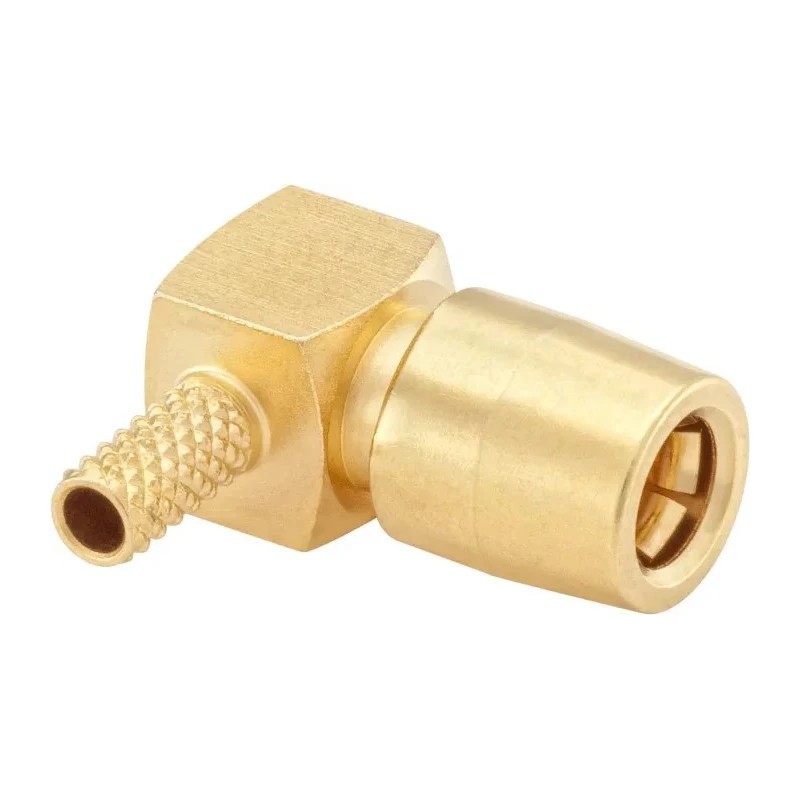

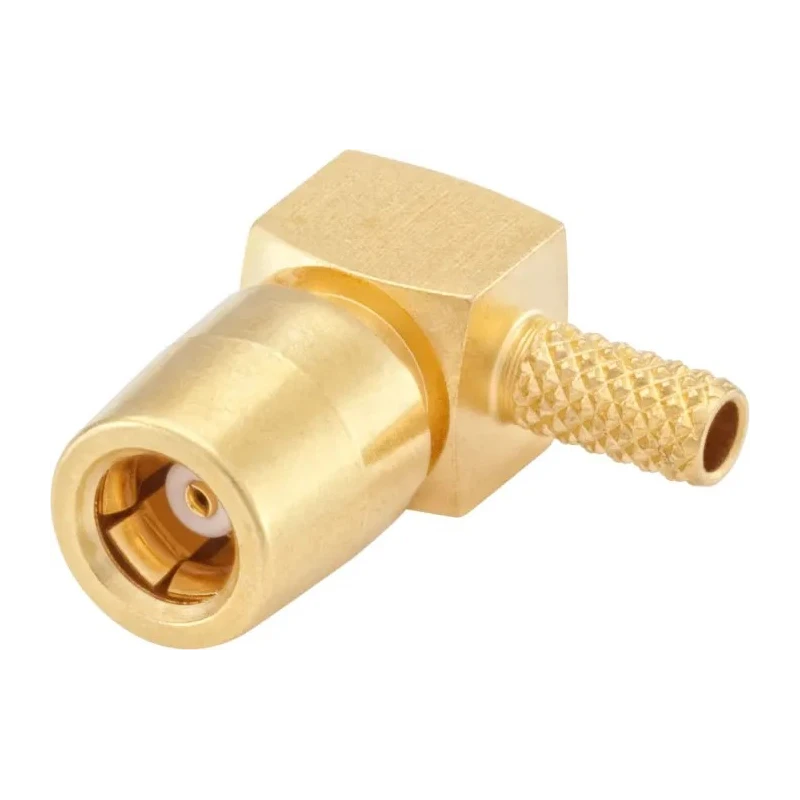

Rosenberger 59 Series Coaxial Connector Cable Flange Female SMB 50 Ω Right Angle Body 59K214-302L5
Specifications
| Country of Origin | Hungary |
|---|---|
| Size | Subminiature |
| Brand | Rosenberger |
| Orientation | Right Angle |
| Model | 59K214-302L5 |
| Mount Type | Cable, Flange |
| Operating Frequency | 4GHz |
| Contact Material | Brass |
| Series | 59 |
| Maximum Operating Temperature | 155°C |
| Cable Type | RG174A/U, RG316/U, RG188A/U |
| Minimum Operating Temperature | -55°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | SMB |
| Body Plating | Gold |
Key Features
- Coaxial connector type SMB with flange cable mount for secure installation.
- Gold-plated brass contact and body ensure excellent conductivity and corrosion resistance.
- Operates efficiently from DC up to 4 GHz frequency range.
- Supports wide temperature range from -55°C to 155°C for harsh environments.
- Compatible with cable types RG174A/U, RG316/U, and RG188A/U subminiature cables.
- Snap-on coupling mechanism facilitates easy mating and demating without tools.
- Right angle orientation optimizes cable routing in compact spaces.
- Normal polarity female connector suitable for various RF system configurations.
Product Description
Rosenberger 59K214-302L5 is a high-quality coaxial connector cable from the 59 Series, designed for demanding RF applications requiring a 50 Ω impedance. This flange-mounted Flange Female SMB connector features a right angle body configuration, making it ideal for installations where space-saving and efficient cable routing are essential.
The connector body and contacts are crafted from brass with gold plating, providing superior conductivity and reliable durability in varying environmental conditions. Its snap-on coupling interface is compliant with industry standard IEC 60169-10, CECC 22130, and MIL-PRF-39012, ensuring dependable mechanical and electrical performance.
This connector supports operating frequencies from DC to 4 GHz, accommodating a wide range of RF applications such as antennas, GPS systems, PC/LAN, base stations, and radio boards. It is compatible with RG174A/U, RG316/U, and RG188A/U subminiature cable types, making it versatile for various cable assembly needs.
The Rosenberger 59 Series connector operates reliably over a temperature range of -55°C up to 155°C, suitable for both laboratory and industrial field environments. Its normal polarity design and female snap-on coupling make it a convenient choice for quick, secure connections in telecommunication and electronics manufacturing.
This product is manufactured in Hungary and supplied new for professional use. Coaxial connector type SMB with flange cable mount for secure installation. Gold-plated brass contact and body ensure excellent conductivity and corrosion resistance.
Operates efficiently from DC up to 4 GHz frequency range. Supports wide temperature range from -55°C to 155°C for harsh environments. Compatible with cable types RG174A/U, RG316/U, and RG188A/U subminiature cables. Snap-on coupling mechanism facilitates easy mating and demating without tools.
Right angle orientation optimizes cable routing in compact spaces. Normal polarity female connector suitable for various RF system configurations. Explore EnvMart for a wide selection of Rosenberger Coaxial Connectors and compatible RF components for industrial, laboratory, telecommunications, and manufacturing applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates efficiently from DC up to 4 GHz, making it suitable for various RF applications.
It is compatible with RG174A/U, RG316/U, and RG188A/U subminiature cable types.
This connector features a flange cable mount, ensuring secure installation.
The impedance of this connector is 50 Ω, which is standard for many RF applications.
The connector body and contacts are made from brass with gold plating, providing excellent conductivity and corrosion resistance.
The snap-on coupling mechanism facilitates easy mating and demating without the need for tools, enhancing convenience during installation.
This model has a right angle orientation, which optimizes cable routing in compact spaces.
The contact gender of this connector is female, suitable for various RF system configurations.
It is compliant with industry standards IEC 60169-10, CECC 22130, and MIL-PRF-39012, ensuring reliable performance.
The 59K214-302L5 connector is manufactured in Hungary.
This connector is part of the Rosenberger 59 Series, designed for demanding RF applications.
