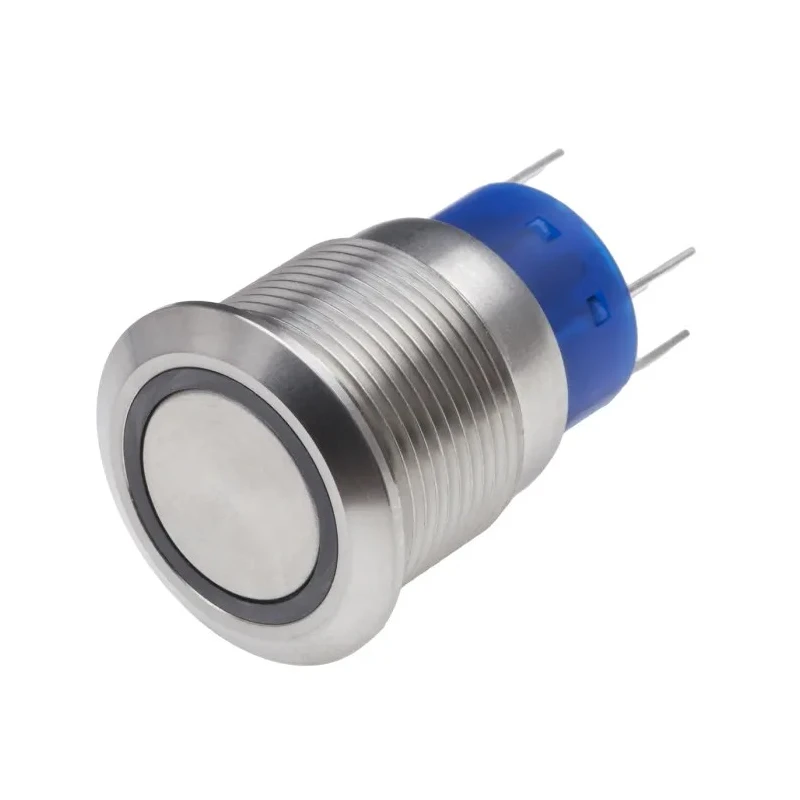

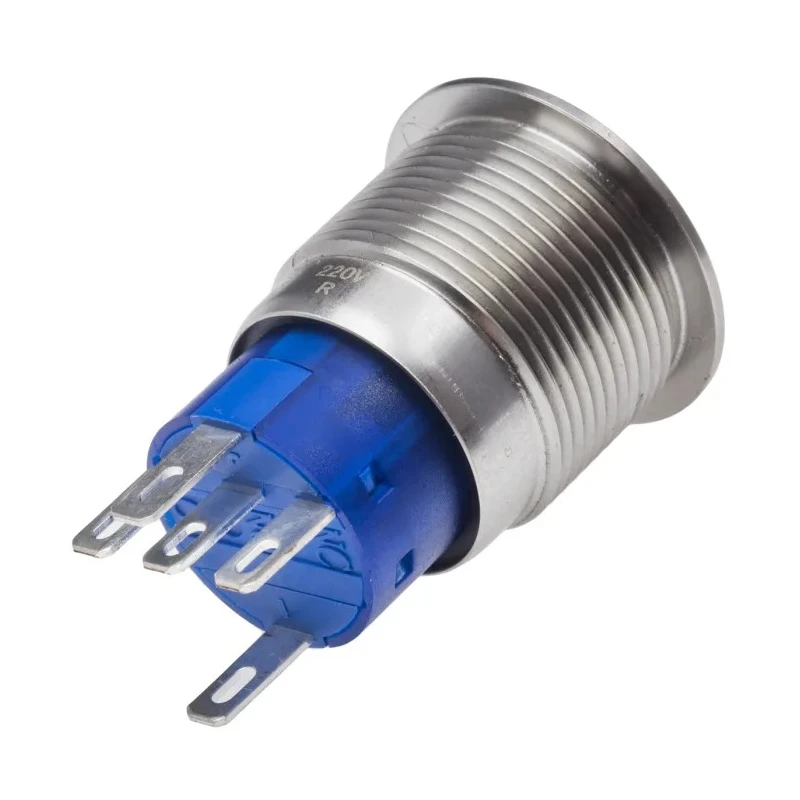

RS PRO Illuminated Momentary Push Button Switch Panel Mount SPDT, Yellow LED, IP67, 250 V AC 5A 111-5809

RS PRO 111-5809 Illuminated Momentary Push Button Switch is a highly reliable panel-mounted switch designed for industrial and commercial control systems. Featuring a SPDT contact configuration and yellow LED illumination, this switch is engineered for precision momentary operation with fast response.

The actuator possesses a silver color and round style, offering a smooth, ergonomic interface. Its compact design allows installation through a 19.2 mm panel cutout, suitable for space-restricted applications. The silver plated copper contacts ensure stable electrical connection and durability under repetitive use.

With an IP67 ingress protection rating, this switch is dust-tight and can withstand immersion in water, making it ideal for harsh environments. The device supports a contact voltage of 250 V AC and a maximum contact current of 5 amperes, making it compatible with a wide range of electrical controls.

Operating reliably in a temperature range from -20°C to 55°C, the switch conforms to strict international standards and approvals including cULus Recognized E 187490, ENEC 18, and IK10 for impact resistance.

Typical applications for this push button switch include industrial control gear, medical equipment, communications equipment, and projects requiring dependable switching under demanding conditions. The yellow LED illumination provides a clear visual status indication, enhancing operational safety and usability.

This switch operates momentarily for precise control applications. Designed for panel mounting with a 19.2 mm cutout size. Silver actuator color with round style for ergonomic use. IP67 rating ensures protection against dust and immersion in water.

Capable of handling 250 V AC voltage and 5A current. Features silver plated copper contacts for reliable and firm connections. Suitable for industrial, medical equipment, and communications equipment applications. Operates reliably between -20°C and 55°C temperature range.

LED illumination in yellow provides visual indication for ease of monitoring. Switch configuration includes 1 normally open and 1 normally closed contact. Sturdy construction with standards approvals including cULus Recognized, ENEC 18, and impact protection IK10.
