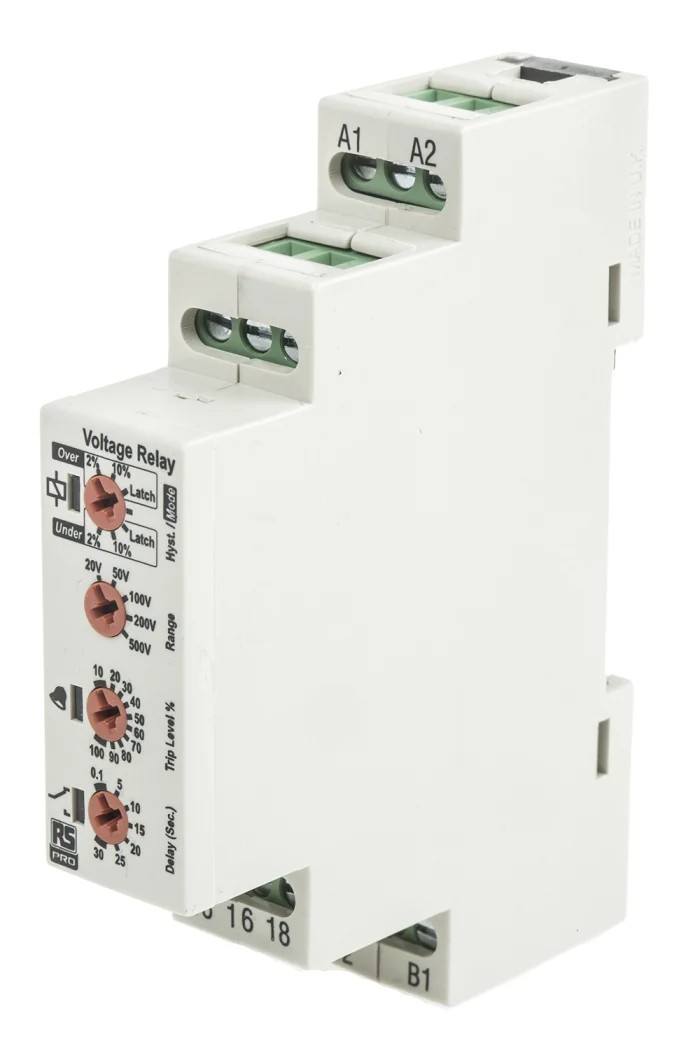

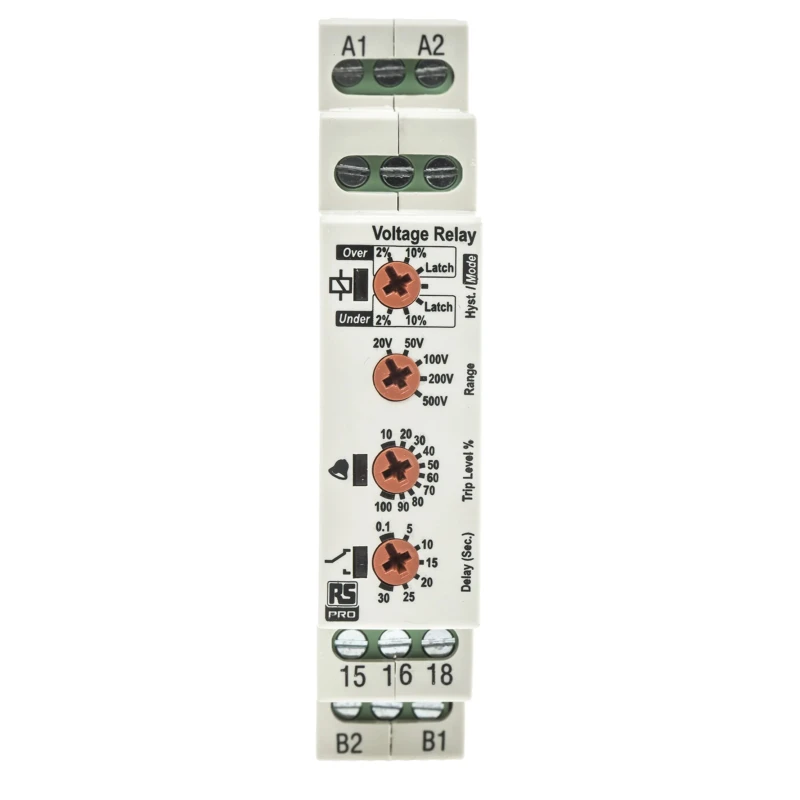

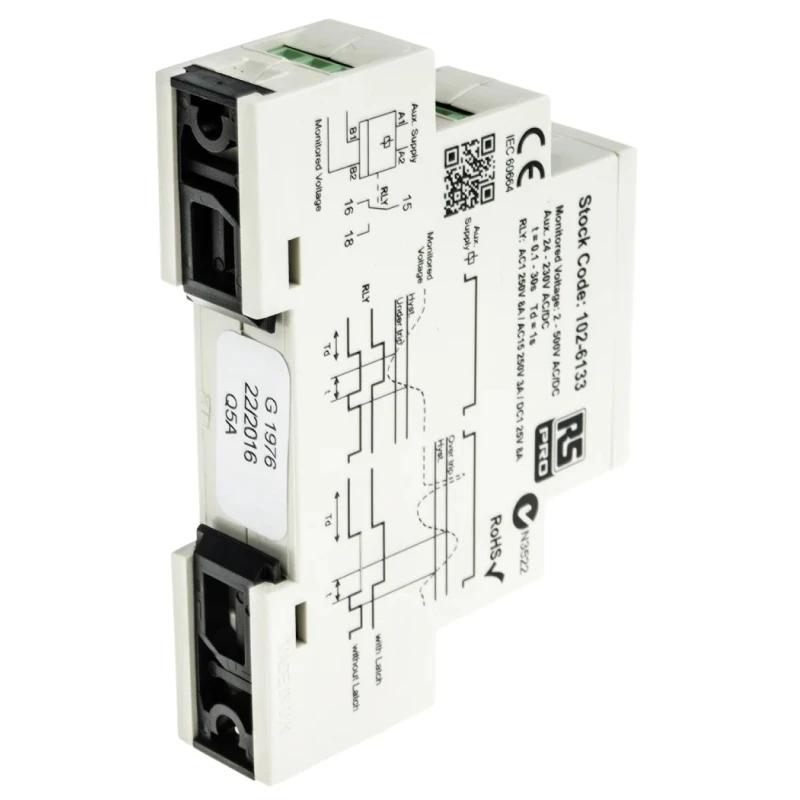

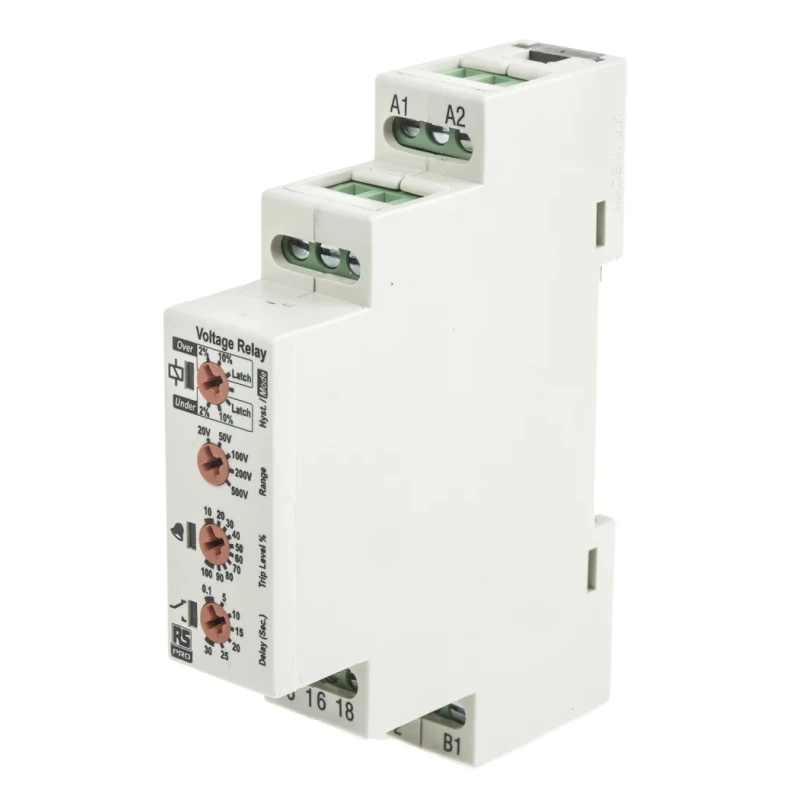

RS PRO Monitoring Relay, 1 Phase, Maximum 500 V Monitor Range, SPDT Contact, DIN Rail Mount, 230V AC, 24V AC 102-6133

RS PRO 102-6133 monitoring relay is a high-precision electrical device designed for reliable voltage monitoring in single-phase power systems. It protects equipment by detecting undervoltage and overvoltage conditions within an adjustable voltage range of 50 to 500 V. This device is ideal for industrial automation, electrical control panels, manufacturing, and commercial electrical installations requiring secure voltage monitoring and protection.

The relay features a SPDT (single pole double throw) contact configuration and supports a supply voltage of both 230 V AC and 24 V AC, affording flexibility for various system voltages. The DIN rail mounting profile and screw terminal connections ensure easy integration and secure installation in standard electrical enclosures.

To avoid nuisance trips caused by transient voltage dips, a user-adjustable time delay from 0.1 to 30 seconds is incorporated. A green LED indicator clearly displays the device’s supply status, aiding maintenance and monitoring tasks.

The unit operates reliably across a wide ambient temperature range from -20°C to +60°C and carries critical certifications including RoHS compliance, EN 61000-6-4 electromagnetic compatibility standards, cUL listing, and IEC 60664 safety approvals, underscoring quality and safety assurance.

Compact and robust, the relay measures 66.5 mm in length, 17.5 mm in width, and 89 mm in height, making it suitable for dense panel designs. Rated for a maximum contact current of 8 A, it handles switching demands safely and efficiently.

With its capabilities, this RS PRO relay is an excellent choice for protecting motors, circuits, and appliances in industrial, manufacturing, commercial, and automation system environments where precise voltage monitoring is critical.

This relay features adjustable undervoltage and overvoltage protection with a voltage range from 50 to 500 V. Equipped with a time delay from 0.1 to 30 seconds to prevent false tripping from momentary voltage dips. Supplies voltage at both 230 V AC and 24 V AC compatibility for versatile use.

Designed for DIN rail mounting with screw-type terminals for secure connections. Includes a green LED indicator to easily monitor supply status. Operates within an ambient temperature range of -20°C to +60°C. Compact dimensions: 66.5 mm length, 17.5 mm width, and 89 mm height for efficient panel installation.

Rated contact current of 8 A ensuring reliable switching performance. Conforms to safety and electromagnetic compatibility standards including RoHS, EN 61000-6-4, cUL, and IEC 60664. Manufactured in the United Kingdom and suitable for industrial automation, electrical protection, and control applications.
