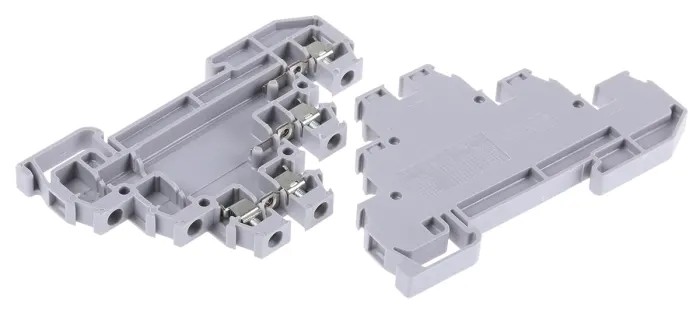

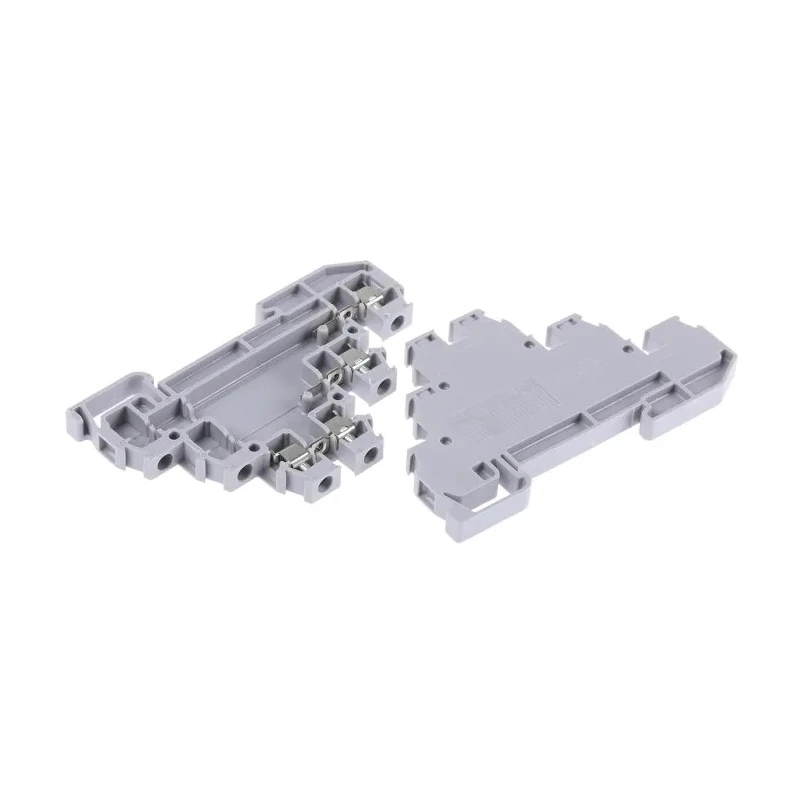

Entrelec SNA Series 3-Level Grey DIN Rail Terminal Block Screw Clamp 2.5mm² 380V AC 22A 1SNA115542R1200
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 380V ac |
| Brand | Entrelec |
| Colour | Grey |
| Model | 1SNA115542R1200 |
| Series | SNA |
| Termination Type | Screw |
| Maximum Operating Temperature | 40°C |
| Number of Levels | 3 |
| Sub Type | Screw Clamp |
| Minimum Operating Temperature | -5°C |
| Pitch | 6mm |
| Standards/Approvals | EU Directive 2002/95/EC, EAC, cUL, CSA, CE |
| Maximum Wire Size AWG | 12AWG |
| Cable CSA | 2.5mm² |
| Terminal Block Current | 22A |
Key Features
- Constructed in grey polyamide 6.6 with high flame resistance for robust industrial use.
- Supports a maximum wire size of 12 AWG and current of 22 amps.
- Features three levels for sensor wiring with screw termination for secure connections.
- Operating temperature range from -5°C to 40°C ensuring reliable performance.
- Complies with EU Directive 2002/95/EC and certifications including CE, cUL, CSA, EAC.
- Suitable for use in industrial electronics, sensor wiring, control panels, and automation systems.
- Provides easy wiring with captive screws and cable entry design for enhanced installation.
Product Description
Entrelec 1SNA115542R1200 is a three-level DIN Rail Terminal Block constructed with grey polyamide 6.6, offering flame resistance and durability. This terminal block is rated for 380V AC and supports wire sizes up to 2.5mm² with a current rating of 22A. It features a screw-clamp termination type, ideal for secure cable connections in industrial wiring systems.
The 3-level design facilitates efficient sensor wiring by allowing common connection of supply rails using pre-assembled jumper bars, freeing additional terminations for sensor signals. The mounting pitch is 6mm, designed specifically for symmetric DIN rails to meet IEC and BS standards.
Operating in a temperature range from -5°C to 40°C, this product remains reliable in typical industrial environments. It complies with relevant safety and environmental standards including EU Directive 2002/95/EC, CE marking, and North American approvals (cUL, CSA, EAC).
The terminal block’s features include captive hardened screw heads that prevent burring, and a cable clamp design to simplify installation while improving voltage and cable carrying capacity. This makes it well-suited for use in control panels, automation machinery, and sensor interfaces where compact and reliable wiring solutions are required.

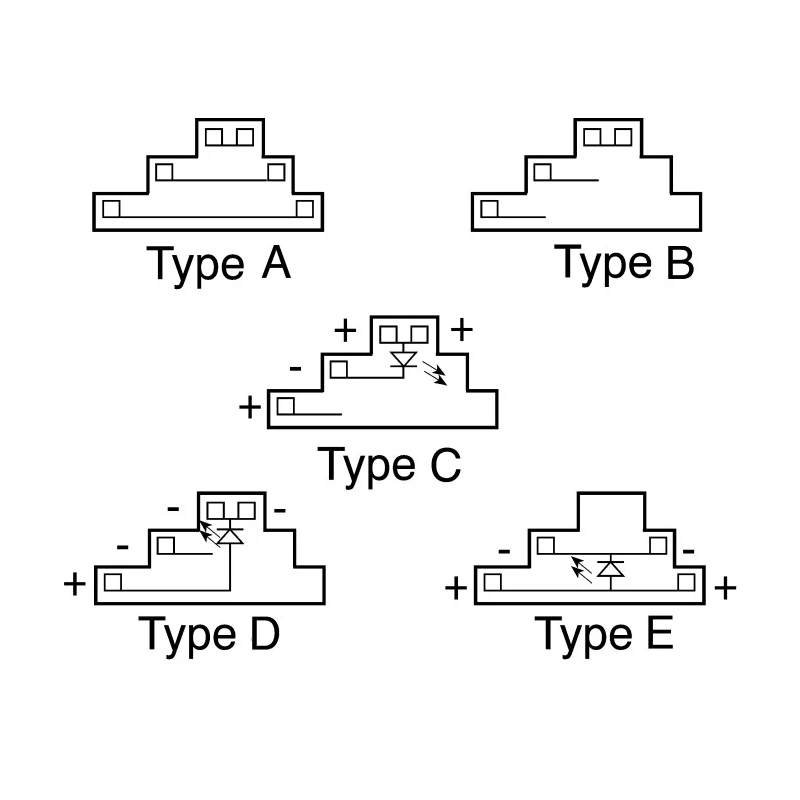

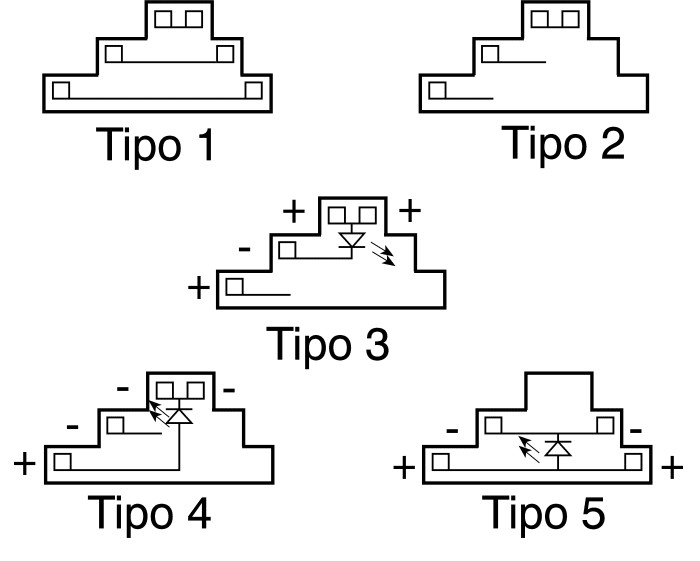

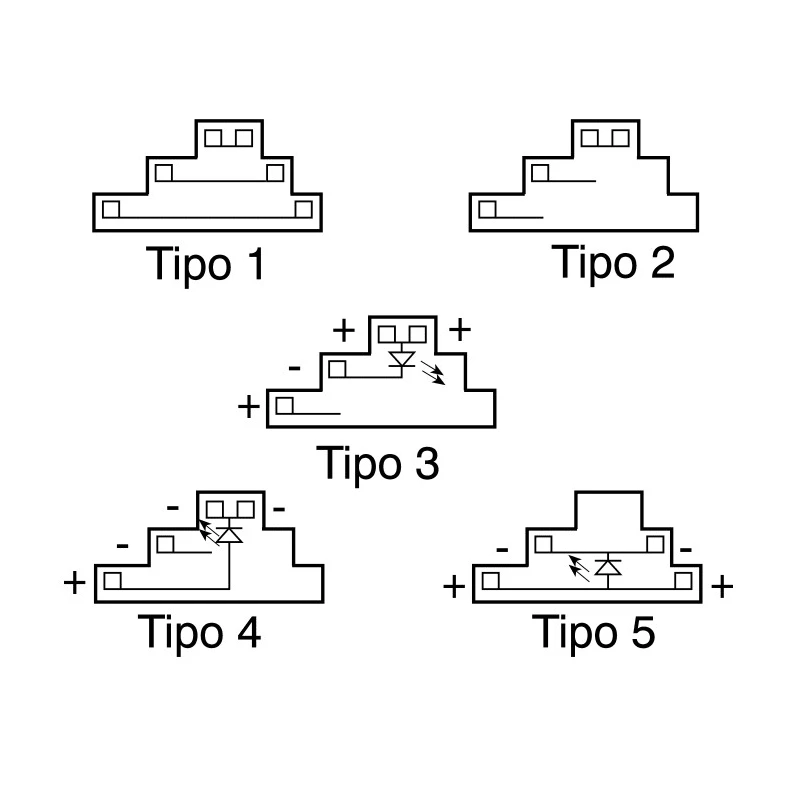

Entrelec’s SNA series terminal blocks provide modular solutions for electrical and industrial wiring tasks with options for indicating and non-indicating sensor types, supporting both PNP and NPN sensor outputs. This model is particularly practical for power distribution and sensor signal separation within industrial control systems.
Constructed in grey polyamide 6.6 with flame resistance. Rated for 380V AC voltage and 22A current with 2.5mm² cable capacity. Screw clamp termination with captive screws for reliable connections. Three-level design for sensor wiring and power distribution.
Mounting pitch of 6mm compatible with symmetric DIN rails. Complies with EU Directive 2002/95/EC, CE, cUL, CSA, EAC certifications. Operating temperature -5°C to 40°C. Suitable for industrial, manufacturing, automation, and control panel applications.
Explore more high-quality DIN Rail Terminal Blocks and connectors at EnvMart to enhance your industrial wiring setups.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The terminal block has a maximum current rating of 22A.
It is rated for a voltage of 380V AC.
This terminal block can accommodate a maximum wire size of 12 AWG, which is equivalent to 2.5mm².
It uses a screw clamp termination type for secure connections.
The operating temperature range is from -5°C to 40°C.
This terminal block features a three-level design.
The mounting pitch is 6mm, designed for symmetric DIN rails.
It complies with EU Directive 2002/95/EC, CE, cUL, CSA, and EAC certifications.
It is suitable for use in industrial electronics, sensor wiring, control panels, and automation systems.
It features captive hardened screw heads that prevent burring and enhance installation.
