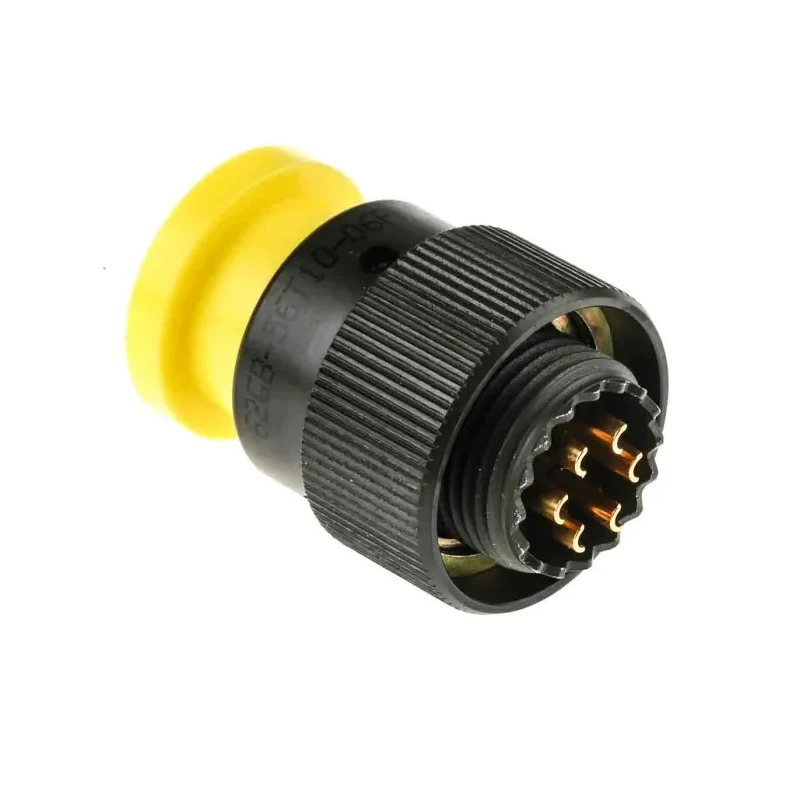

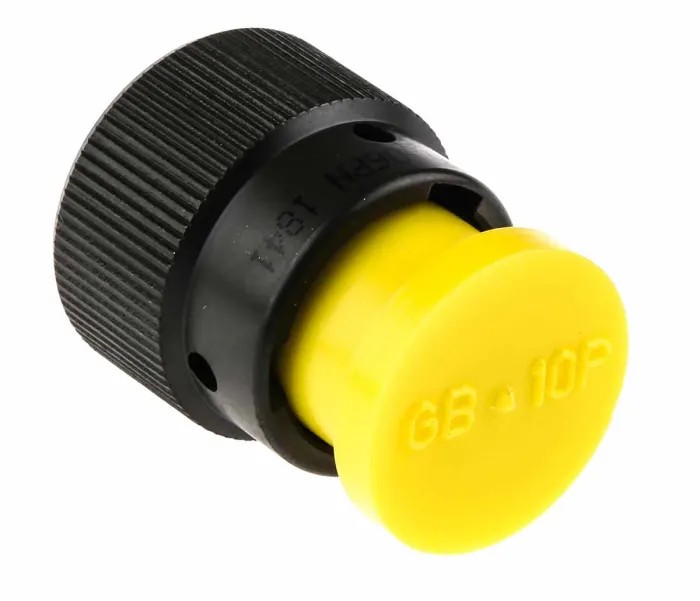

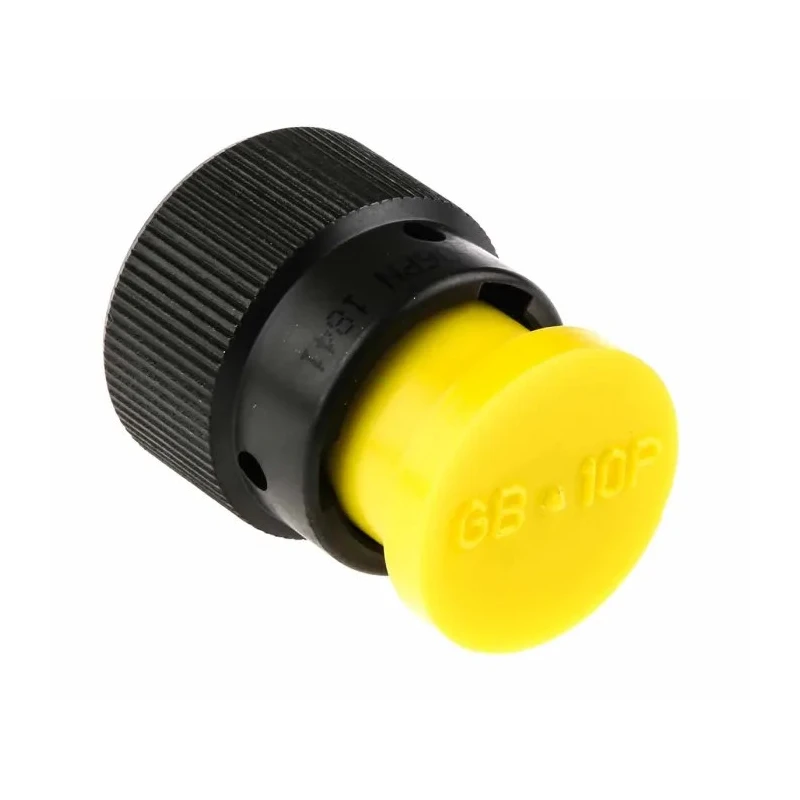

Amphenol Limited MIL Spec Circular Connector Miniature Bayonet Lock 6 Contacts Male 500-700V AC Solder 62GB-56T10-06PN
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500, 700V ac |
| Brand | Amphenol Limited |
| Colour | Olive |
| Orientation | Straight |
| Model | 62GB-56T10-06PN |
| Mount Type | Cable |
| Housing Material | Aluminium |
| Contact Material | Copper Tin |
| Series | 62GB |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Contact Plating | Gold |
| Number of Contacts | 6 |
| Contact Gender | Male |
| Connector Gender | Male |
| Shell Size | 10 |
| Military Standard | MIL-DTL-26482 |
| Mating Type | Bayonet |
| Connector Size | Miniature |
| Shell Plating | Zinc Cobalt |
Key Features
- Complies with MIL-DTL-26482 military standards ensuring reliability.
- Features a secure bayonet lock mating type for firm connection.
- Constructed with aluminium housing and zinc cobalt olive drab plating for corrosion resistance.
- Supports operation in wide temperature range from -55°C to 125°C.
- Includes solder termination type gold-plated copper tin contacts for optimal conductivity.
- Designed with shell size 10 and miniature connector size for compact installation.
- Offers strain relief and keying to prevent mismating and enhance durability.
- Operates at voltages of 500V to 700V AC suitable for industrial uses.
Product Description
Amphenol Limited 62GB-56T10-06PN MIL Spec Circular Connector is a robust, miniature bayonet lock cable connector featuring 6 male copper tin contacts plated with gold for reliable electronic connections. This connector meets the stringent MIL-DTL-26482 military standard, designed specifically for harsh industrial and military environments.
Made from a solid aluminium alloy shell with a corrosion-resistant zinc cobalt olive drab finish, the connector provides high durability and protection. Its miniature size and shell size 10 make it suitable for compact and demanding applications requiring secure cable mounting with solder termination.
The bayonet lock mating system ensures a secure and quick connection, preventing accidental disconnection during operation. It operates reliably within a temperature range from -55°C to 125°C and supports AC voltages between 500 to 700 volts.
The connector includes strain relief for enhanced mechanical stability and an exclusive shell style per BS9522 F0017 with a threaded shell for cable accessories. Its keyway design minimizes the risk of mismating, ensuring dependable and error-free installation.
This Amphenol 62GB series connector is ideal for military, aerospace, industrial automation, and other rugged applications requiring high-quality, miniature circular connectors compliant with environmental and electrical standards.
Complies with MIL-DTL-26482 military connector standards. Durable aluminium housing with zinc cobalt plating for corrosion resistance. Bayonet lock system for secure cable mounting connections. Gold-plated copper tin contacts with solder termination.
Miniature size and shell size 10 for compact integration. Wide operating temperature range (-55°C to 125°C) for harsh environments. Strain relief and keying features for secure and correct mating. Voltage rating of 500-700V AC suitable for industrial electronics.
Explore more high-quality Mil Spec Circular Connectors and related electronics components on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates at voltages between 500V and 700V AC, making it suitable for industrial applications.
This model complies with the MIL-DTL-26482 military standard, ensuring reliability in harsh environments.
It can operate within a temperature range from -55°C to 125°C, suitable for extreme conditions.
This connector features 6 male contacts, providing reliable electronic connections.
The housing is made from aluminium, while the contacts are copper tin plated with gold for optimal conductivity.
It utilizes a solder termination type for secure and reliable connections.
The shell size is 10, designed for compact installations.
It features a bayonet lock mating type, ensuring a secure connection during operation.
Yes, it includes strain relief to enhance mechanical stability and prevent disconnection.
The connector is finished in an olive drab color, which is part of its corrosion-resistant zinc cobalt plating.
The connector has a straight orientation, suitable for various mounting configurations.
It is ideal for military, aerospace, and industrial automation applications requiring high-quality connections.
