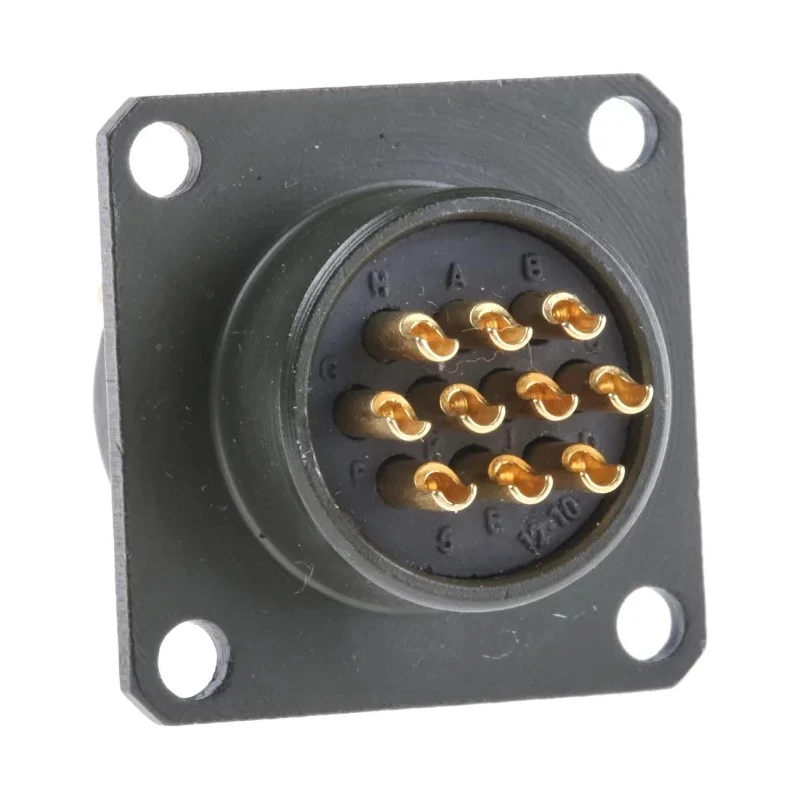

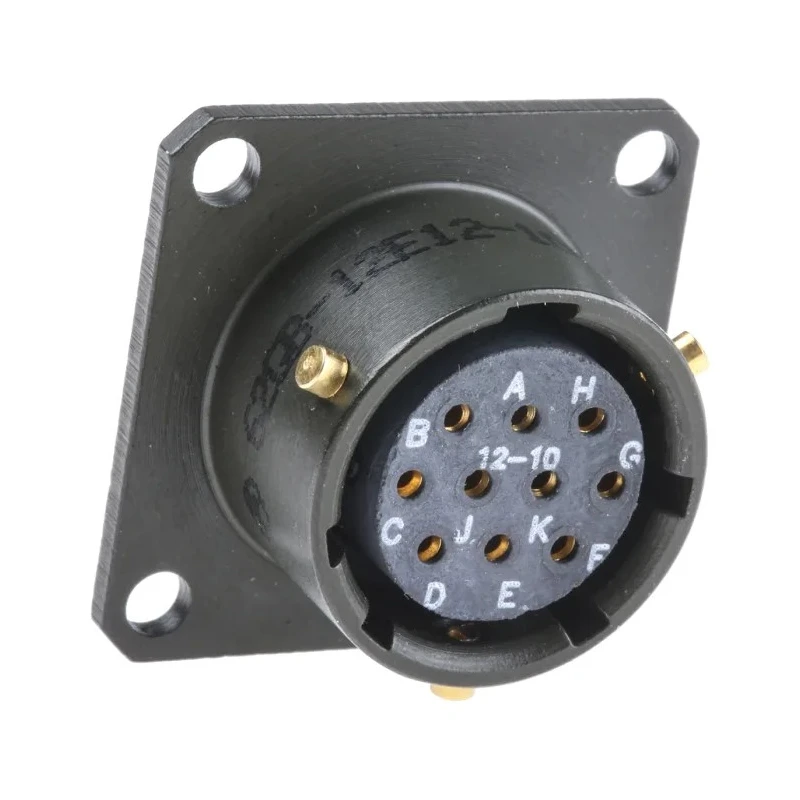

Amphenol Limited MIL Spec Circular Connector Copper Tin Straight 10 Way Box Mount 500, 700V ac 62GB-12E12-10SN
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500, 700V ac |
| Brand | Amphenol Limited |
| Colour | Olive |
| Orientation | Straight |
| Model | 62GB-12E12-10SN |
| Mount Type | Box Mount |
| Housing Material | Aluminium |
| Contact Material | Copper Tin |
| Series | 62GB |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Contact Resistance | 5 mΩ max |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Contact Gender | Female |
| Connector Gender | Female |
| Shell Size | 12 |
| Military Standard | MIL-DTL-26482 |
| Mating Type | Bayonet |
| Connector Size | Miniature |
| Shell Plating | Zinc Cobalt |

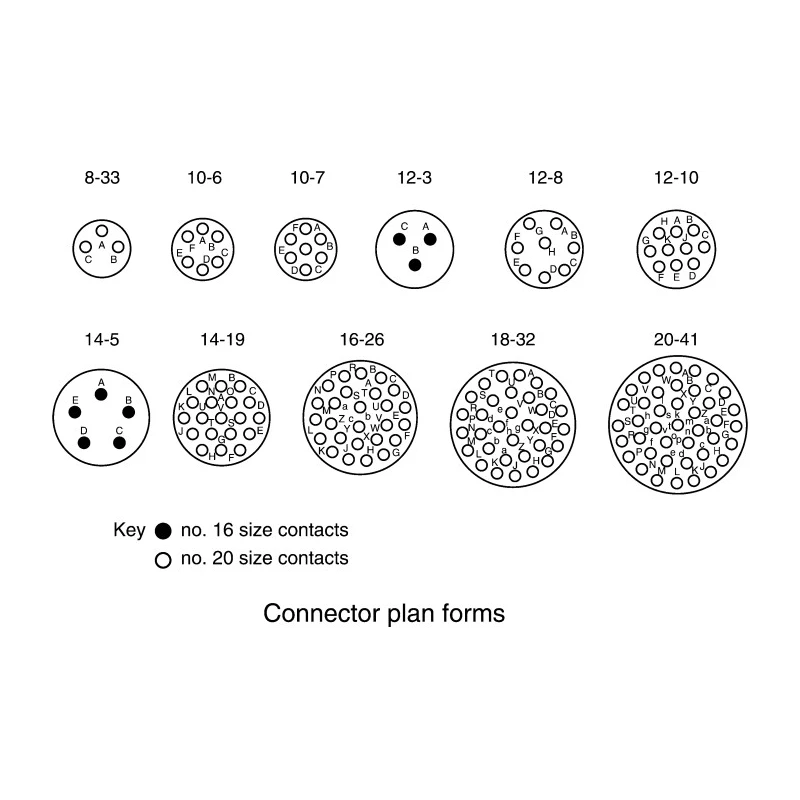

| Insert Arrangement | 12-10 |
Key Features
- This miniature connector features a robust bayonet locking system for secure attachment.
- The connector is made from solid aluminium with a zinc cobalt plating for corrosion resistance.
- It accommodates 10 female contacts plated with gold ensuring reliable signal transmission.
- Rated for voltages of 500 and 700 V AC and operates within a temperature range of -55°C to 125°C.
- The box-mounted design supports easy installation and maintenance.
- Polychloroprene rubber inserts provide environmental sealing for harsh conditions.
- The connector complies with the MIL-DTL-26482 military standard ensuring performance reliability.
- Its olive drab finish enhances durability and resists wear in demanding environments.
Product Description
Amphenol Limited 62GB-12E12-10SN MIL Spec Circular Connector is a 10 Way Box Mount female connector designed to meet stringent MIL-DTL-26482 military standards. Built with a miniature size 12 shell, this straight orientation connector is constructed from solid aluminium with a zinc cobalt olive drab plating, providing exceptional corrosion resistance and mechanical durability for heavy-duty applications.
The 62GB-12E12-10SN features a bayonet locking system to ensure a positive and secure connection, preventing accidental disconnection during operation. It includes 10 gold-plated female contacts made of copper tin material, delivering excellent conductivity and durability. The connector incorporates polychloroprene rubber inserts which contribute to environmental sealing, protecting the connector from moisture, dust, and other contaminants when mated.
This connector is rated for operation between -55°C and 125°C, making it suitable for use in extreme temperature environments encountered in military, aerospace, and industrial applications. The voltage rating is 500 to 700 V AC, supporting a wide range of electrical requirements. The box mount design allows for easy panel installation and secure chassis integration.
The 62GB series connectors are valued for their durability, secure mating mechanism, and resistance to harsh environmental conditions. Their keyed design helps prevent mis-mating, thus ensuring reliable system performance. This product is manufactured in India, maintaining high quality and compliance with environmental and military standards.
Durable miniature 10 way circular connector with bayonet locking system. Constructed from solid aluminium shell with corrosion-resistant zinc cobalt plating. Gold-plated copper tin female contacts for optimal signal quality and longevity.
Environmentally sealed with polychloroprene rubber inserts for harsh conditions. Wide operating temperature range from -55°C to 125°C. Complies with MIL-DTL-26482 military specification for reliability. Box mount design for secure panel installation.
Voltage rating of 500 to 700 V AC suitable for various industrial and military applications.
For professionals requiring rugged and reliable connectors in defense, aerospace, and industrial machine controls, the Amphenol Limited 62GB-12E12-10SN offers a trusted solution. Explore the broader range of Mil Spec Circular Connectors at EnvMart for complementary products and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector is rated for voltages of 500 and 700 V AC.
It operates within a temperature range of -55°C to 125°C.
This connector features 10 female contacts.
The connector is made from solid aluminium with a zinc cobalt plating, and the contacts are made of copper tin with gold plating.

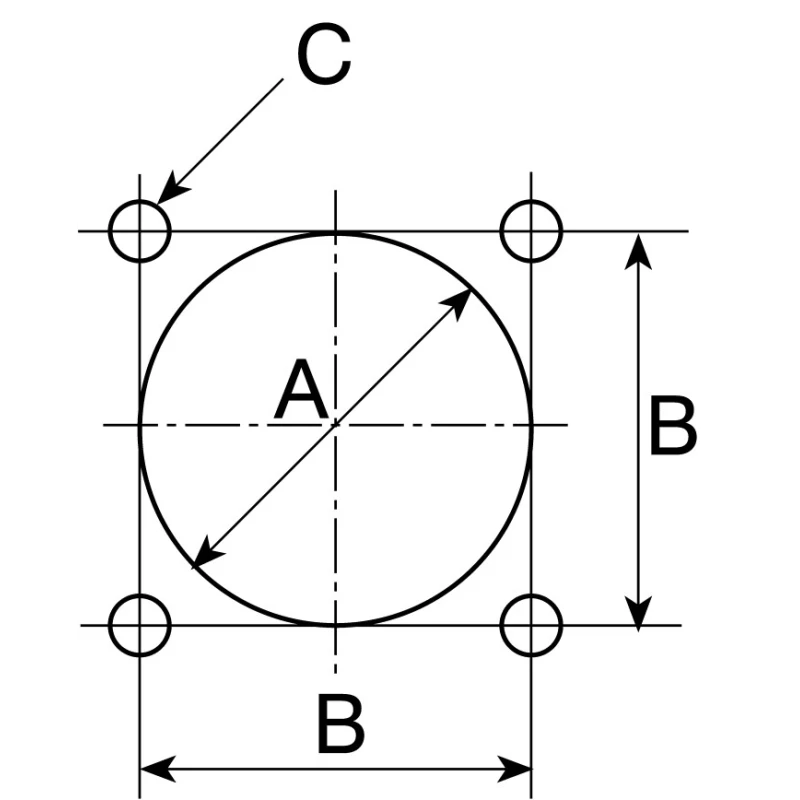

It supports a box mount design for easy installation.
It features a bayonet locking system that ensures a secure connection.
Yes, it complies with the MIL-DTL-26482 military standard.
The maximum contact resistance is 5 mΩ.
The connector has an olive drab finish.
It uses a solder termination type.
The shell size of this connector is size 12.
This connector is manufactured in India.
