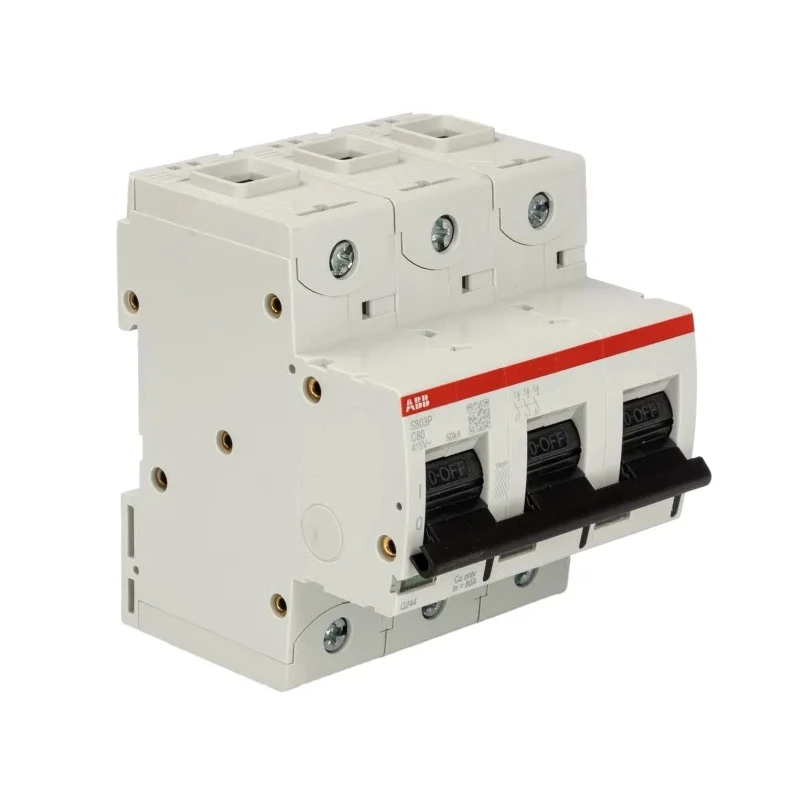

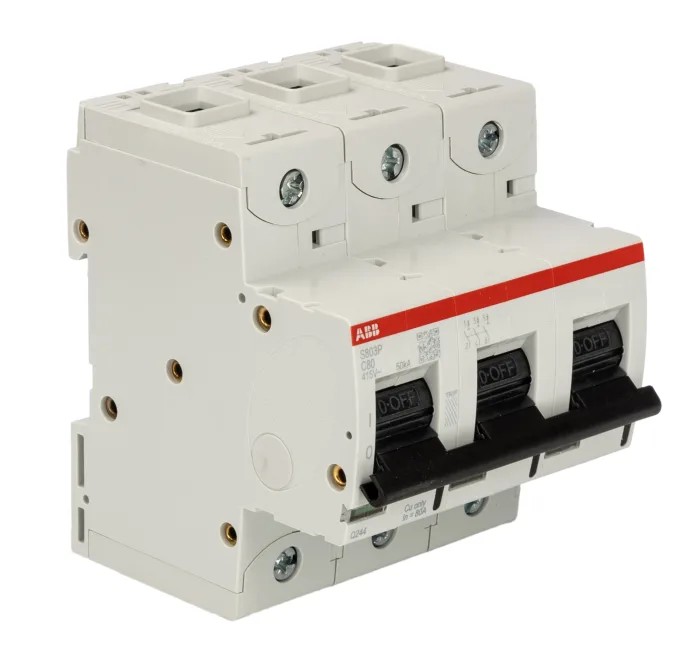

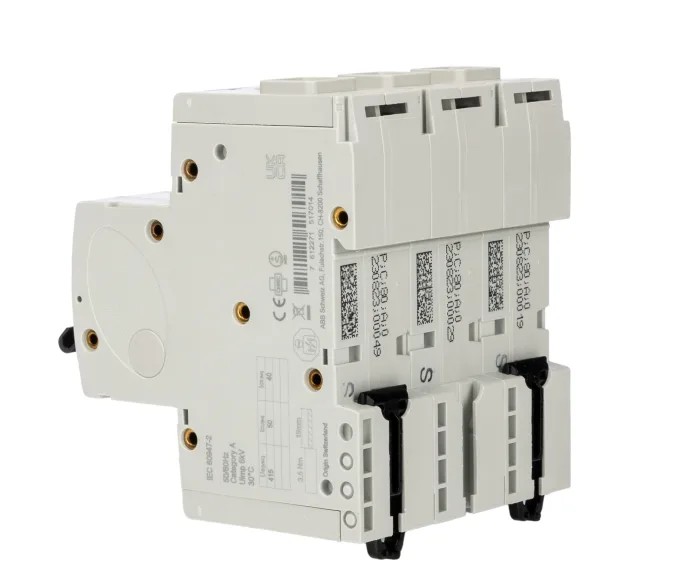

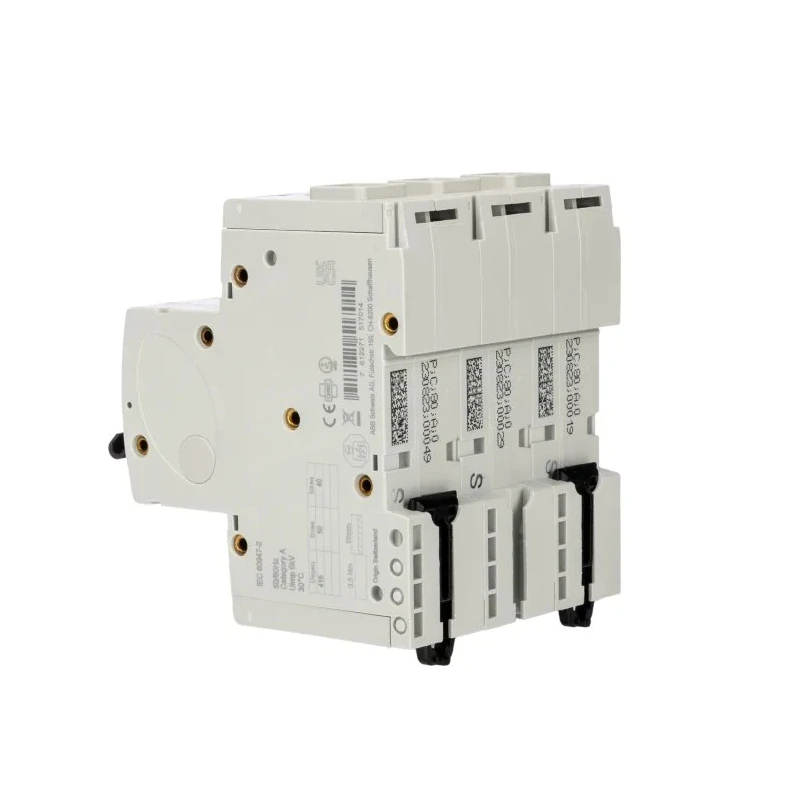

ABB High Performance S800S Miniature Circuit Breaker, 3-Pole, 80A, Type C Tripping, 690V AC, 250V DC, 50kA 2CCG001232R0001

ABB 2CCG001232R0001 is a High Performance S800S Miniature Circuit Breaker designed for reliable protection of industrial and commercial electrical installations. Rated at 80A current capacity, this 3-pole circuit breaker provides effective management and isolation of electrical faults with its Type C tripping characteristic.

Designed to operate at rated voltages of up to 690V AC and 250V DC, it ensures compatibility with a wide range of electrical systems both in AC and DC environments. The circuit breaker features a robust breaking capacity of 50kA, enabling it to safely interrupt high fault currents and protect connected equipment from damage.

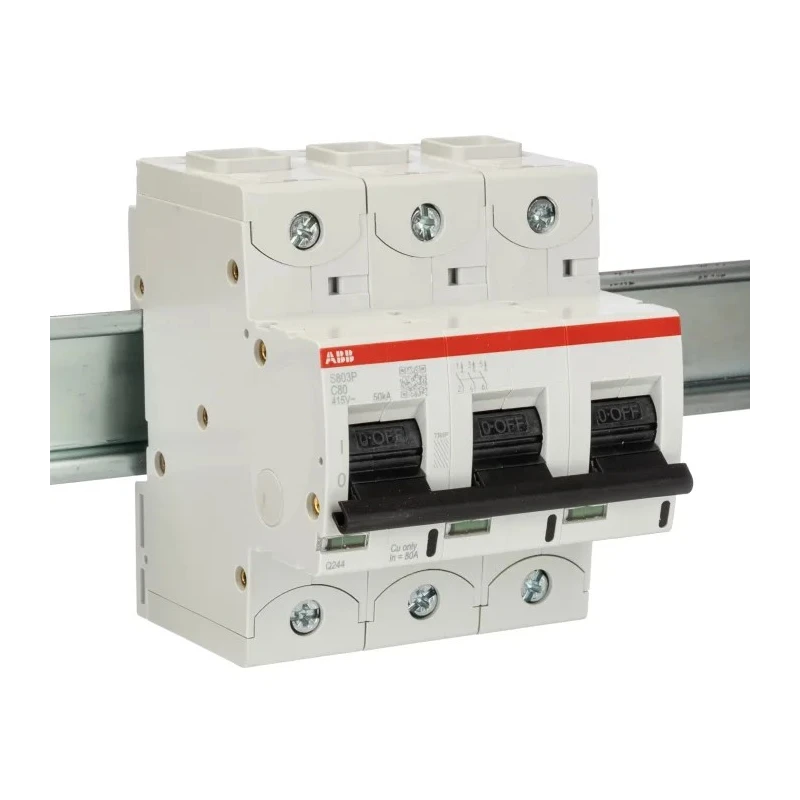

The tripping mechanism combines electromagnetic and thermomagnetic operation, providing swift response to overloads and short-circuit conditions. The device is intended for mounting on standard DIN rails, facilitating quick and secure installation in electrical panels. With an IP20 rating, the terminal protection minimizes accidental contact with live parts, enhancing safety during installation and operation.

Its compact dimensions (95mm height, 80mm width, and 88.5mm depth) make it suitable for installations where space efficiency is important. Compliance with IEC/EN 60898-1 and IEC/EN 60947-2 standards ensures that this circuit breaker meets stringent international safety and performance requirements.

Typical applications include protection of industrial machinery, commercial electrical equipment, and multi-circuit electrical distribution systems requiring robust and reliable tripping performance. The 3-pole configuration allows managing several circuits simultaneously with consistent safety and operational reliability.

Rated for 80A continuous current handling. Type C tripping characteristic suited for moderate inrush current. High breaking capacity of 50kA to handle fault conditions. Electromagnetic and thermomagnetic tripping mechanism for overload and short-circuit protection.

DIN rail mounting compatibility for standardized installations. IP20 terminal protection for enhanced safety during handling. Compliant with IEC/EN 60898-1 and IEC/EN 60947-2 standards.

The ABB S800S Series MCB 2CCG001232R0001 combines Swiss engineering quality and advanced electrical protection features to ensure the safety and reliability of critical electrical circuits in demanding industrial and commercial applications. Browse other ABB products and circuit breakers on EnvMart for your electrical system needs.
