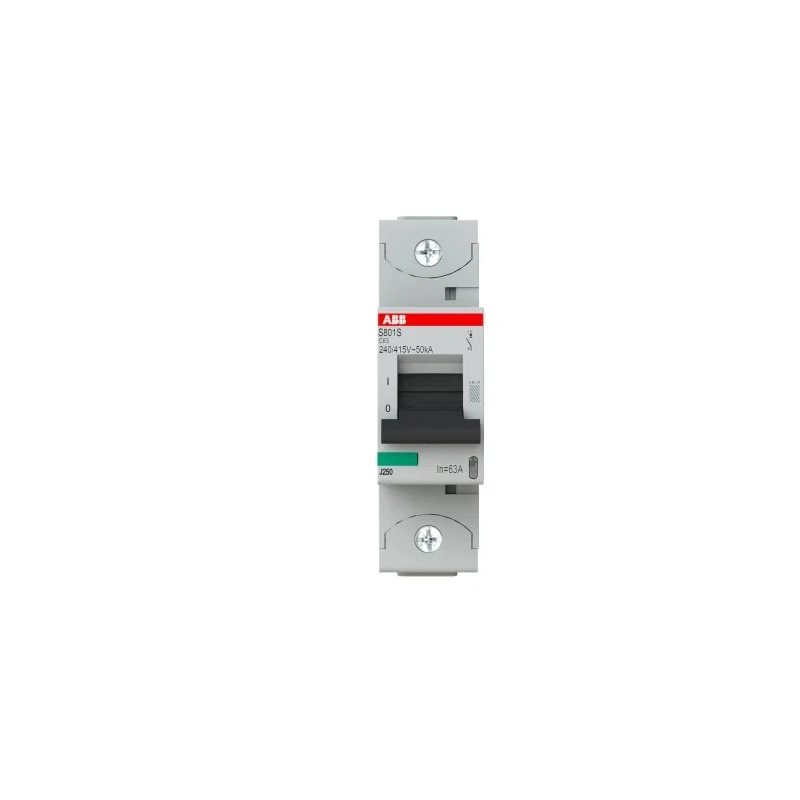

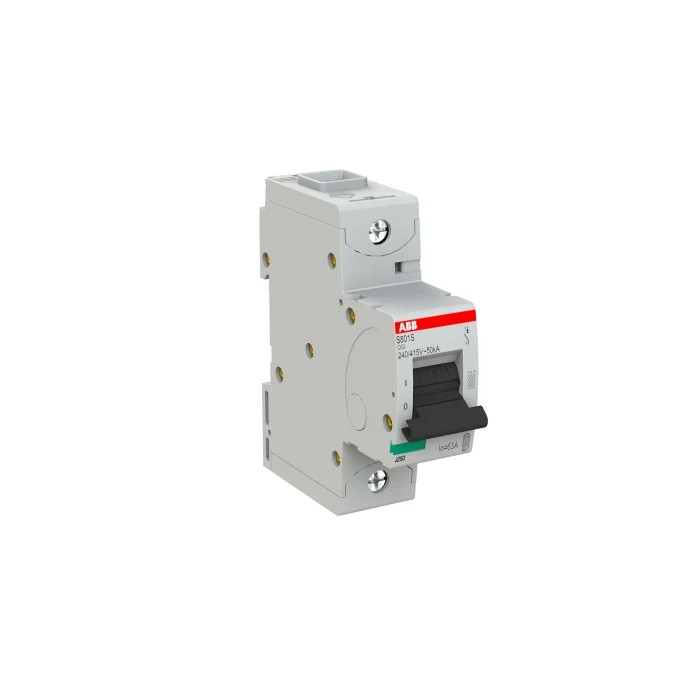

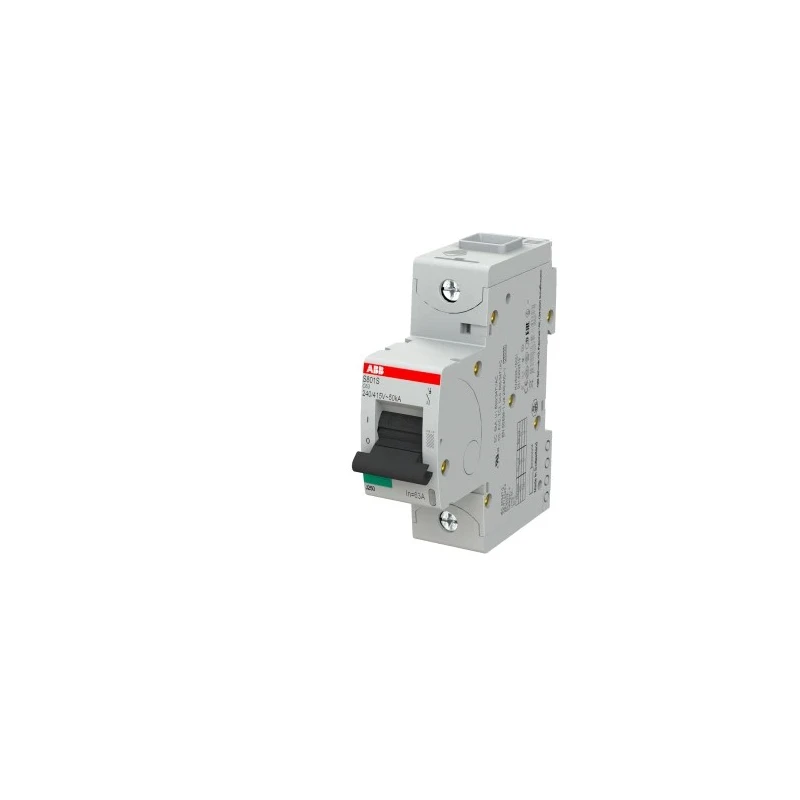

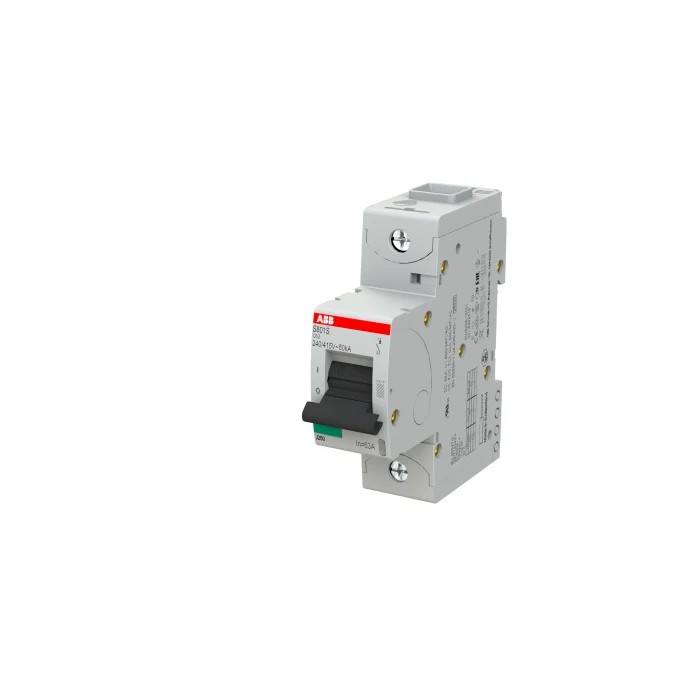

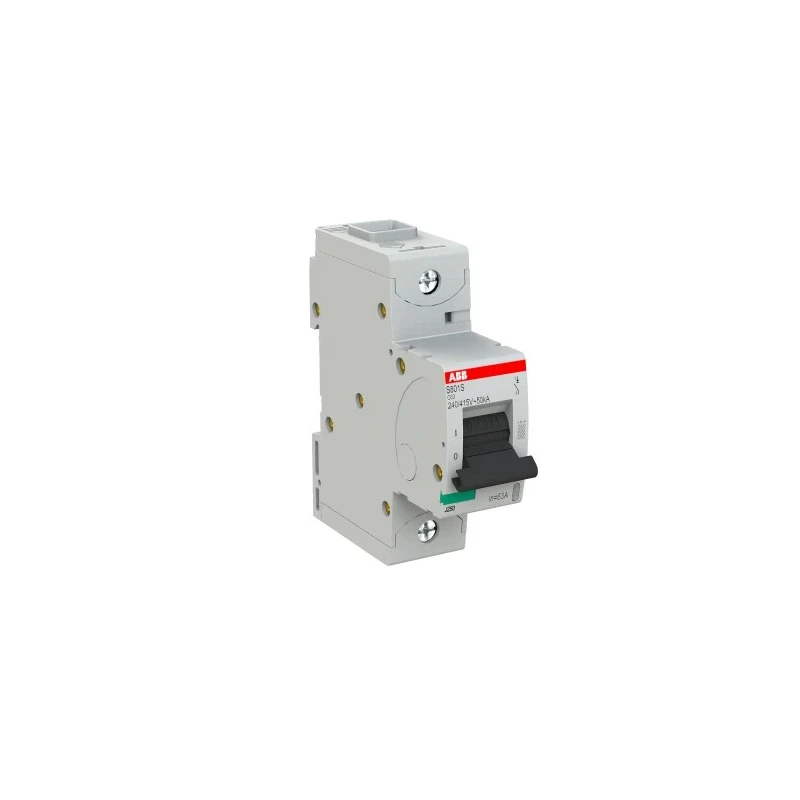

ABB High Performance S800S Miniature Circuit Breaker, 1-Pole, 63A, Type C, 690V AC, 250V DC, 50kA 2CCS861001R0634 S801S-C63

ABB's 2CCS861001R0634 S801S-C63 is a high-performance S800S series miniature circuit breaker engineered for effective overcurrent protection in electrical installations. This 1-pole MCB is rated for a current of 63A with Type C tripping characteristics, making it suitable for applications requiring fast and reliable short circuit interruption.

Designed for both AC and DC applications, it supports up to 690V AC and 250V DC voltages respectively, providing versatility for industrial, commercial, and residential electrical systems. The device features a breaking capacity of 50kA, ensuring it can safely interrupt fault currents and protect electrical circuits against damage.

The MCB incorporates a thermal and electromagnetic tripping mechanism that safeguards circuits from overloads and short circuits. Its compact design with a width of 27mm and depth of 82.5mm allows easy mounting on DIN rails, supported by screw terminal connections that ensure secure and durable electrical contacts.

This Miniature Circuit Breaker maintains operational reliability within a temperature range from -25°C to +60°C under an IP20 enclosure rating, offering protection against accidental contact with live parts. It fully meets IEC/EN 60947-2 and IEC/EN 60898-1 international standards for circuit protection devices.

Typical applications include protection of industrial machinery, electrical panels in commercial installations, and residential circuit safeguarding for lighting and power outlets. The device's compact footprint and high breaking capacity make it suitable for installations where space is limited but high safety is demanded.

The Type C characteristic offers superior protection against short circuits in resistive and inductive loads. Thermal trip provides overload protection for extended faults. Screw terminal type ensures firm and reliable electrical connectivity.

Durable toggle switch actuator allows for manual operation and resetting. Industrial and residential circuit protection compatible. Meets stringent international IEC and EN standards for circuit breakers.

Environmentally robust and reliable, this ABB S800S series MCB is a trusted solution for enhancing electrical safety in a diverse range of electrical systems. It is manufactured in Switzerland, reflecting ABB's commitment to quality and engineering excellence.
