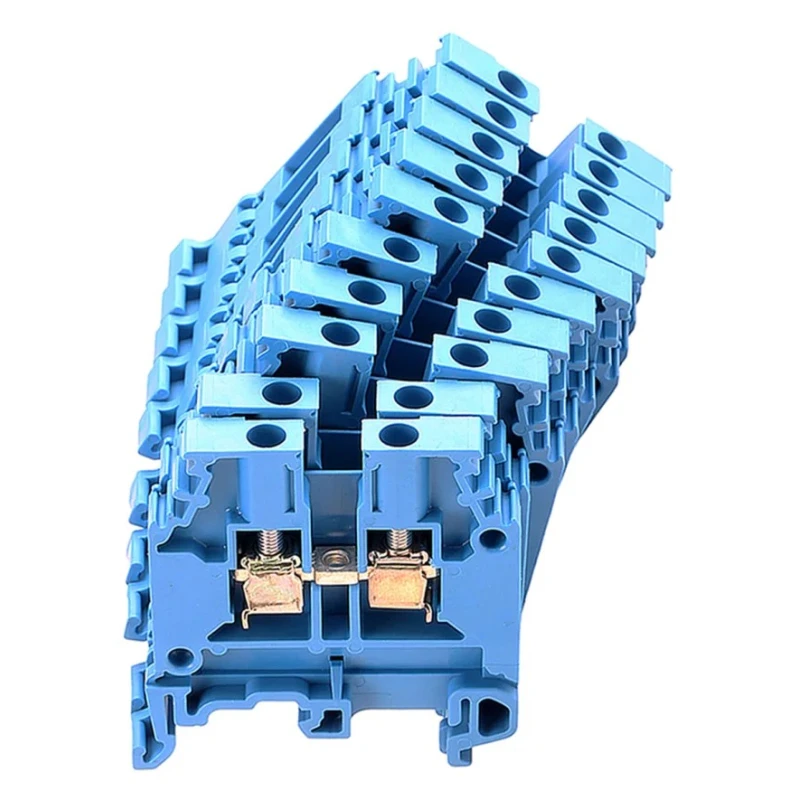

Entrelec SNA Series DIN Rail Terminal Block Blue, 4mm² Cable CSA, 1-Level, Screw Termination 1SNA125116R0100

Entrelec 1SNA125116R0100 DIN Rail Terminal Block is a standardized electrical connector designed for secure wire connection in industrial and electrical control panel applications. This blue-colored, single-level feed-through terminal block supports cable sizes with a cross-sectional area of 4mm² and wire sizes ranging from AWG22 up to AWG10. It offers screw-type termination ensuring a robust and stable connection.

Manufactured from tough, flame-resistant polyamide 6.6, this terminal block maintains integrity under an operating temperature range of -5°C to 40°C, making it reliable for typical industrial environments. Its 6mm pitch is compatible with both asymmetric 'G' profile and top hat style DIN rails, providing versatility in mounting.

The terminal block is rated to handle a maximum current of 32 amps and withstands voltages up to 1kV AC. Hardened captive screws prevent damage during tightening, facilitating maintenance and installation efficiency. This product is an essential component within industrial control, power distribution, and electrical panel assembly tasks.

While there are no specific hazardous area certifications listed, the terminal block meets general safety and operational standards expected in industrial electrical components. It is part of the SNA series known for professional-grade DIN rail terminals with screw, spring, or stud connection types designed for diverse electrical applications.

This terminal block supports a maximum current of 32A and voltage rating of 1kV AC. The pitch of the terminal block is 6mm, ensuring compatibility with standard DIN rails. Constructed with a flame-resistant polyamide 6.6 body for durability and safety.

Operating temperature ranges from -5°C minimum to 40°C maximum. Suitable for use on both asymmetric 'G' profile and top hat profile DIN rails. Features hardened captive terminal screws to prevent burring and facilitate easy installation.

Compatible with wire sizes from AWG22 to AWG10 to accommodate various cable requirements. Provides reliable electrical connection through screw-type termination. Complies with professional industrial standards though no specific hazardous area or approvals are indicated.

This Entrelec DIN rail terminal block is commonly used in industrial automation, control panels, electrical distribution systems, manufacturing machinery, and building installations. It provides a reliable interface for connecting electrical circuits with secure mechanical and electrical connections.
