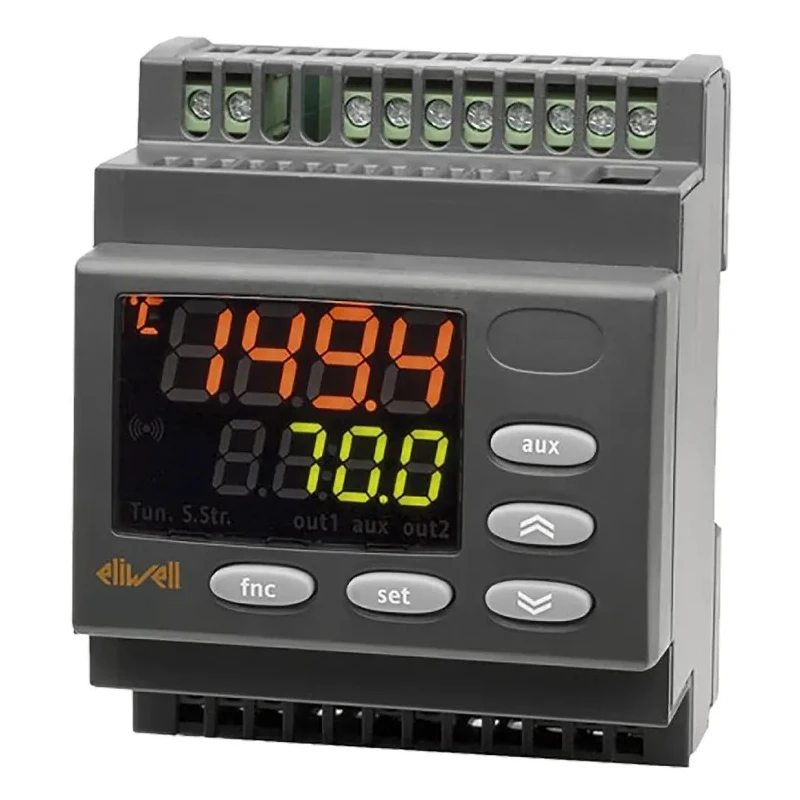

Eliwell DIN Rail On-Off Temperature Controller 240V AC, K Type Thermocouple Input DR4010 PTC+PTC

Free Delivery in India | Lowest Global Shipping Charges

Eliwell DIN Rail On-Off Temperature Controller 240V AC, K Type Thermocouple Input DR4010 PTC+PTC

Name: Eliwell DIN Rail On-Off Temperature Controller 240V AC, K Type Thermocouple Input DR4010 PTC+PTC
Brand: Eliwell
SKU: 137036
Price: 204.36 USD
Availability: InStock



Category Temperature Controllers Brand Eliwell Condition New

Specifications

Country of Origin	Italy
Brand	Eliwell
Length	7mm
Model	DR4010 PTC+PTC
Width	85mm
Mount Type	DIN Rail
Series	DR 4010 PTC
Input Type	K Type Thermocouple
Maximum Operating Temperature	55°C
Control Type	On-Off Temperature Controller
Minimum Operating Temperature	-5°C
Terminal type	Screw
Maximum Supply Voltage	240V ac
Panel Depth	61mm

Key Features

Features double 4-digit display for clear temperature readings.
Employs PTC input with screw terminal connections for reliable wiring.
Equipped with a large 4-digit display for easy monitoring.
Capable of transferring parameters via COPYCARD technology.
Designed for DIN Rail mounting with compact plastic module casing.
Operates with a maximum supply voltage of 240V AC.
Supports temperature control range from -5°C to 55°C.
Provides protection against probe failure to ensure operational safety.

Product Description

Eliwell DR4010 PTC+PTC is an on-off temperature controller designed for DIN Rail mounting, providing accurate temperature control in industrial environments. It supports input from K type thermocouples, delivering precise measurements across a temperature range of -5°C to 55°C.

This temperature controller features a large, clear double 4-digit display which enhances readability and monitoring accuracy. The device comes housed in a compact 4-DIN plastic casing optimized for DIN Rail installation, making it suitable for dense electric panels and automation setups.

Connectivity is ensured through screw terminals that provide secure and stable wiring. The controller includes a COPYCARD functionality, allowing easy parameter transfer and configuration, improving installation efficiency.

The DR4010 operates at a maximum supply voltage of 240V AC and incorporates safety features such as probe failure protection, preventing erroneous readings and potential damage. Its robust design and operational features make it well suited for use in industrial automation, HVAC systems, manufacturing processes, and other applications requiring reliable temperature regulation.

Double 4-digit display for clear temperature visualization. K Type thermocouple input for precise temperature measurement. DIN Rail mounting with compact 4-DIN plastic module casing. Parameter transfer via COPYCARD to facilitate setup.

Screw terminals ensure secure electrical connections. Operating temperature range from -5°C to 55°C supports diverse applications. Maximum supply voltage of 240V AC for integration with AC power systems. Protection feature in case of probe failure to ensure safe operation.

This model is manufactured in Italy and is compliant with industrial requirements. The Eliwell DR4010 PTC+PTC temperature controller is a dependable choice for precise on-off temperature control in varied industrial and process control scenarios. Explore more temperature control devices and automation solutions in the EnvMart catalog.
