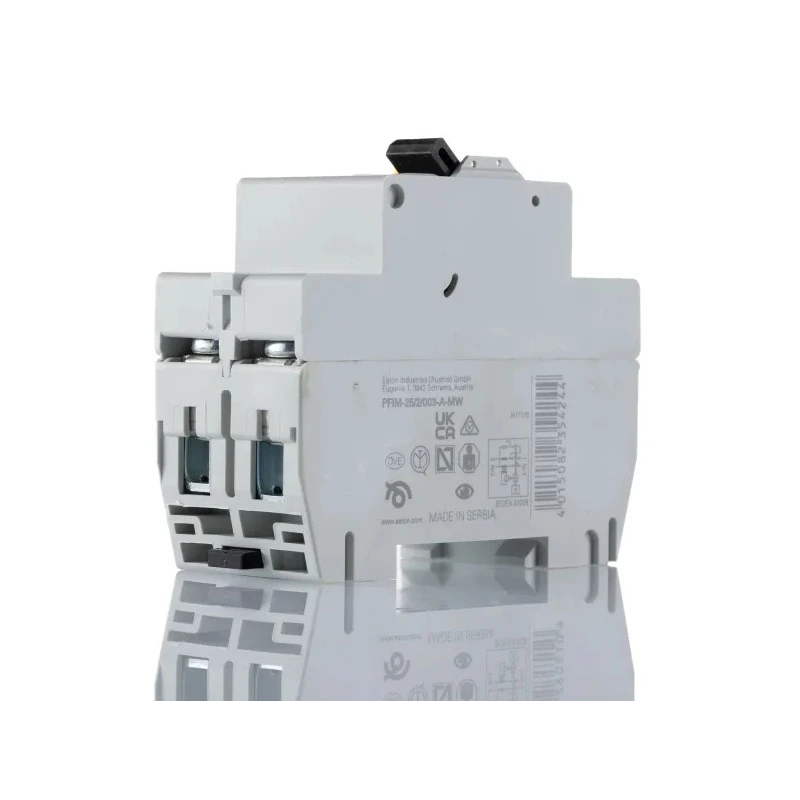

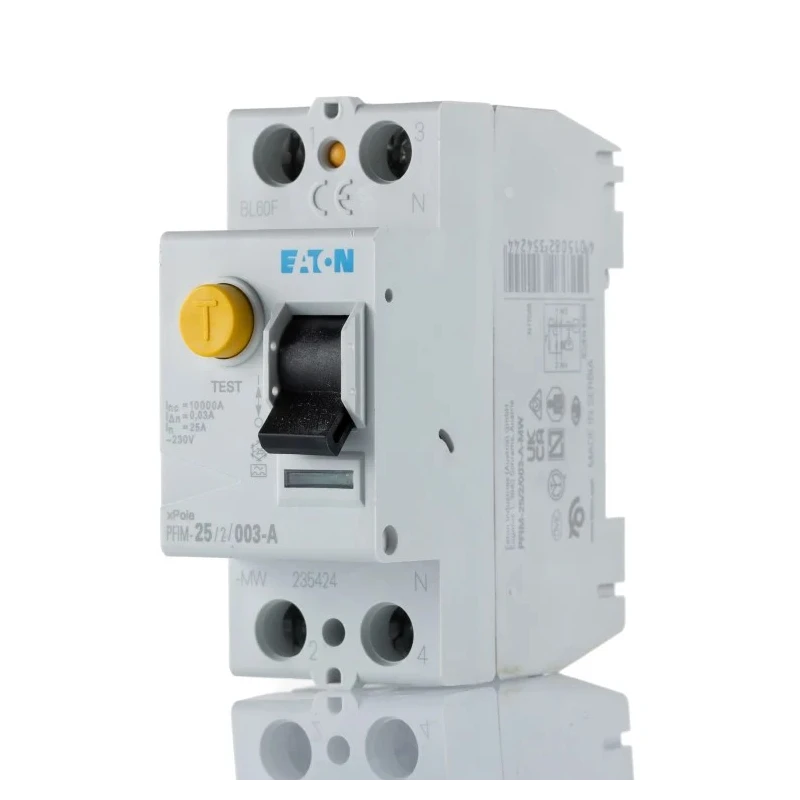

Eaton PFIM Series Residual Current Device 25A, 2-Pole, 30 mA Trip Sensitivity, Type A, 10 kA 235424 PFIM-25/2/003-A-MW

Free Delivery in India | Lowest Global Shipping Charges

Eaton PFIM Series Residual Current Device 25A, 2-Pole, 30 mA Trip Sensitivity, Type A, 10 kA 235424 PFIM-25/2/003-A-MW

Name: Eaton PFIM Series Residual Current Device 25A, 2-Pole, 30 mA Trip Sensitivity, Type A, 10 kA 235424 PFIM-25/2/003-A-MW
Brand: Eaton
SKU: 136836
Price: 245.8 USD
Availability: InStock



Category Residual Current Device Brand Eaton Condition New

Specifications

Country of Origin	India
Range	PFIM
Brand	Eaton
Height	80mm
Model	235424 PFIM-25/2/003-A-MW
Depth	70.5mm
Width	70mm
Mount Type	DIN Rail
Current Rating	25A
Series	PFIM
Terminal type	Screw
Breaking Capacity	10kA
Number of Poles	2
Standards/Approvals	IEC/EN 61008
Rated AC Voltage	230, 400V
Tripping Characteristics	Type A
Tripping Mechanism	Electromagnetic
Reset Actuator Type	Toggle Switch
Trip Sensitivity	30mA
Break Time	Instantaneous

Key Features

Type A tripping characteristics ensure protection against AC and pulsating DC residual currents.
10 kA breaking capacity provides robust circuit interruption capability.
Mounts easily on DIN rail for swift installation.
Screw terminal connections secure wiring against vibrations and accidental disconnection.
Operating voltage up to 230V and 400V compatible with industrial and commercial installations.
Compact dimensions of 80mm height, 70mm width, and 70.5mm depth facilitate space-saving panel design.
Equipped with toggle switch for clear contact position indication and easy reset.
Complies with IEC/EN 61008 standard, ensuring high safety and quality levels.

Product Description

Eaton 235424 PFIM-25/2/003-A-MW Residual Current Device is designed for industrial, commercial, and domestic electrical safety applications, delivering reliable protection by detecting leakage currents to prevent electric shocks.

This 25A, 2-pole RCD features Type A tripping characteristics suitable for AC and pulsating DC residual currents with a sensitive trip threshold of 30 mA, making it effective for workplace safety.

The device supports rated AC voltages of 230V and 400V, and has a high breaking capacity of 10 kA, ensuring robust circuit interruption under fault conditions. Its electromagnetic tripping mechanism guarantees instantaneous response to dangerous residual currents.

The RCD mounts on standard DIN rails, enabling quick tool-free installation in densely packed electrical panels. Screw-type terminals provide secure and vibration-resistant wiring connections, minimizing accidental disconnections. The toggle switch actuator clearly indicates the contact position and allows easy manual reset after a trip.

Compliance with IEC/EN 61008 international electrical safety standards assures product reliability and quality. The slim footprint, measuring 80mm in height, 70mm in width, and 70.5mm in depth, fits compactly to save panel space.

Operating temperature range from -25°C to +55°C allows dependable performance in varied environments. Eaton's PFIM series RCD enhances workplace electrical protection by reducing the risk of electric shock and fire hazards associated with residual current faults.

Type A tripping characteristic ensures safety against AC and pulsating DC residual currents. 30 mA trip sensitivity protects users from serious electric shocks. High breaking capacity of 10 kA meets stringent safety requirements.

Screw terminal design prevents wiring disconnections from vibrations. DIN rail mount allows quick and tool-free installation. Compact size enables installation in space-constrained panels. Toggle switch actuator gives clear operational status indication.

Certified to IEC/EN 61008 for compliance and quality assurance. Wide operating temperature range for challenging industrial conditions.

This Eaton PFIM Residual Current Device is ideal for industrial, commercial, and domestic electrical protection applications. Explore more quality circuit protection products and Eaton solutions on EnvMart.
